Scrub System, Cylindrical 69Service Manual – SC3000
Removal and Installation

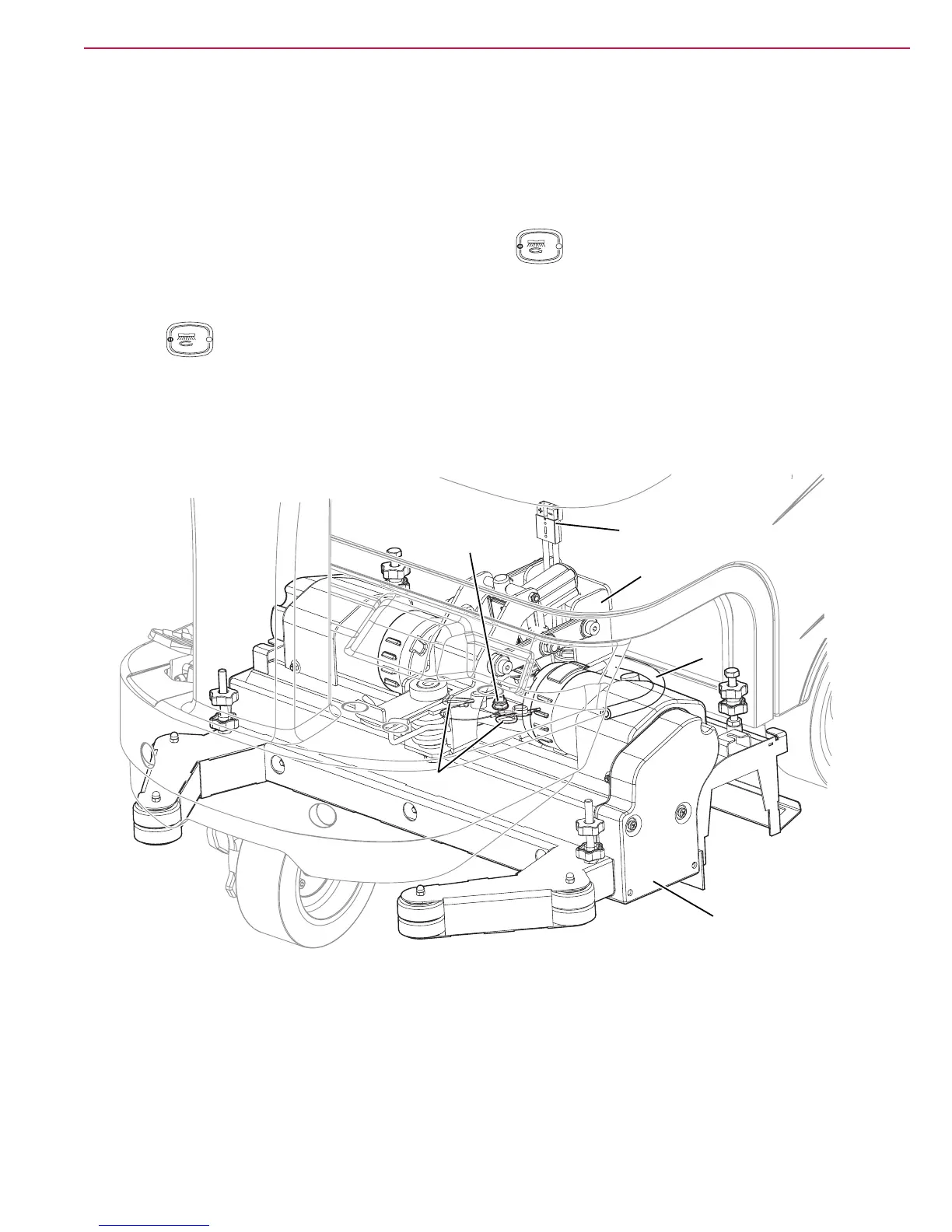

Removing and Installing the Brush Deck
Disassembly
1. Drive the machine on a level oor or on a
hoisting system to facilitate the disassembly
procedures.
2. Remove the side skirt assemblies, the cylindrical
brushes and debris container.
3. Turn the ignition key to “I”, lower the cylindrical
brush deck by pressing the scrub On/Off push
button and then turn the ignition key to
“0”.
4. Disconnect the red connector (A).
5. Disconnect the solution hose union (B).
6. Remove the safety pins (C).
7. Unscrew the mounting nut (D) and recover the
washer.
8. Turn the ignition key to “I”, lift the deck holder
(E) by pressing the scrub On/Off push button
and then turn the ignition key to “0”.
9. Turn the steering wheel all the way to the left to
remove the cylindrical brush deck.
10. With a second operator who helps to keep
the deck holder (E) further lifted, remove the
cylindrical brush deck (F).
Assembly
11. Assemble the components in the reverse order of
disassembly.
F
C
D
A
E
B
P100467
To Next Page
