Driving Wheel System 117Service Manual – SC3000

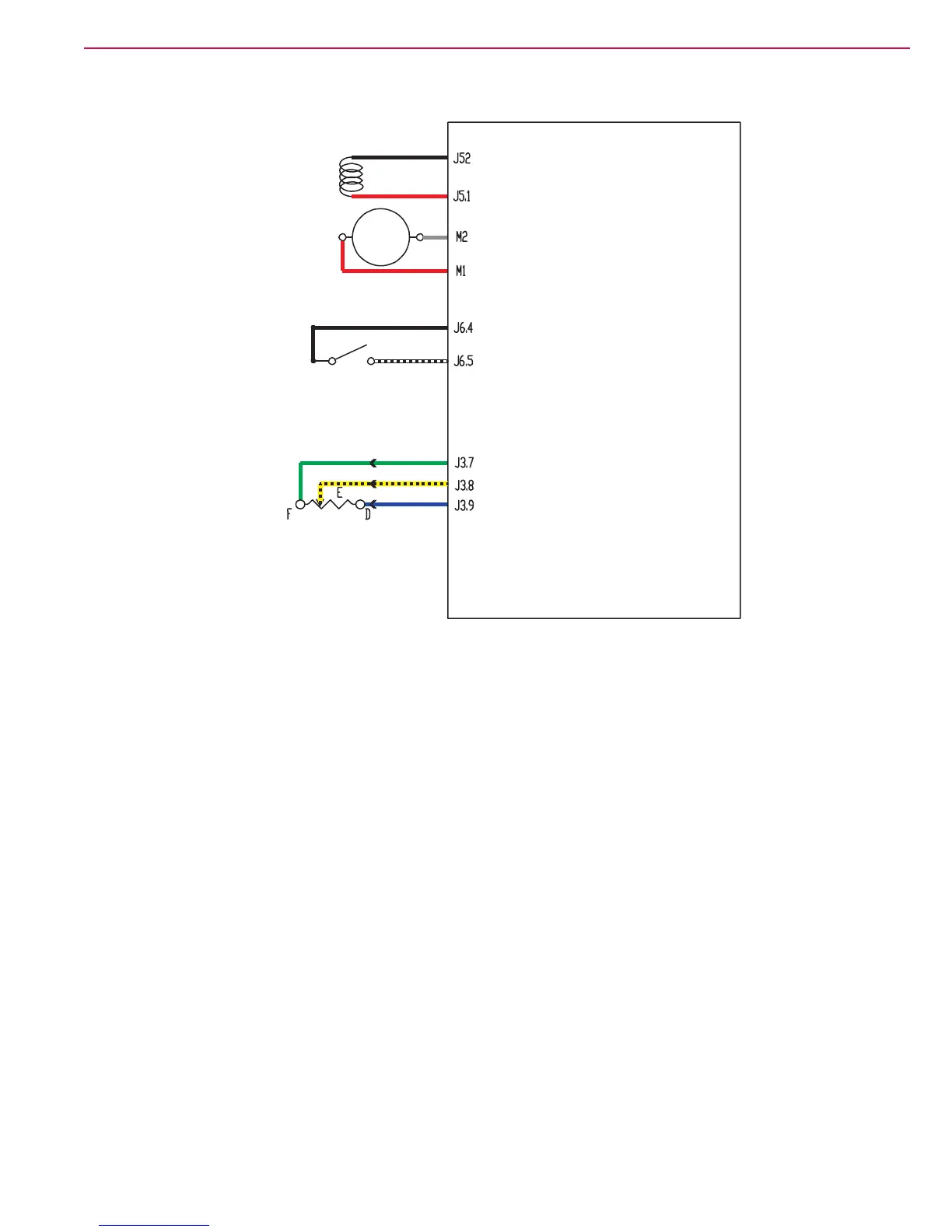

Wiring Diagram
Driving wheel brake power supply -
Driving wheel brake power supply +
Drive system motor -
Drive system motor +
Lamp / seat microswitch / float power supply -
Return from driver’s seat microswitch
Pedal potentiometer power supply + 5V
Pedal potentiometer return -
Pedal potentiometer power supply - 0V
Function
electronic
board (EB1)
Drive
system
motor (M3)
Electromagnetic
brake (BRK)
Drive pedal
potentiometer
(RV1)
Driver's seat
microswitch
(SW1)
P100585
To Next Page
