Control System 35Service Manual – SC3000
Display Electronic Board and Dashboard Electronic Board Replacement (continued)

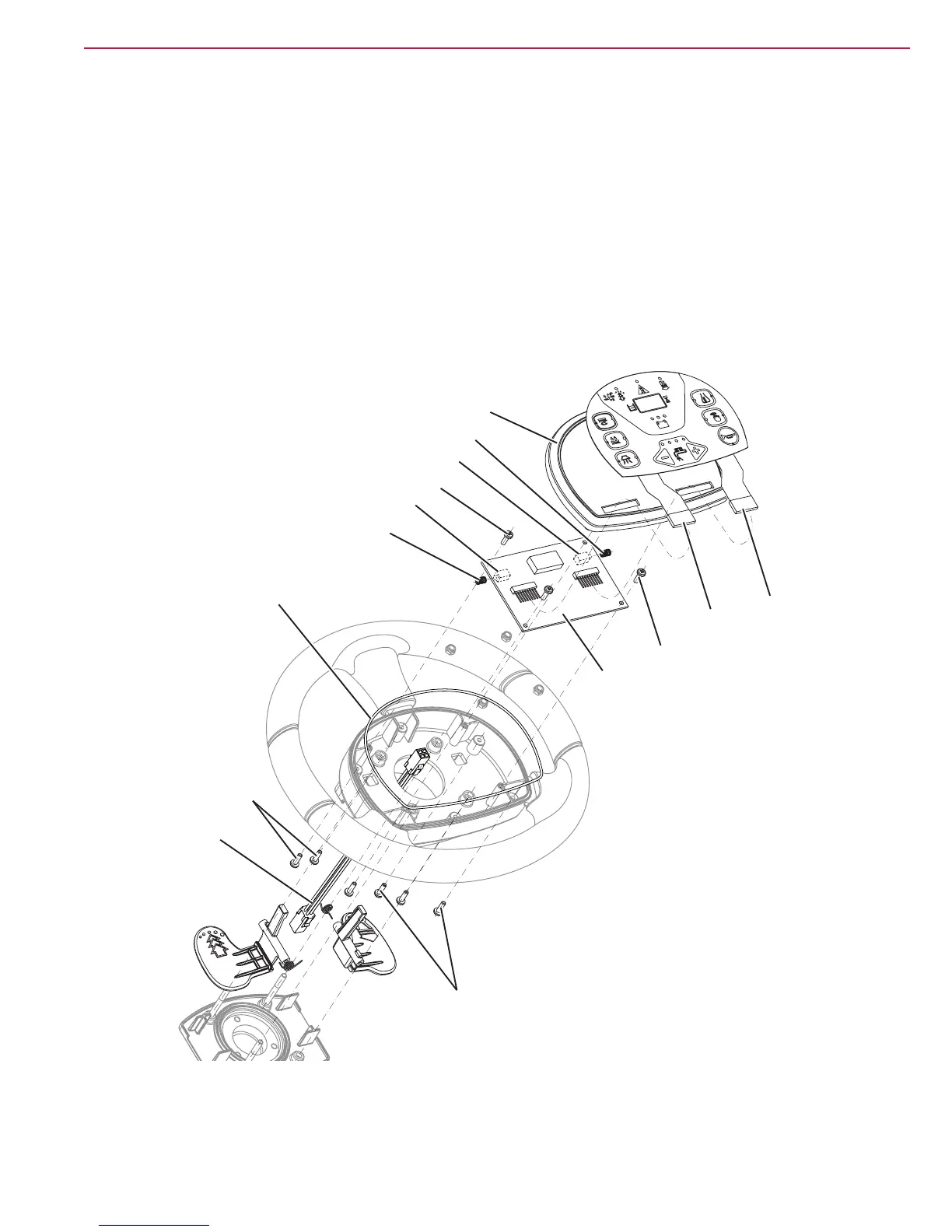

Dashboard Electronic Board Disassembly
7. Perform steps 1 to 5 of the Display Electronic Board Disassembly.
8. Carefully lift and remove the dashboard electronic board (H) from the cover (C).
Assembly
9. Assemble the components in the reverse order of disassembly and note the following:
◦ Install the display electronic board (G) and check the proper operation of springs (J), microswitches
(K) and levers (L and M).
◦ Install the dashboard electronic board (H) by carefully attaching it to the cover and paying attention
to the routing of the at connections (E) and (F) in the cover slots (C).
A
C
G
J
K
K
J
I
D
B
B
E
I
F
P100398
