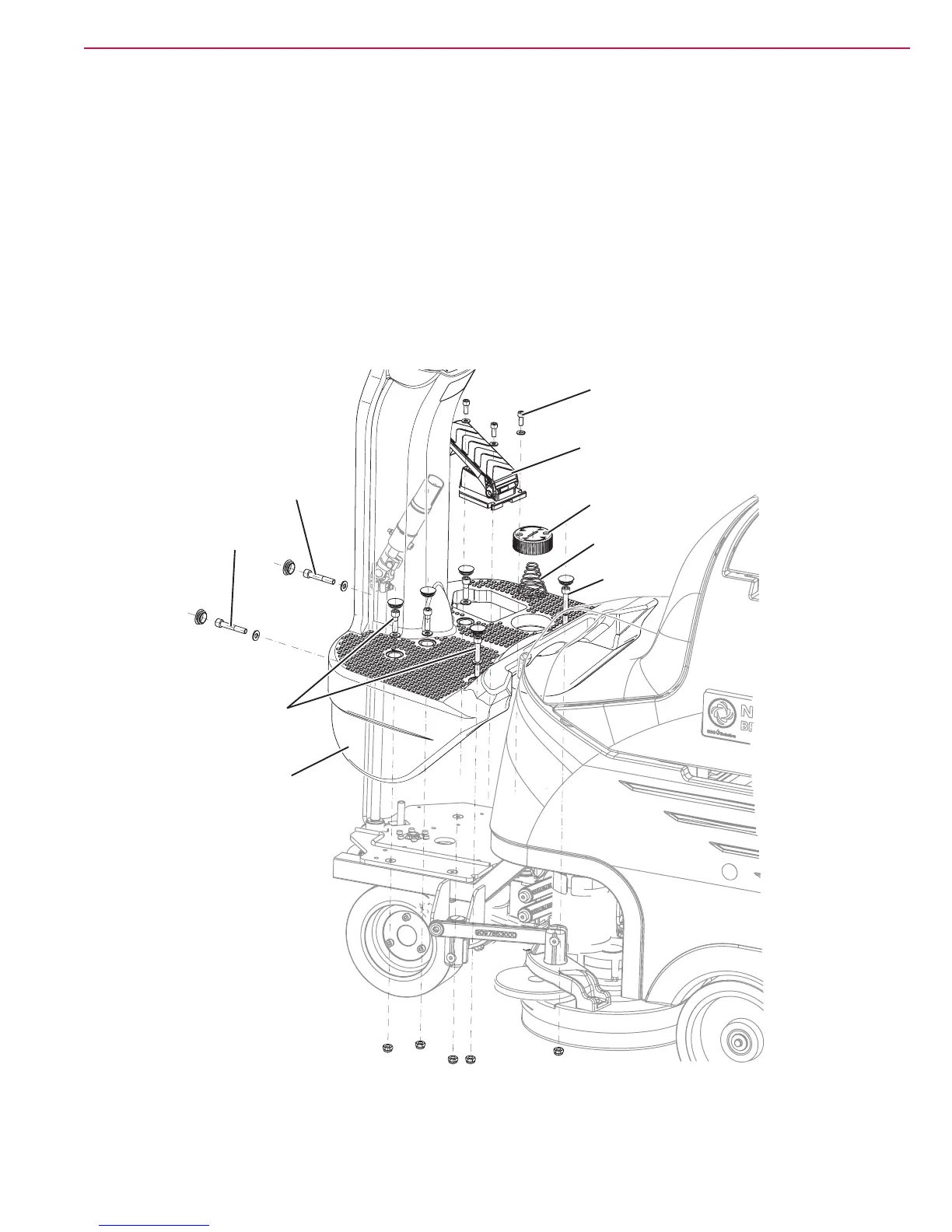

Front Fairing Disassembly/Assembly (continued)
8. Remove the screws (G), recover the washers, disconnect the wiring harness and then remove the drive
pedal (H).
9. Remove the adjustable heel support (I) and recover the spring (J).
10. Remove the caps, the screws (K) on the machine front and recover the washers.
11. Remove the caps, the screws (L) on the machine foot board and recover the washers and the nuts.
12. Carefully remove the front fairing (M).
Assembly
13. Assemble the components in the reverse order of disassembly.
