Driving Wheel System 124Service Manual – SC3000
Drive System Motor Disassembly/Assembly
Disassembly
1. Drivethemachineonaleveloor.
2. Turn the ignition key to “0” and disconnect the batteries.

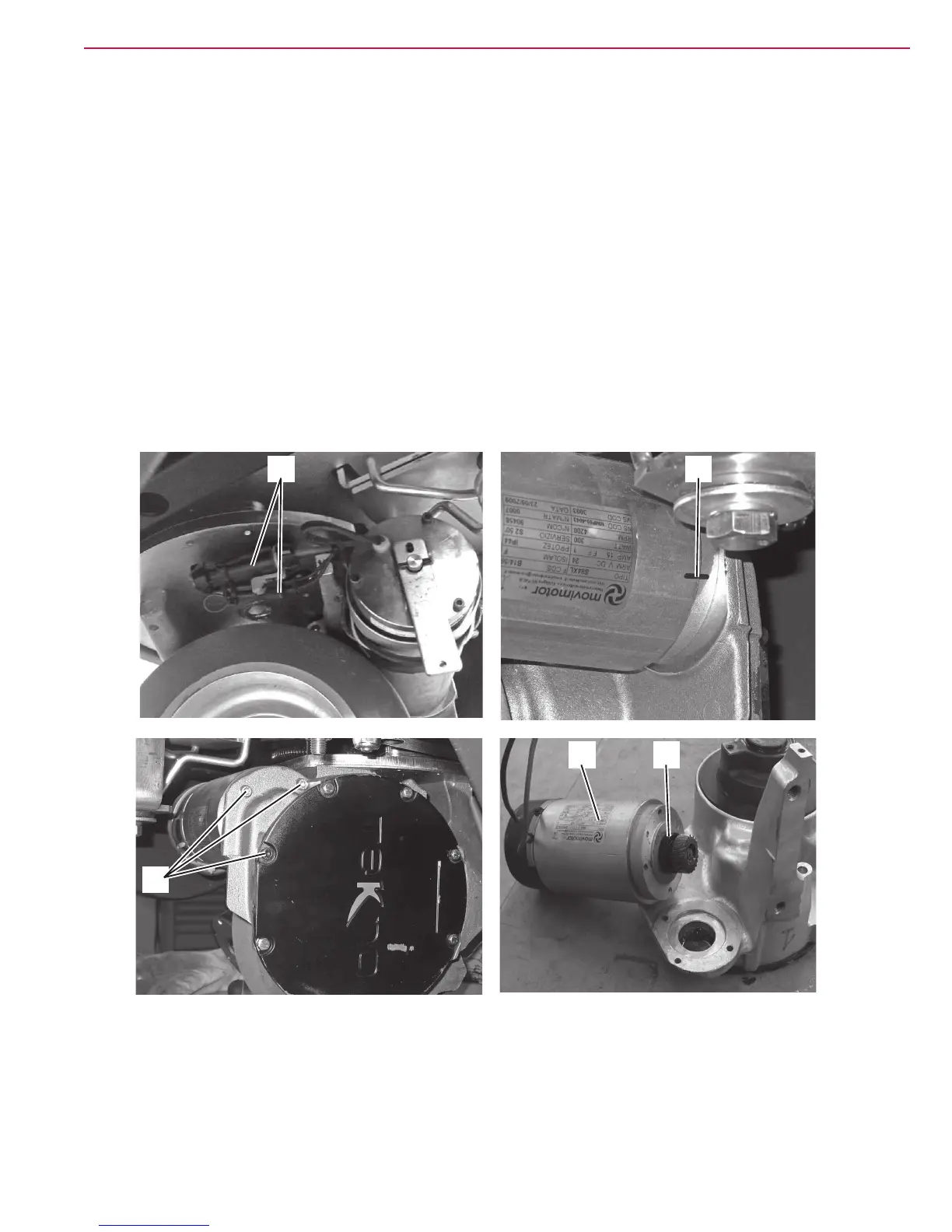

3. Under the driving wheel assembly, disconnect the drive system motor and electromagnetic brake
connections (A).
4. Remove the electromagnetic brake (see the procedure in the relevant paragraph).
5. Remove the driving wheel assembly (see the procedure in the relevant paragraph).
6. At the workbench, with indelible pen (B) mark the installation position of the motor on the gear box.
7. Remove the screws (C) and carefully remove the drive system motor (D).
8. Check the oil seal gasket (E) for wear. In case of oil leaks between the drive system motor and the gear
box, replace the oil seal according to the following procedure.
A B
C
D E
P100391
