Recovery System 60Service Manual – SC3000

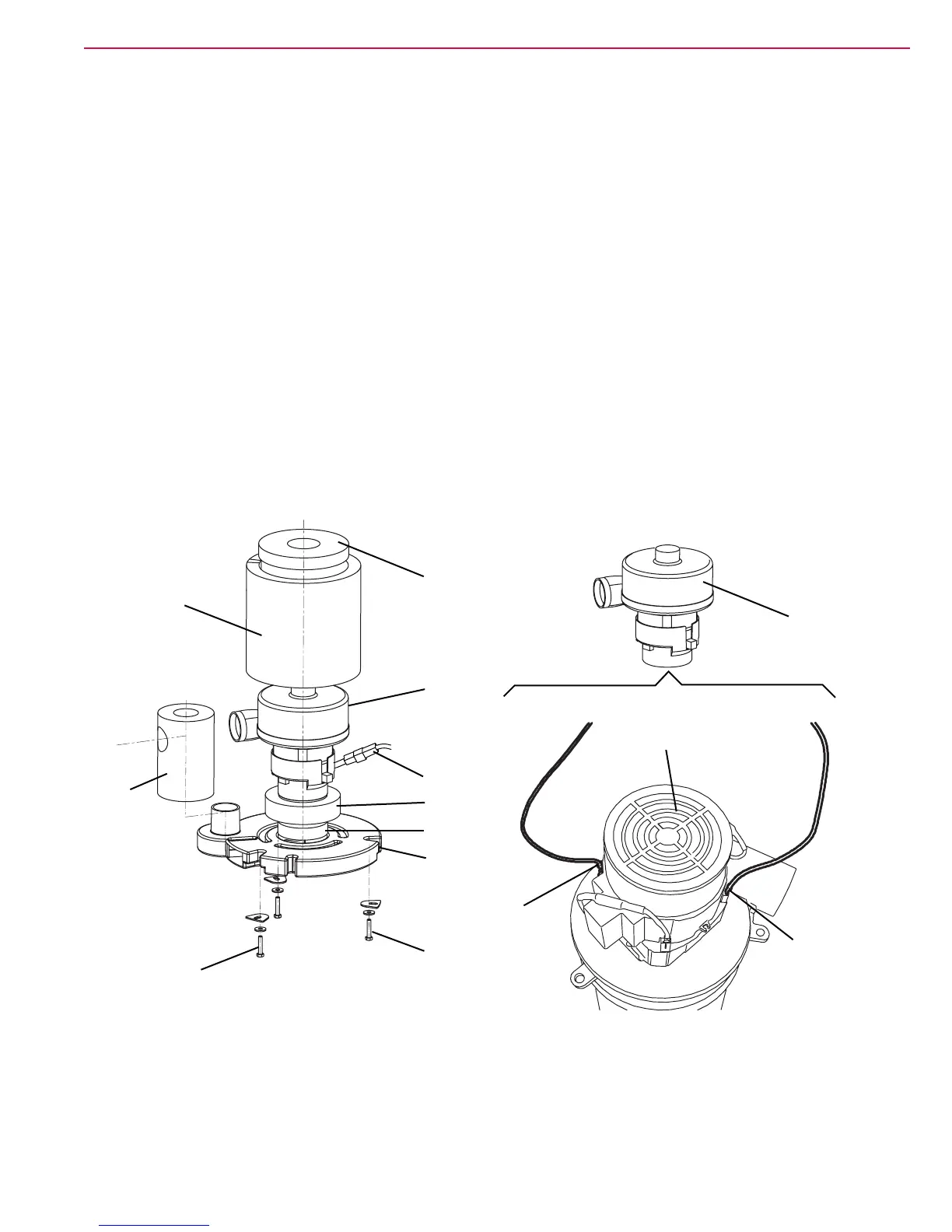

Vacuum System Motor Disassembly/Assembly
Disassembly
1. If there is recovery water in the tank, drain it.
2. Turn the ignition key to “0” and disconnect the batteries.
3. Lift the recovery tank assembly.
4. Remove the screws (A) and recover the washers.
5. Remove the motor cover (B).
6. Remove the lter (C) and the gasket (D).
7. Remove the motor (E) or (L), the sound-deadening pipe (F) and the sound-deadening panel (G).
8. Disconnect the connector (H) of the motor (E).
9. Check the efciency of the gasket (I) and, if necessary, replace it.
Assembly
10. Assemble the components in the reverse order of disassembly.
L
K
J
I
E
H
G
F
A
A
B
C
D
L
P100562
