Scrub System, Cylindrical 77Service Manual – SC3000
Brush Deck Lifting/Lowering Actuator Disassembly/Assembly
Disassembly
1. Lower the brush deck.
2. Remove the cylindrical brush deck (see the procedure in “Cylindrical Brush Deck Disassembly/
Assembly” paragraph).
3. Turn the ignition key to “0” and disconnect the batteries.
4. Disconnect the actuator connector (see the function electronic board).

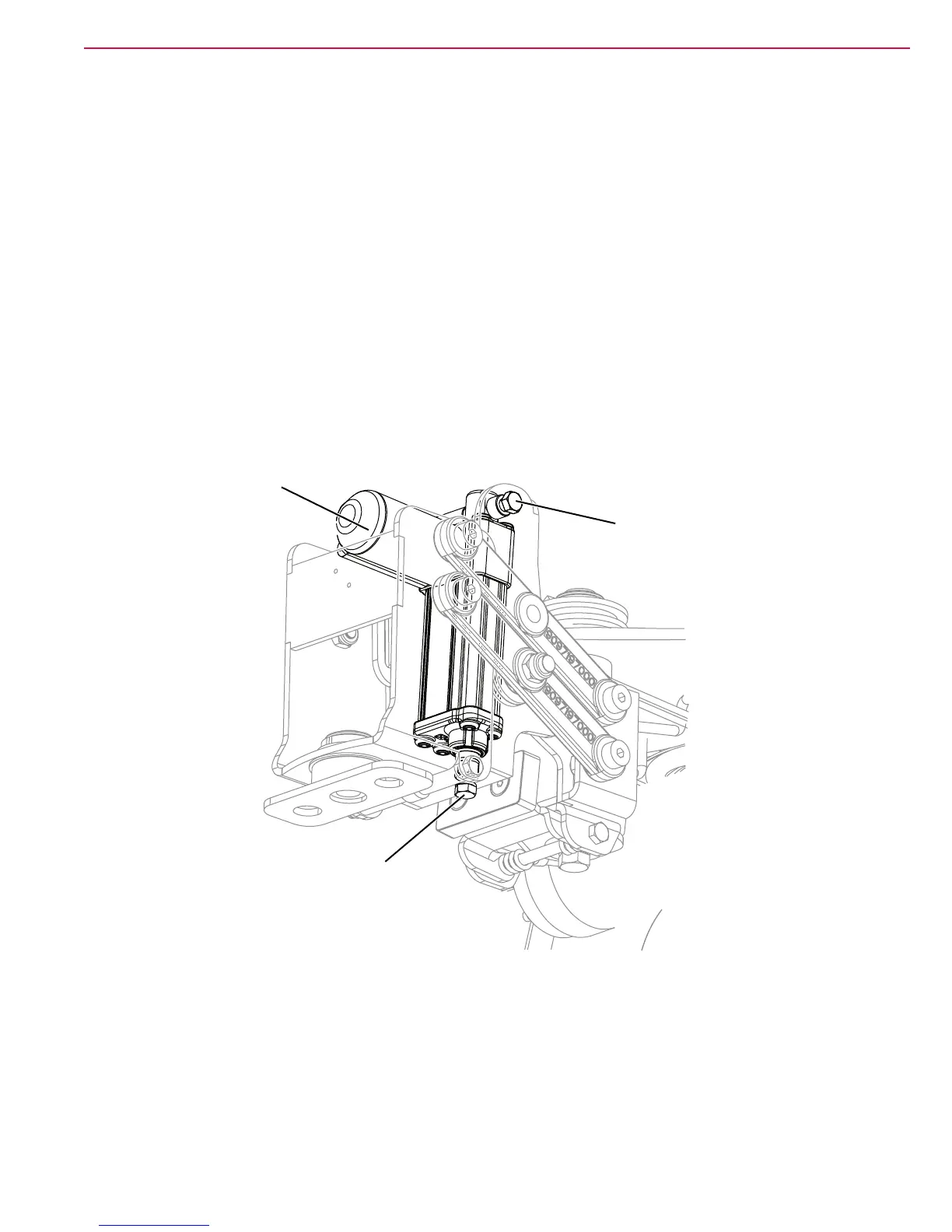

5. Remove the screw (A) and recover nuts, bushings and washers.
6. Remove the screw (B) and recover the washer.
7. Remove the actuator (C).
Assembly
8. Assemble the components in the reverse order of disassembly.
A
B
C
P100382
