Scrub System, Disc 91Service Manual – SC3000
Brush Deck Adjuster Spring Disassembly/Assembly
Disassembly
1. Drive the machine on a level oor.
2. Remove the brush deck.
3. Turn the ignition key to “0” and disconnect the batteries.
4. Remove the front fairing (see the procedure in “Front Fairing Disassembly/Assembly” paragraph,
Steering System section).

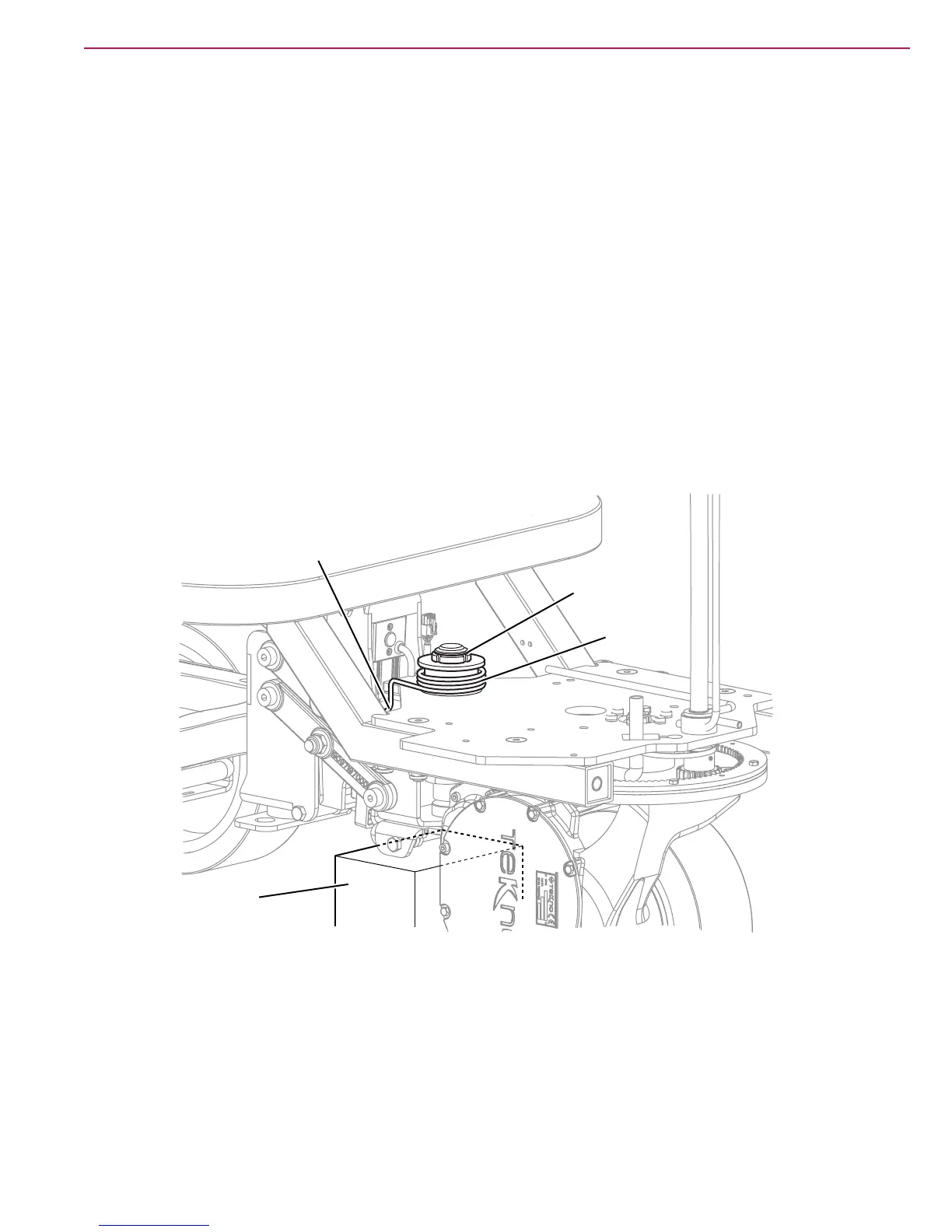

5. Place a wooden shim (A) under the deck holder assembly. Wooden shim thickness must be 160 mm.
6. Unscrew the ring nut (B), recover the washer, then carefully remove the spring (C).
7. If necessary, replace the spring taking care to properly place the elastic ends (D) on the frame.
Assembly
8. Assemble the components in the reverse order of disassembly, and note the following:
◦ Tighten the ring nut (B) so that the deck holder assembly can turn freely.
A
B
C
D
P100582
