Scub Sytem - Disc 47Service Manual – SC351
Brush Motor Disassembly/Assembly
Disassembly
1. Place the machine on a hoisting system (if
available), then lift it. Otherwise, drive the
machine on a level oor.
2. Make sure that the battery connector is
disconnected.

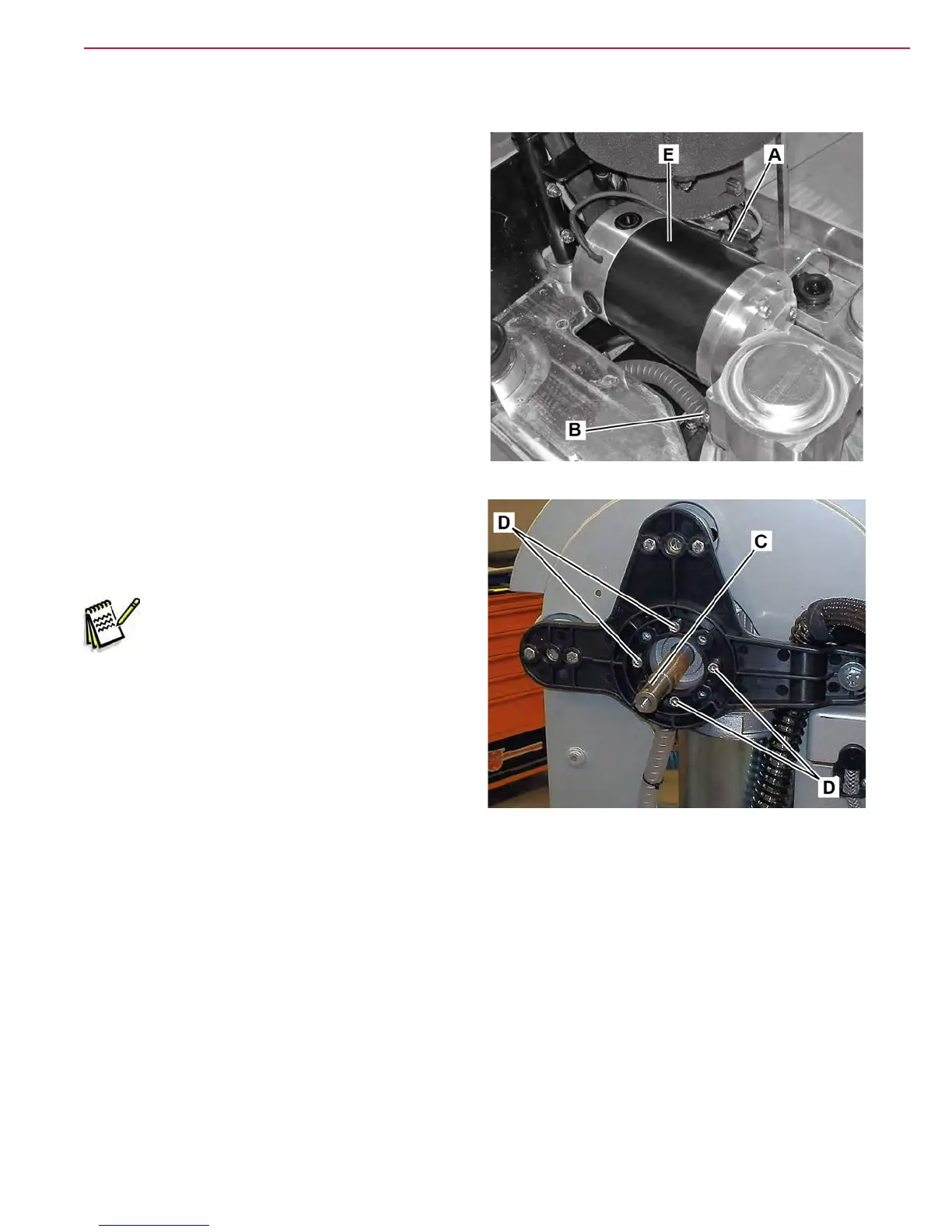

3. Disconnect the gearmotor connector (A) and the
detergent hose (B).
4. Lift the machine and remove the brush.
5. Disassemble the brush deck as shown by the
previous procedure.
6. Recover the key (C).
7. Remove the 4 screws (D).
8. Remove the gearmotor (E).
Assembly
9. Assemble the components in the reverse order of
disassembly.
Note: For further information on deck
components see the Spare Parts
List.
