39Service Manual – SC401, SCRUBTEC 344 04 - Control System - Battery
Main Machine Controller (EB1) (continues)

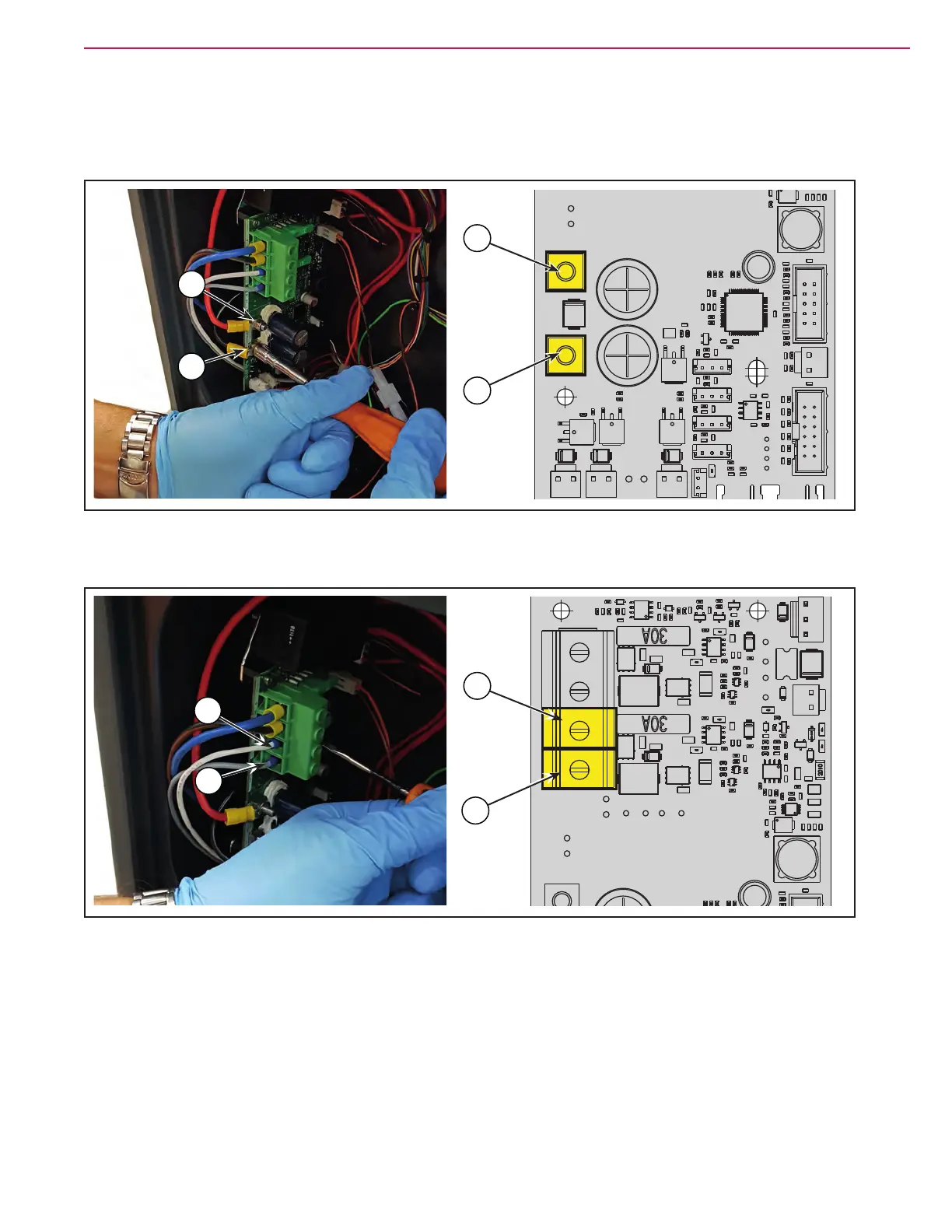

4. Disconnect the following connections:
◦ (C) and (D), main machine controller power supply connection (J106 B+) and (J107 B-).
Figure 10:
+
-
C
C
D
D
◦ (E) and (F) Vacuum motor connection (J403 OUT2).
Figure 11:
+
-
E
E
F
F
