40Service Manual – SC401, SCRUBTEC 344 04 - Control System - Battery
Main Machine Controller (EB1) (continues)

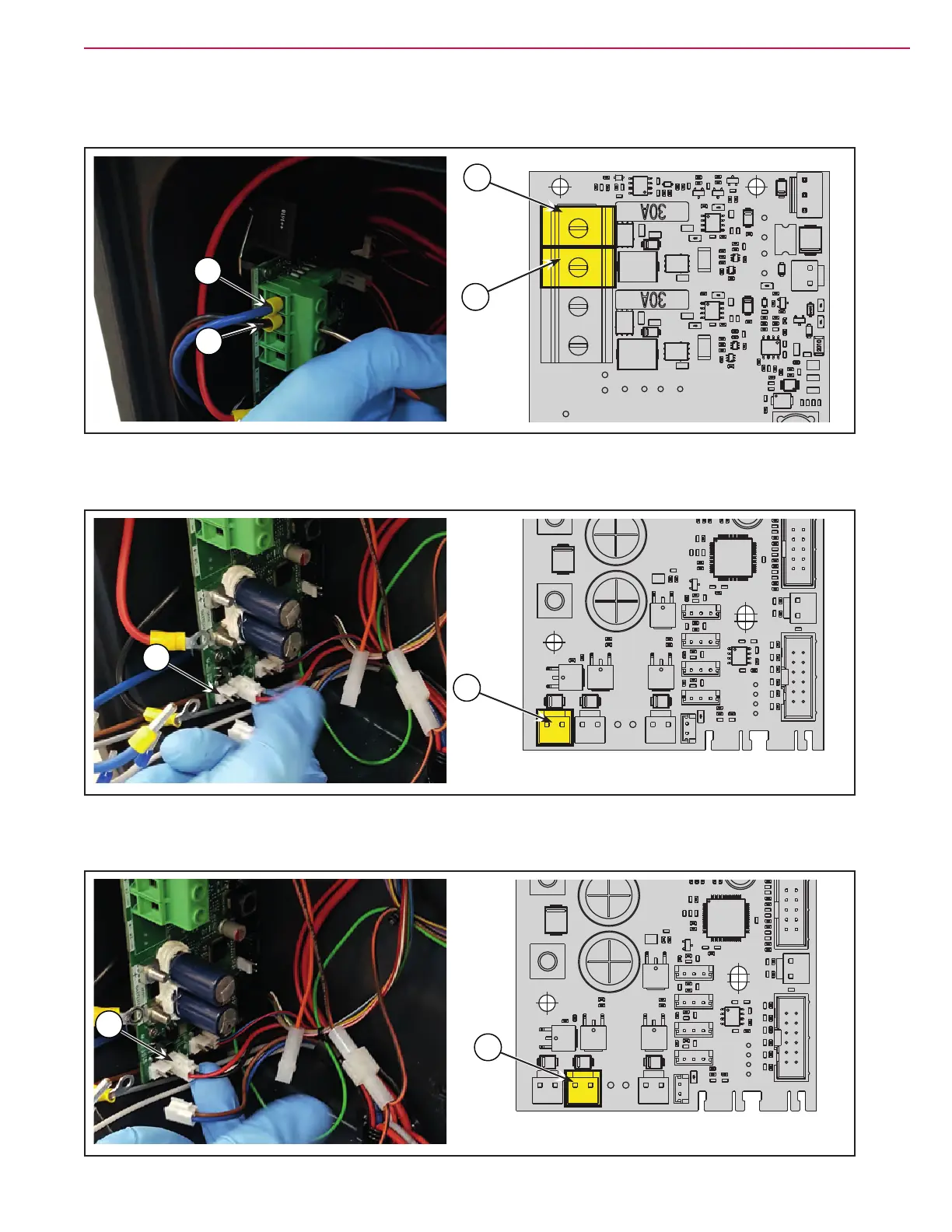

◦ (G) and (H) Brush motor connection (J303 OUT1).
Figure 12:
+
-
G
G
H
H
◦ (I) Solenoid valve connection (J601 AUX1).
Figure 13:
1 2
I
I
◦ (J) Detergent pump connection (J602 AUX2).
Figure 14:
1 2
J
J
