47Service Manual – SC401, SCRUBTEC 344 04 - Control System - Battery

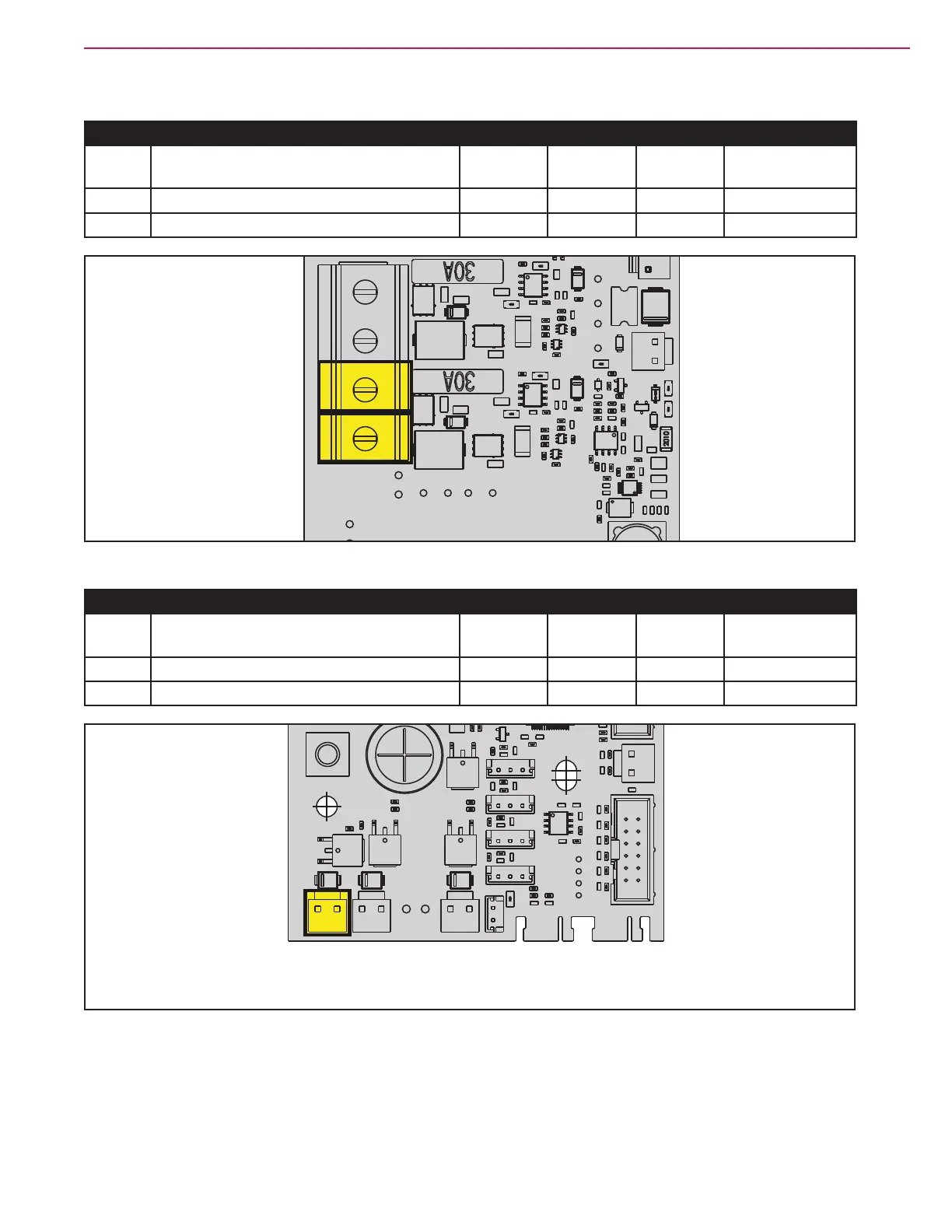

Main Machine Controller (EB1) Connectors (continues)
J403 OUT2: type FCI T702035100J0G (2 ways, screw type)
PIN Description
Controller
in/out
V ref. I max. Connected to
1 Vacuum output + Out 24V 15A M2+
2 Vacuum output - Out 0V 15A M2-
+
-
Figure 26:
J601 AUX1: type JST B2P-VH (2 ways, vertical)
PIN Description
Controller
in/out
V ref. I max. Connected to
1 Solenoid valve output + Out 24V 1A EV+
2 Solenoid valve output - Out 0V 1A EV-
1 2
Figure 27:
