48Service Manual – SC401, SCRUBTEC 344 04 - Control System - Battery

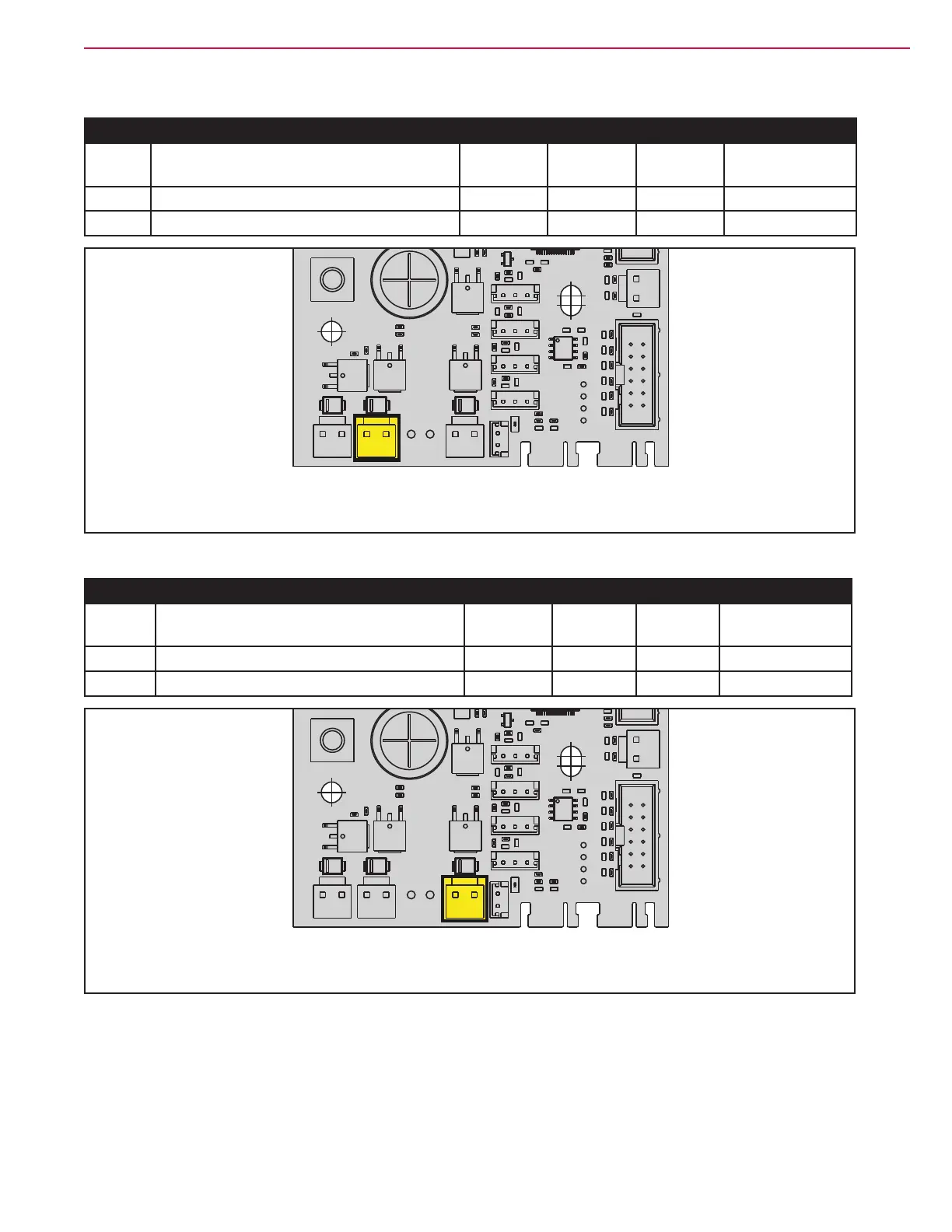

Main Machine Controller (EB1) Connectors (continues)
J602 AUX2: type JST B2P-VH (2 ways, vertical)
PIN Description
Controller
in/out
V ref. I max. Connected to
1 Detergent pump output + Out 24V 1A PM+
2 Detergent pump output - Out 0V 1A PM-
1 2
Figure 28:
J604 AUX4: type JST B2P-VH (2 ways, vertical)
PIN Description
Controller
in/out
V ref. I max. Connected to
1 Hourmeter output + Out 24V <1A HM+
2 Hourmeter output - Out 0V <1A HM-
1 2
Figure 29:
