49Service Manual – SC401, SCRUBTEC 344 04 - Control System - Battery

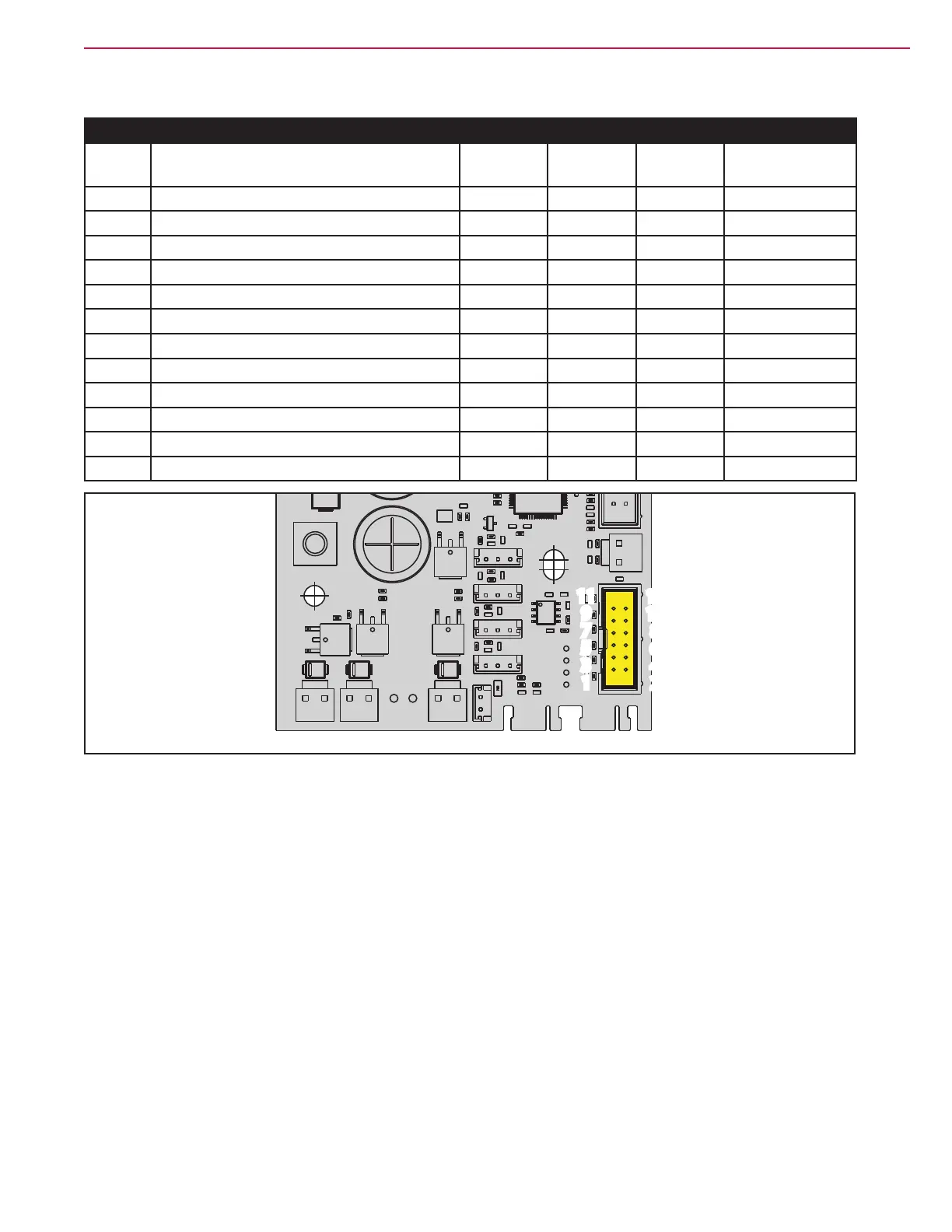

Main Machine Controller (EB1) Connectors (continues)
J204 EXT: LEOCO 3675P12VTA0 (12 ways, vertical)
PIN Description Controller
in/out
V ref. I max. Connected to
1 Power supply + Out 5V <1A UI.J201.6
2 Power supply - Out 0V <1A UI.J201.5
3 SPI MISO In-out 0-5V <1A UI.J201.3
4 SPI MOSI In-out 0-5V <1A UI.J201.2
5 - - - - -
6 SPI clock Out 0-5V <1A UI.J201.1
7 - - - - -
8 - - - - -
9 - - - - -
10 - - - - -
11 SPI CS3 Out 0-5V <1A UI.J201.4
12 - - - - -
1
2
3
4
5
6
7
8
9
10
11
1
3
5
7
9
11
12
2
4
6
8
10
12
Figure 30:
