50Service Manual – SC401, SCRUBTEC 344 04 - Control System - Battery

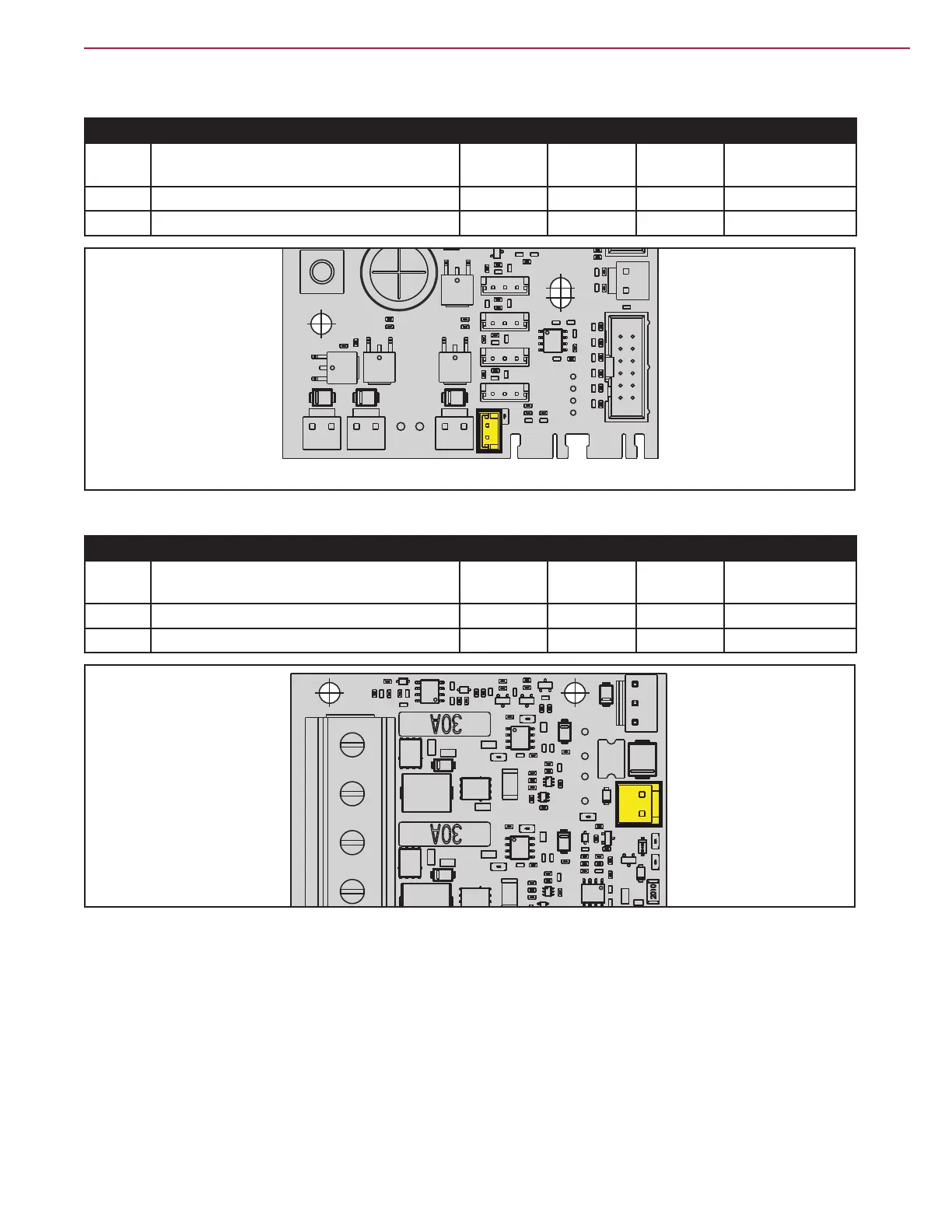

Main Machine Controller (EB1) Connectors (continues)
J105 BTN: JST B2B-EH-A (2 ways, vertical)
PIN Description Controller
in/out
V ref. I max. Connected to
1 Power button output Out 24V <1A UI.J201.8
2 Power button input In 24V <1A UI.J201.7
Figure 31:
J101 KEY: JST B2P-VH (2 ways, vertical)
PIN Description Controller
in/out
V ref. I max. Connected to
1 Key output Out 24V 1A K1, CH.3
2 Key input In 24V 1A CH.4, K1
1
2
Figure 32:
