51Service Manual – SC401, SCRUBTEC 344 04 - Control System - Battery

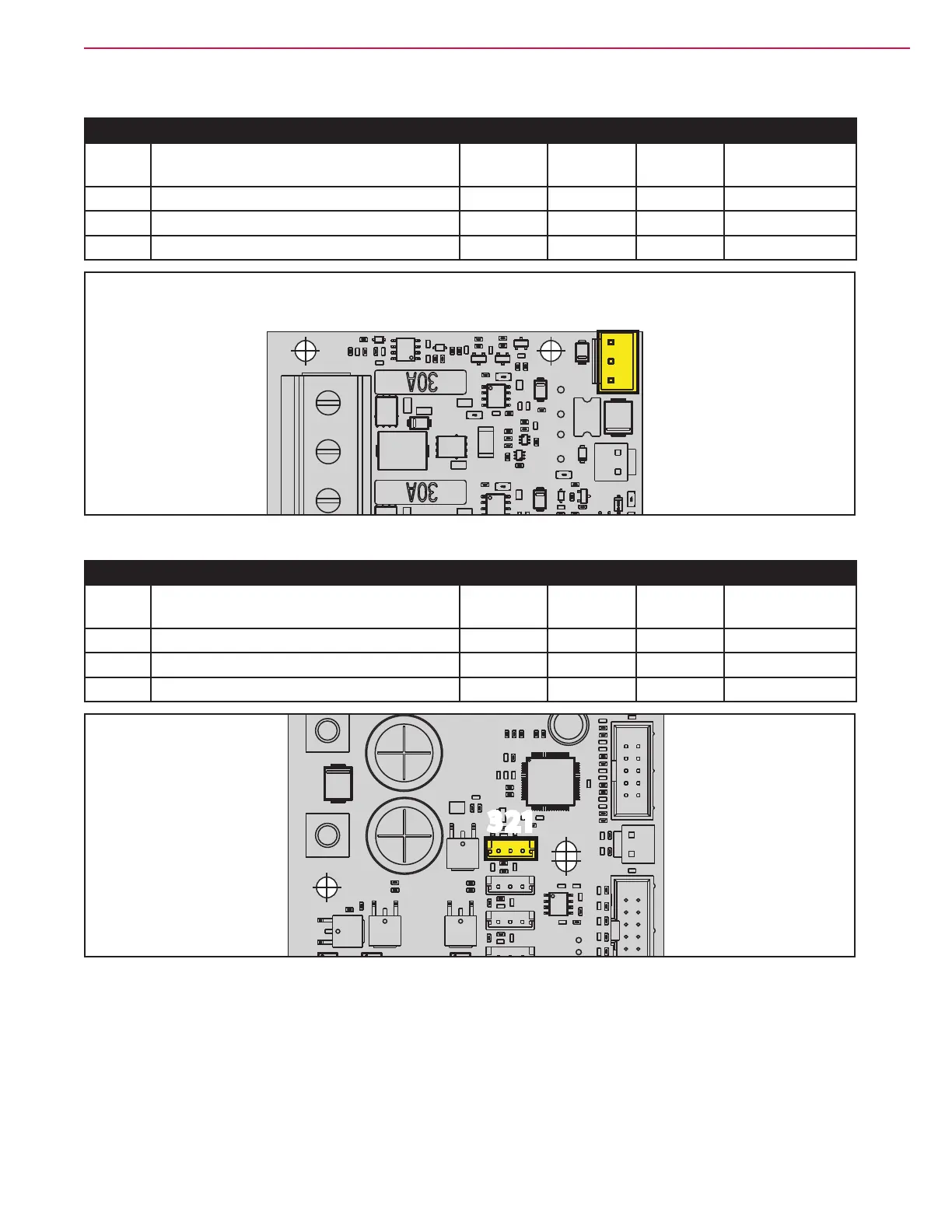

Main Machine Controller (EB1) Connectors (continues)
J104 BATTERY/RELAY: JST B3P-VH (3 ways, vertical)
PIN Description Controller
in/out
V ref. I max. Connected to
1 Power supply + (permanent) In 24V 1A BAT
2 Power relay + Out 24V <1A ES1.86
3 Power relay - Out 0V <1A ES1.85
1
2
3
Figure 33:
J209 D: type JST B3B-EH-A (3 ways, vertical)
PIN Description Controller
in/out
V ref. I max. Connected to
1 - - - - -
2 Drive system enable output Out 5V <1A EB3.J1.12
3 - - - - -
123 123
Figure 34:
