79Service Manual – SC401, SCRUBTEC 344 05 - Control System - Cord
Main Machine Controller (EB1) Connectors (continues)
OUT3: type 2 x faston 6,3 x 0,8 mm
PIN Description
Controller
in/out
V ref. I max. Connected to
1 Solution valve output Out 230Vac 1A EV+
2 Solution valve output Out 230Vac 1A EV-
N LN L

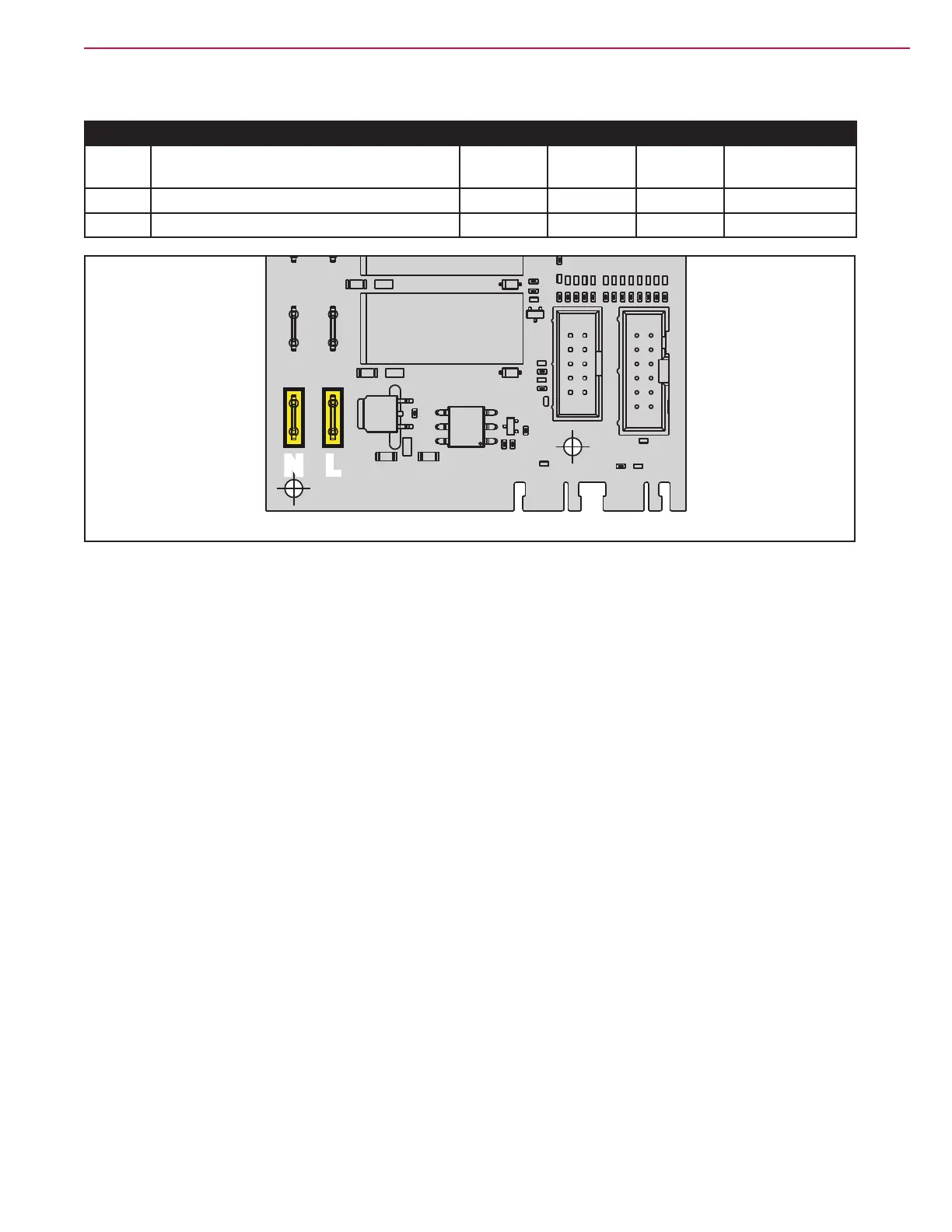

Figure 23:
