80Service Manual – SC401, SCRUBTEC 344 05 - Control System - Cord

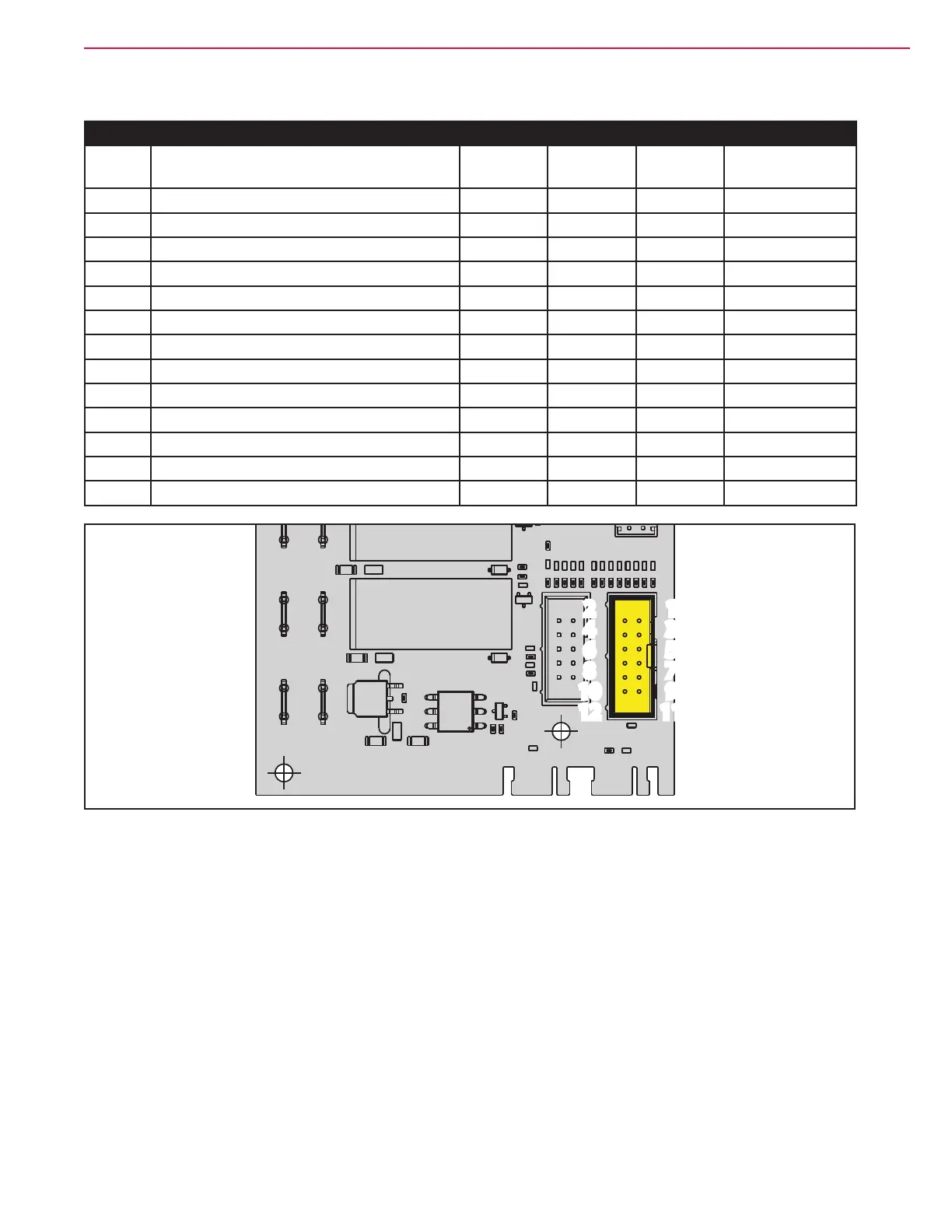

Main Machine Controller (EB1) Connectors (continues)
EXT: LEOCO 3675P12VTA0 ( ) (12 ways, vertical)
PIN Description
Controller
in/out
V ref. I max. Connected to
1 Power supply + Out 5V <1A UI.J201.6
2 Power supply - Out 0V <1A UI.J201.5
3 SPI MISO In-out 0-5V <1A UI.J201.3
4 SPI MOSI In-out 0-5V <1A UI.J201.2
- - - - - -
6 SPI clock Out 0-5V <1A UI.J201.1
- - - - - -
- - - - - -
- - - - - -
- - - - - -
- - - - - -
11 SPI CS3 Out 0-5V <1A UI.J201.4
- - - - - -
1
3
5
7
9
11
2
4
6
8
10
12
1
3
5
7
9
11
2
4
6
8
10
12
Figure 24:
