Scrub System, Disc 130Service Manual – SC6500
™
10. After each adjustment, hold the Spring Housing Assembly, run the actuator in and out and check both
dimensions.
11. Reinstall the Cam Adjuster Cover.
12. After adjusting the actuator
Spring Housing Assembly
dimensions, refer to the Removal
and Installation/Scrub Deck Lift
Actuator section to reassemble

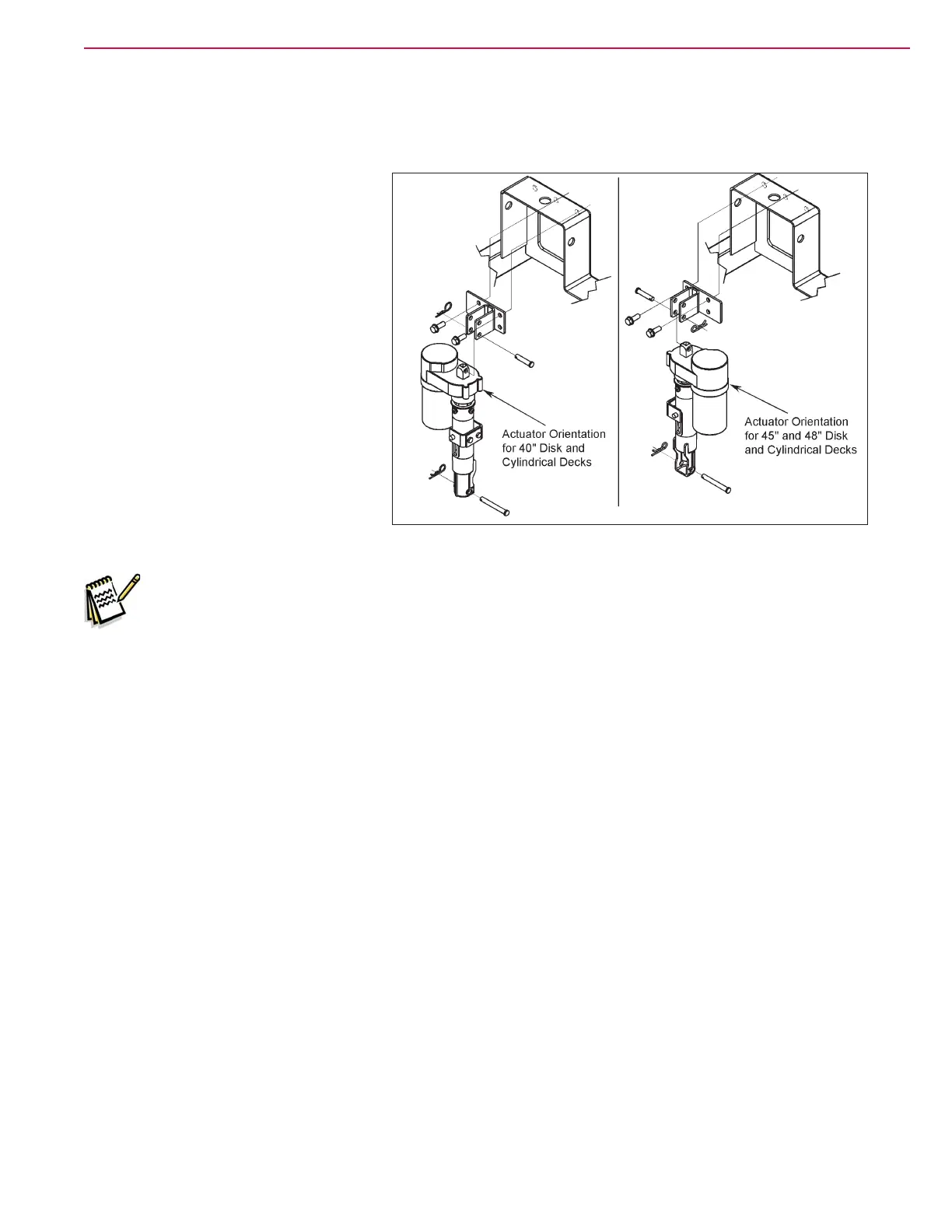

it in the machine. Refer to the
adjacent drawing to correctly
mount the top of actuator motor to
the chassis by model size.
Service Note: Note the correct orientation of the Spring Housing Assembly when installing the
complete motor assembly and also run the Spring Housing Assembly to the Retracted
(in) position before you install it in the machine.
