Scrub System, Disc 123Service Manual – SC6500
™
Scrub System, Disc
Functional Description
Overview
The SC6500 disc models use rotary brushes powered by permanent-magnet motors and gearbox assemblies.
The 40” decks have two scrub brushes that are both powered by one 3 HP motor/gearbox assembly. The 45”
and 48” decks have three brushes, each powered by a separate 1-1/2 HP motor/gearbox assembly.
The scrub deck lift actuator raises and lowers the scrub deck, and automatically adjusts the deck height
while scrubbing to maintain the desired scrub pressure.

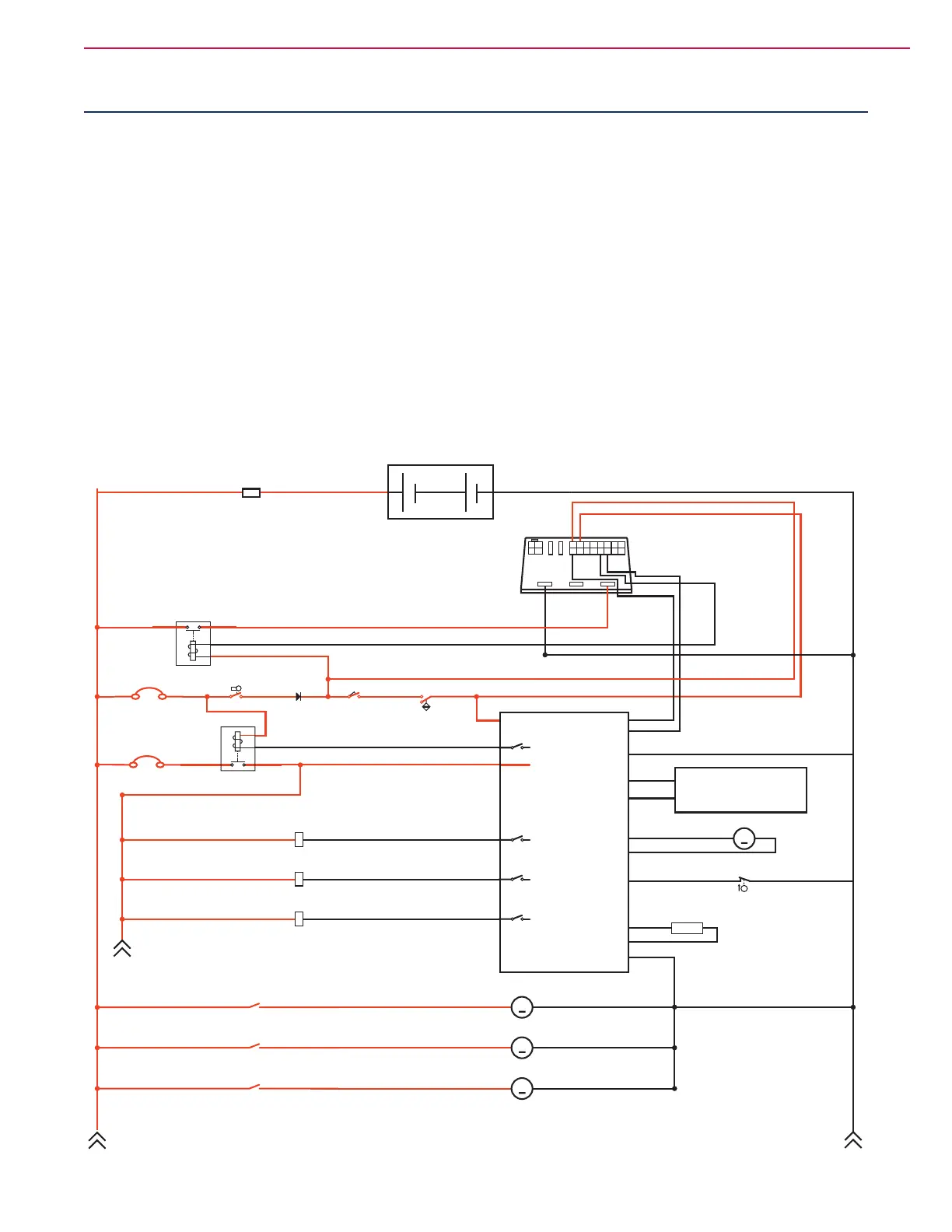

Disc Scrub System Wiring Diagram
A2 Control
Board
Assembly
A3
Switch/Display
Panel Assembly
Fuse, 250 A
36V Battery
A1
Speed
Controller
Motion
8
B-
B+
F4
K7
F1
S1
S2
S3
D1
Key Switch Seat Switch
Battery Interlock Switch
(for roll-out Battery)
Diode
F2
Circuit Breaker, 15 Amp
Circuit Breaker, 3 Amp
K5
4 3
16
15
Direction
Battery Ground
CAN H
CAN L
S5
Solution Empty Switch
(closes when empty)
B+
B+
B-
Bat -
Bat -
Bat +
Bat -
+ -
K2
Right Brush Contactor
K3
Center Brush Contactor
Bat -
K4
Left Brush Contactor
M9
M10
Right Brush Motor
(+ on 40" Disc) (- on 40" Disc )
M
Center Brush Motor
M
-
+
-
+
K2
12
Right Brush Contactor
K3
12
Center Brush Contactor
M11
Left Brush Motor
(three-motor decks)
M
-
+
K4
12
Left Brush Contactor
RED BLK
Brush Actuator
M2
R2
12
1K Ohm for 40" Disc
20K Ohm for 45" & 48" Disc
Scrub Deck Sensing Resistor
M
BRN
J2-2
