Wheel System, Traction 202Service Manual – SC6500
™
Removal and Installation
Warning! Before removing or reinstalling any machine components, make sure the key switch
is off, the key is removed from the machine and the parking brake is engaged.
Front Drive Wheel/Tire Removal
Note: It is not necessary to remove the complete wheel drive/spindle assembly to service the drive
tire only.
Warning! Turn the key switch off and disconnect the battery pack.
Engage the machine parking brake and block both rear wheels so machine can’t roll.
Never work under machine without safety stands or blocking to support the machine.
1. Jack up the front of the vehicle so
that the front wheel is off the ground
and support the vehicle safely on jack
stands.
2. Turn the wheel so that the drive
hub is facing forward. Remove the 4
fasteners in the center.

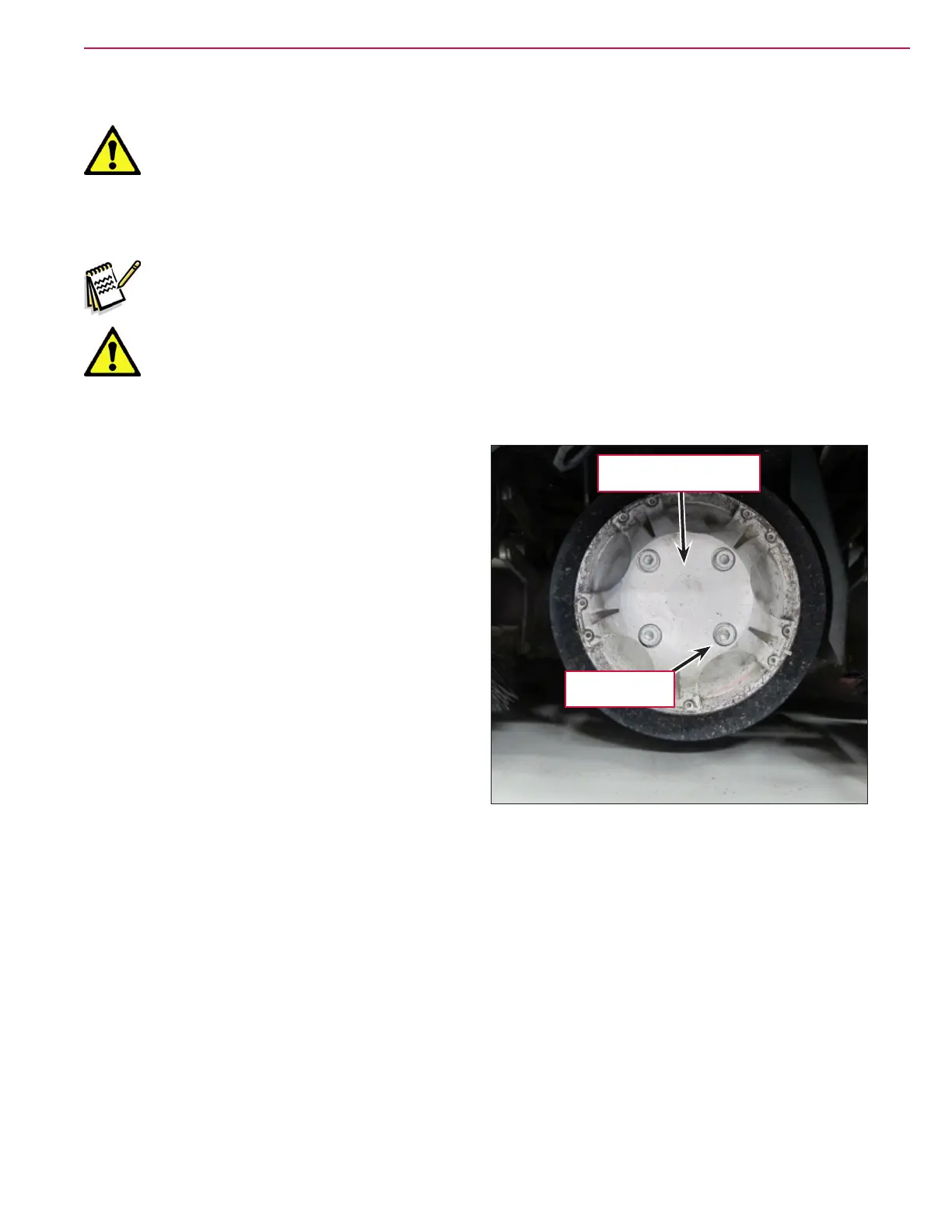

Drive Wheel Hub
Remove 4
fasteners
