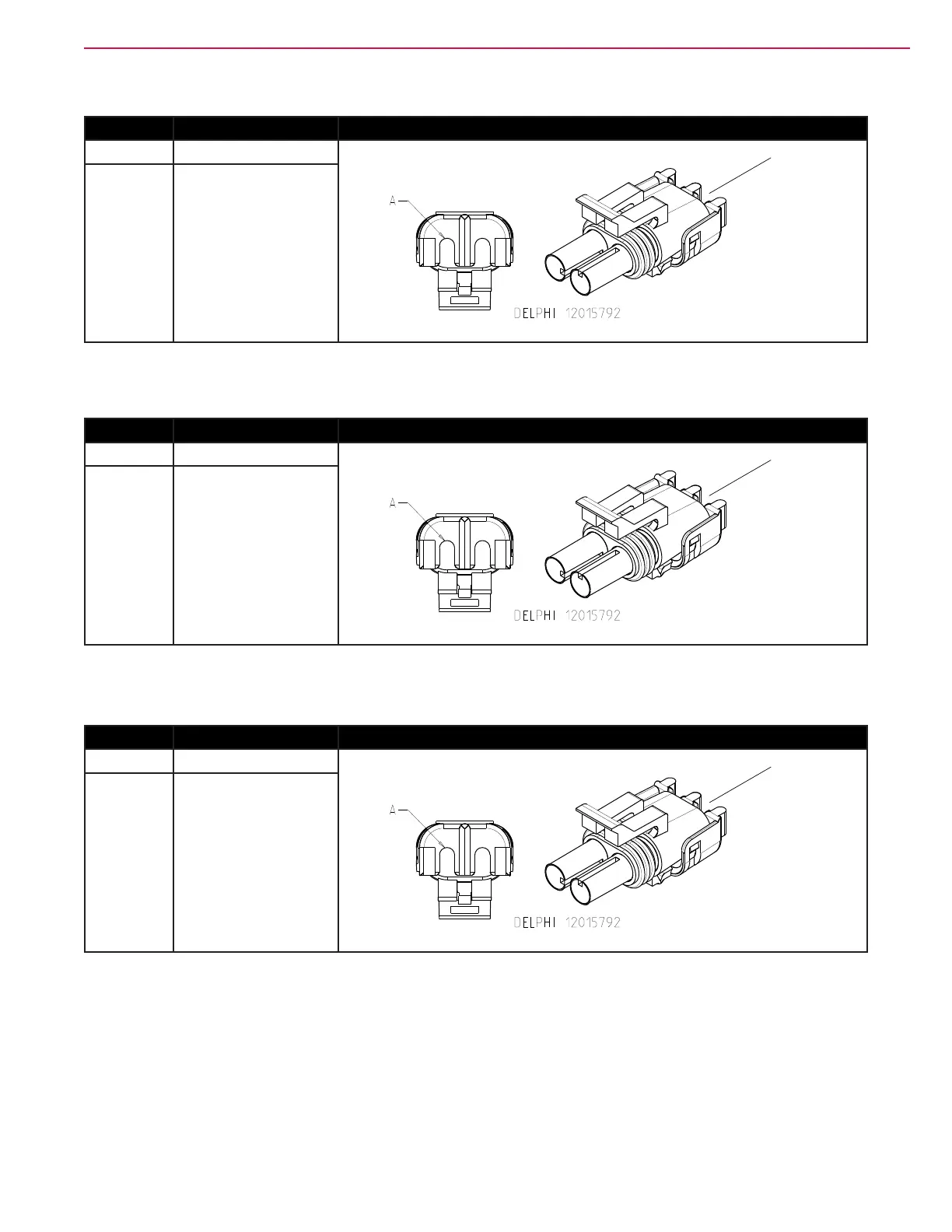

Electrical System 69Service Manual – SC6500
™
X18 Connects to M2 Brush Actuator X17
Pin No. Wire ID
A RED/BLK 18-1
B YEL/GRA 18-1
X20 Connects to M3 Squeegee Actuator X19
Pin No. Wire ID
A WHT/GRN 18-1
B BLU/BRN 18-1
X22 Connects to M4 Side Broom Actuator X21
Pin No. Wire ID
A GRAB/VIO 18-1
B GRN/ORN 18-1
