5. Description of the device

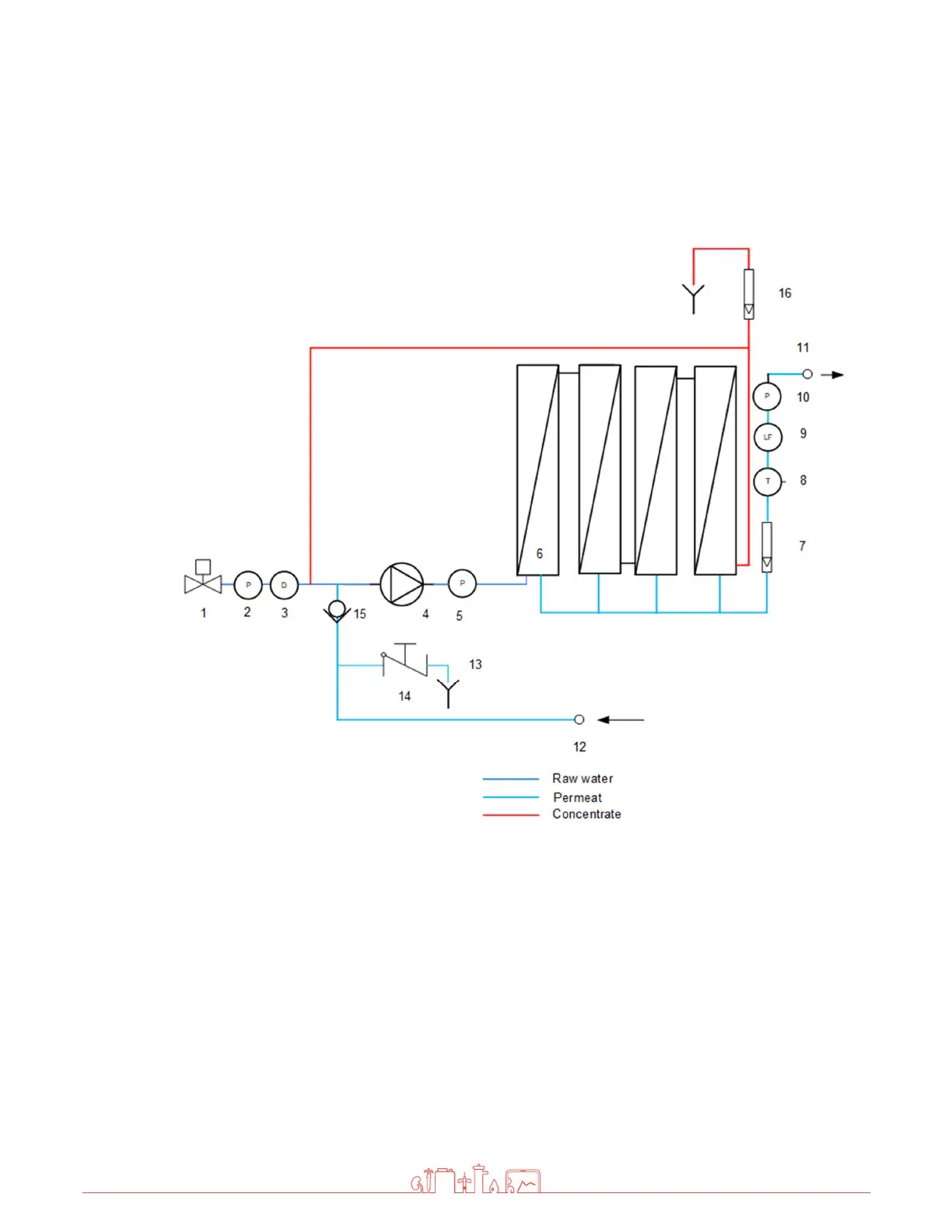

5.1 Flow-Chart
1. Magnetic valve inlet
2. Pressure switch input
3. Disinfection point
4. Pump (pressure 10-13bar)
5. Manometer (pressure 10-13 bar)
6. Reverse osmosis membrane (1-4 pieces)
7. Permeate flow rate indicator
8. Temperature sensor
9. Conductivity sensor permeate flow
10. Permeate pressure switch
11. Connection flow hose nozzle d20
12. Connection back flow hose nozzle d20
13. Drain
14. Shut-off valve permeate drain
15. Check valve
16. Flow indicator concentrate drain
