Analog inputs
The analog inputs can be used to measure voltage ( 0-5V) form an external equipement.
The electrical specifications are shown below:
Connector Settings Min Max Units
Analog input
[ AI1 - AI2 ]
Voltage 0 5 V
Current 0 20 mA
Resolution 12 bit

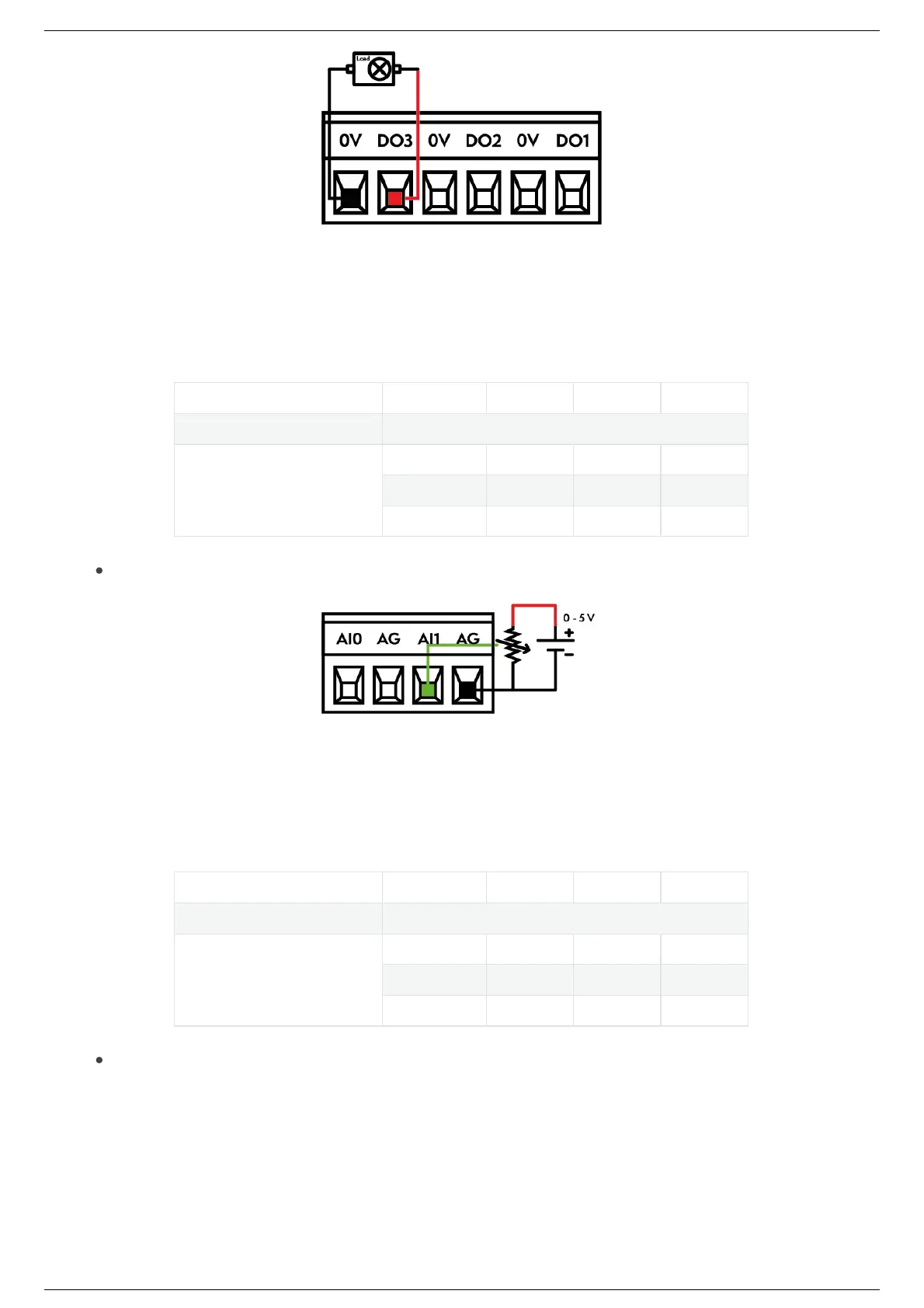

This illustration below shows how to connect a potentiometer for reading values from 0-5V.
Analog outputs
The analog outputs can be used to set voltage ( 0-5V) to an external equipement.
The electrical specifications are shown below:
Connector Settings Min Max Units
Analog output
[ AO1 - AO2 ]
Voltage 0 5 V
Current 0 30 mA
Resolution 12 bit
This example shows how to connect a load in order to be controlled from an analog output.
