NKT Koheras BASIK - Internal Generator -Signal Output; Figure 51 Setting the Internal Generator Waveform; Figure 52 Toggling the Internal Generator Signal Output

79
Read/write registers
• 01 – sinusoidal
• 41 - triangular
• 81 – sawtooth
• C1 – inverse sawtooth

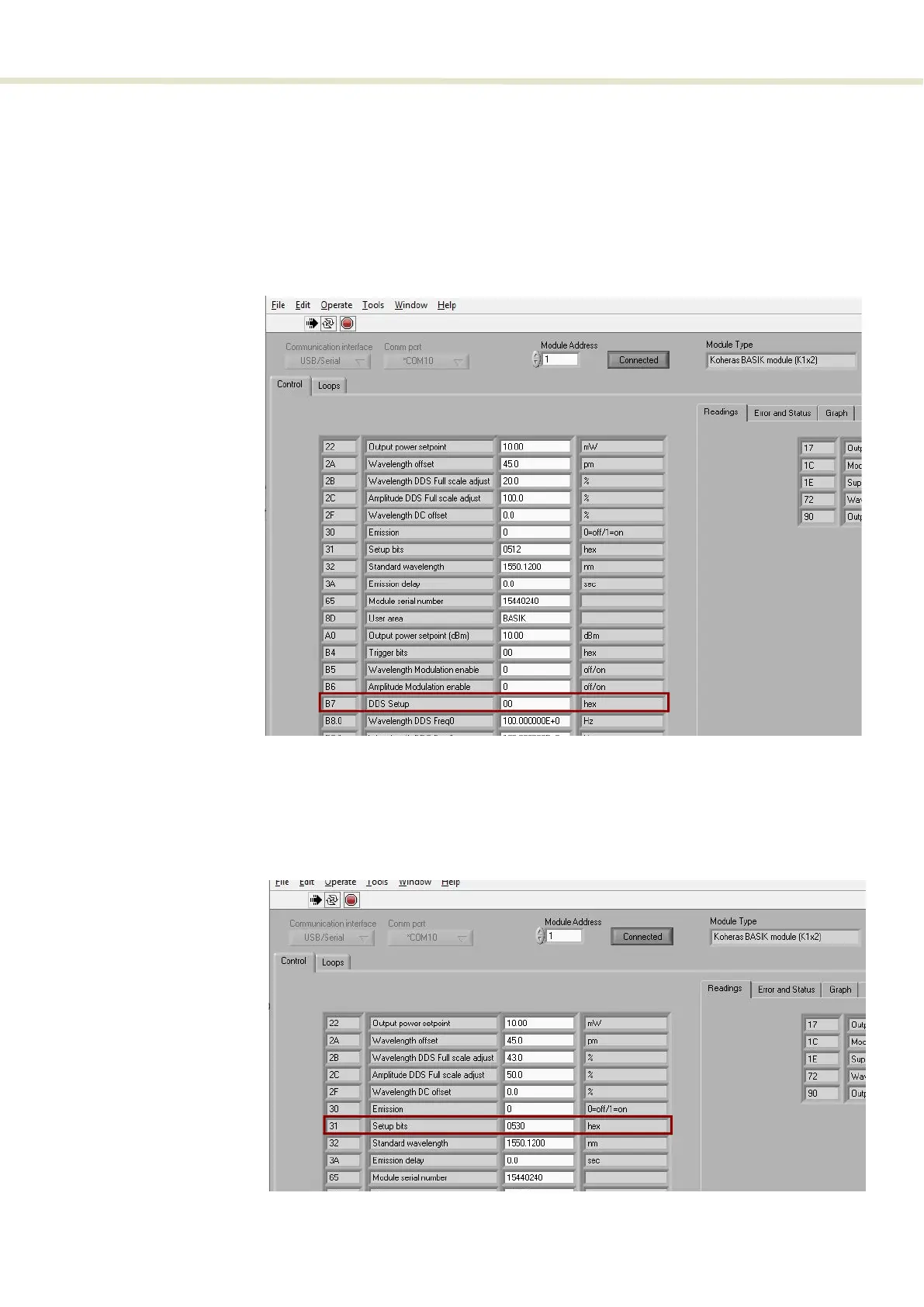

Figure 51 Setting the internal generator waveform
Internal generator -
signal output
To enable or disable outputting the internal generator signal on the Wavelength
+/- pins use bit 6 of register 0x31, where setting the bit to ‘0’ disables the signal
generator output and ‘1’ enables signal generator output.
Figure 52 Toggling the internal generator signal output
