RM-994/ RM-995/ RM-996
RF Troubleshooting Guide
NOKIA INTERNAL USE ONLY Page 99
Copyright © 2013 Nokia. All rights reserved.
Diversity Antenna
Contact Spring

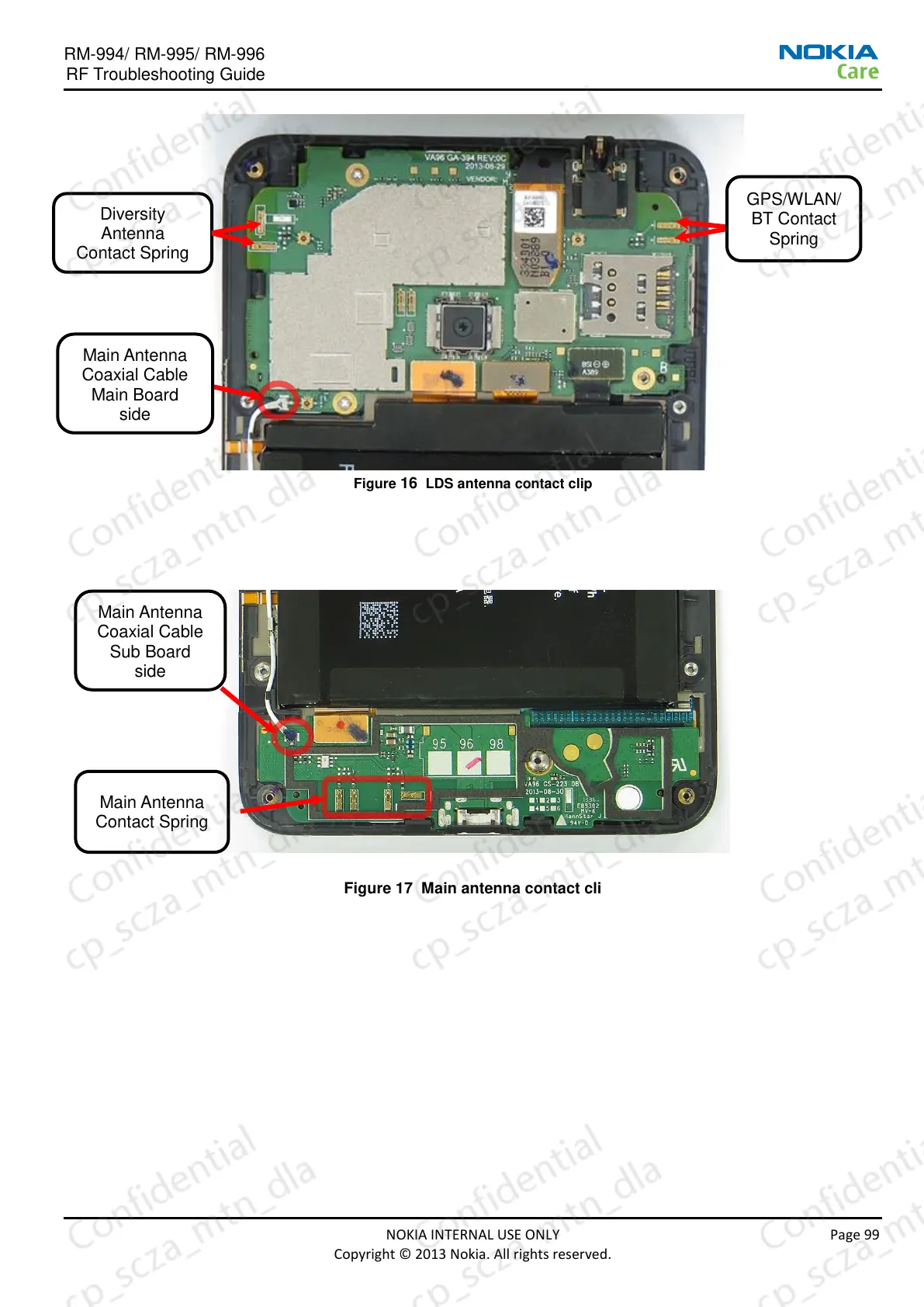

Figure 16 LDS antenna contact clip
Figure 17 Main antenna contact cli
Main Antenna
Coaxial Cable
Sub Board
side
Main Antenna
Contact Spring
Diversity
Antenna
Contact Spring
Main Antenna
Coaxial Cable
Main Board
side
GPS/WLAN/
BT Contact
Spring
