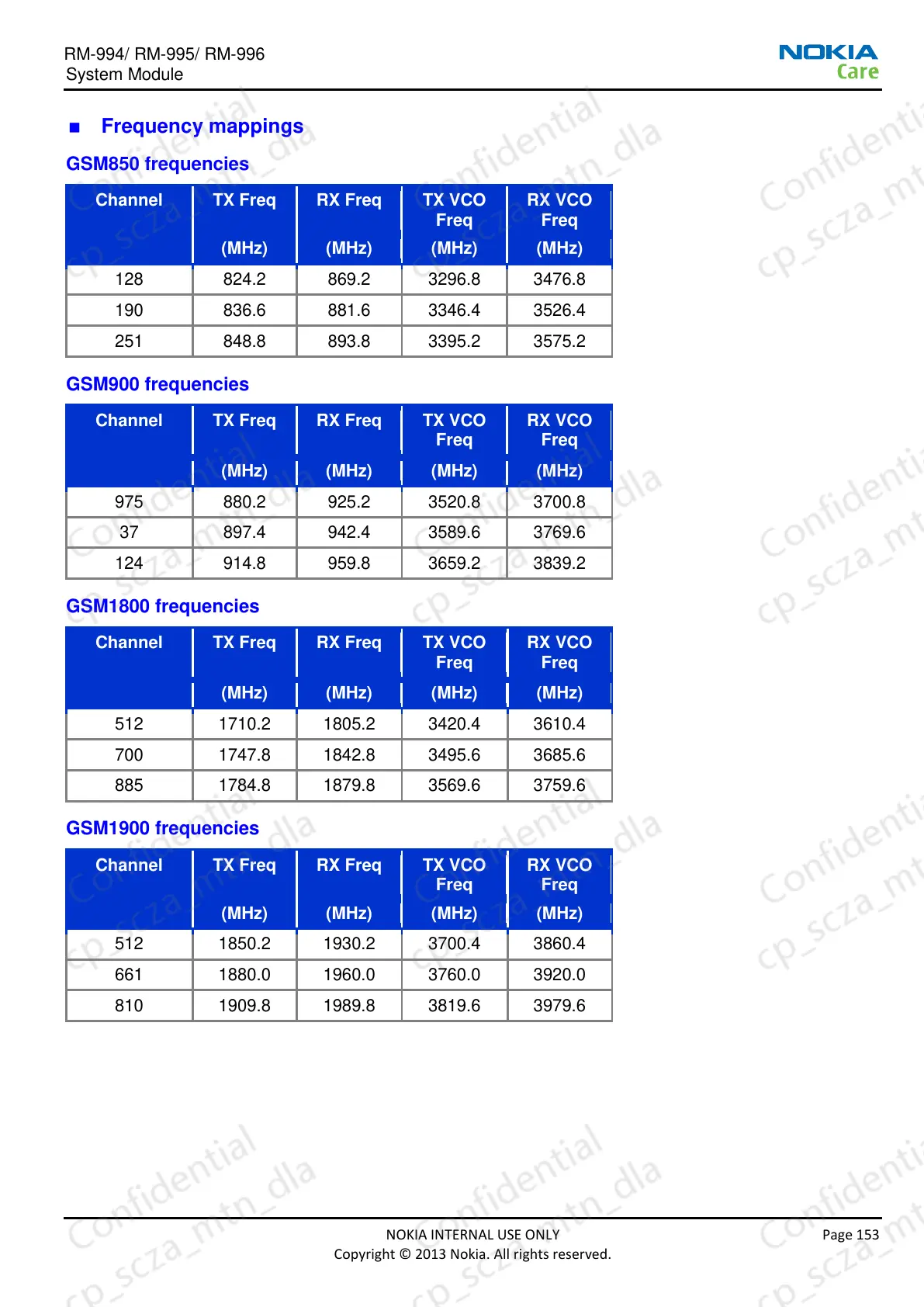

 Frequency mappings
GSM850 frequencies
Channel
TX Freq
RX Freq
TX VCO
Freq
RX VCO
Freq
(MHz)
(MHz)
(MHz)
(MHz)
128
824.2
869.2
3296.8
3476.8
190
836.6
881.6
3346.4
3526.4
251
848.8
893.8
3395.2
3575.2
GSM900 frequencies
Channel
TX Freq
RX Freq
TX VCO
Freq
RX VCO
Freq
(MHz)
(MHz)
(MHz)
(MHz)
975
880.2
925.2
3520.8
3700.8
37
897.4
942.4
3589.6
3769.6
124
914.8
959.8
3659.2
3839.2
GSM1800 frequencies
Channel
TX Freq
RX Freq
TX VCO
Freq
RX VCO
Freq
(MHz)
(MHz)
(MHz)
(MHz)
512
1710.2
1805.2
3420.4
3610.4
700
1747.8
1842.8
3495.6
3685.6
885
1784.8
1879.8
3569.6
3759.6
GSM1900 frequencies
Channel
TX Freq
RX Freq
TX VCO
Freq
RX VCO
Freq
(MHz)
(MHz)
(MHz)
(MHz)
512
1850.2
1930.2
3700.4
3860.4
661
1880.0
1960.0
3760.0
3920.0
810
1909.8
1989.8
3819.6
3979.6
