Nokia Lumia 1320 - Normal and Extreme Voltages; List of Tables Table 8 Nominal Voltages

RM-994/ RM-995/ RM-996
System Module
Page 132 NOKIA INTERNAL USE ONLY
Copyright © 2013 Nokia. All rights reserved.

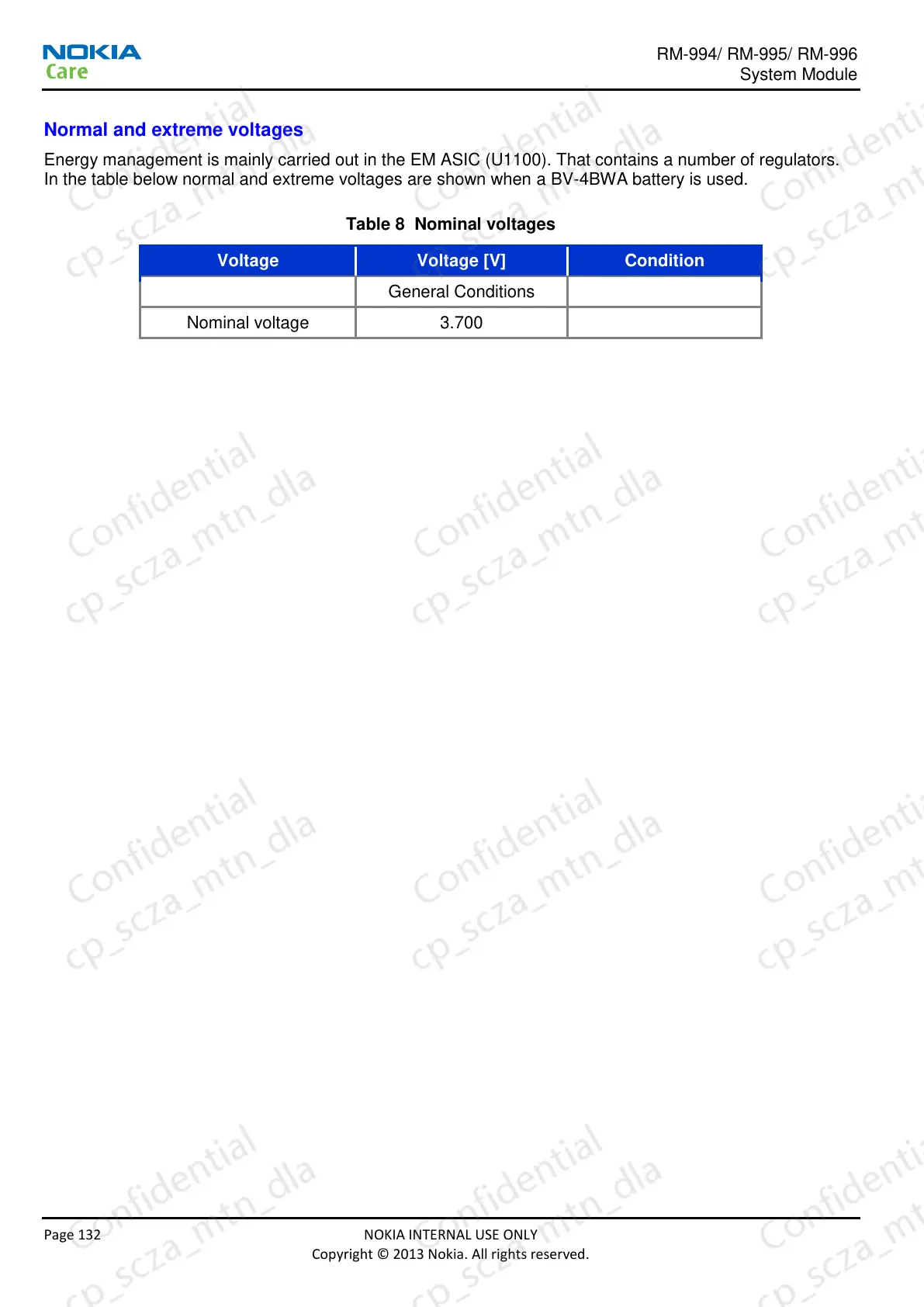

Normal and extreme voltages
Energy management is mainly carried out in the EM ASIC (U1100). That contains a number of regulators.
In the table below normal and extreme voltages are shown when a BV-4BWA battery is used.
Table 8 Nominal voltages
Voltage
Voltage [V]
Condition
General Conditions
Nominal voltage
3.700
