Nokia Lumia 1320 - Optional Module Jig Service Concept 2 (Troubleshooting + RF Measurement); Figure 5 be Module Jig Service Concept 2

RM-994/ RM-995/ RM-996
Service Tools and Service Concepts
NOKIA INTERNAL USE ONLY Page 39
Copyright © 2013 Nokia. All rights reserved.

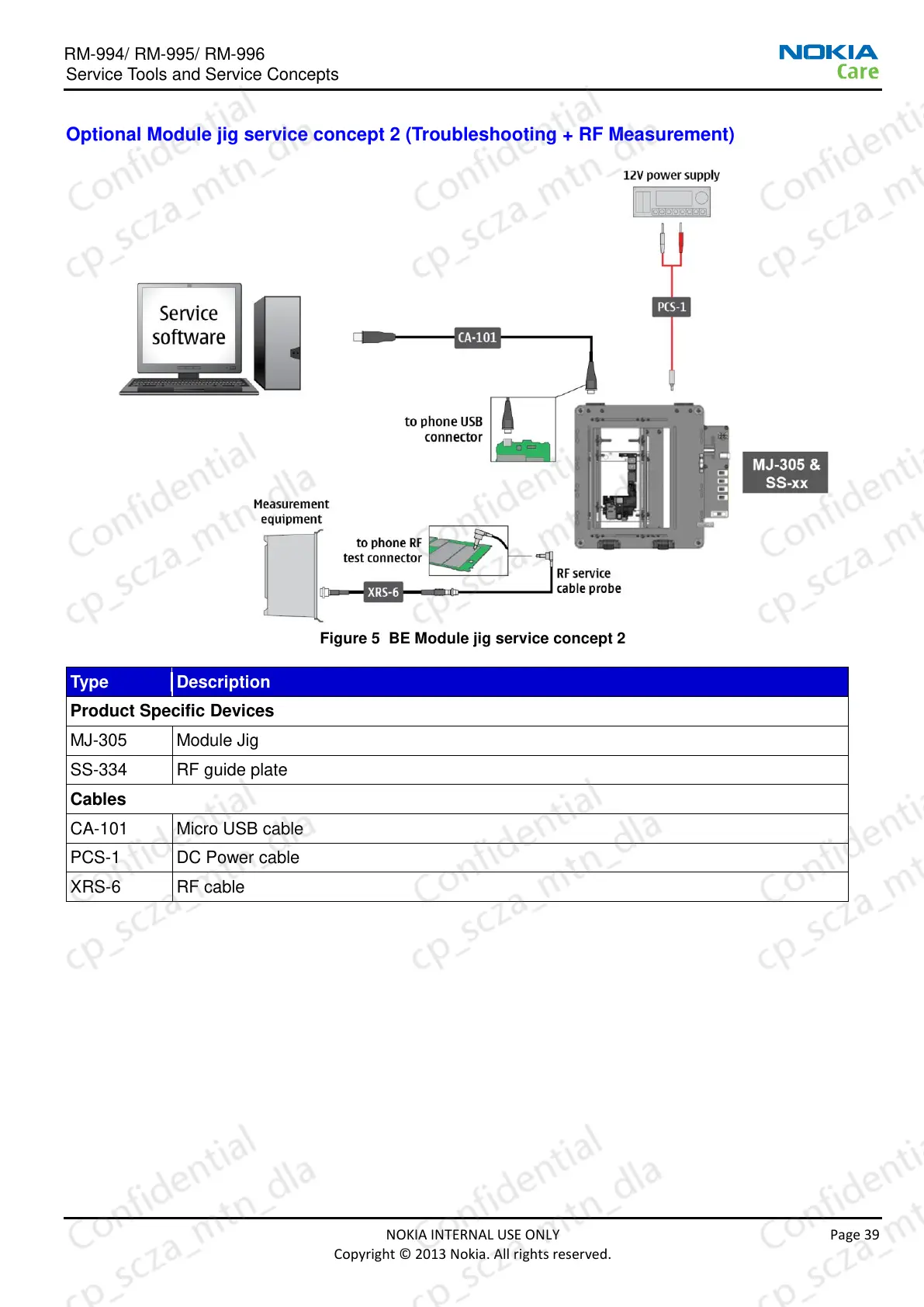

Optional Module jig service concept 2 (Troubleshooting + RF Measurement)
Figure 5 BE Module jig service concept 2
Type
Description
Product Specific Devices
MJ-305
Module Jig
SS-334
RF guide plate
Cables
CA-101
Micro USB cable
PCS-1
DC Power cable
XRS-6
RF cable
