RM-994/ RM-995/ RM-996
System Module
Page 148 NOKIA INTERNAL USE ONLY
Copyright © 2013 Nokia. All rights reserved.

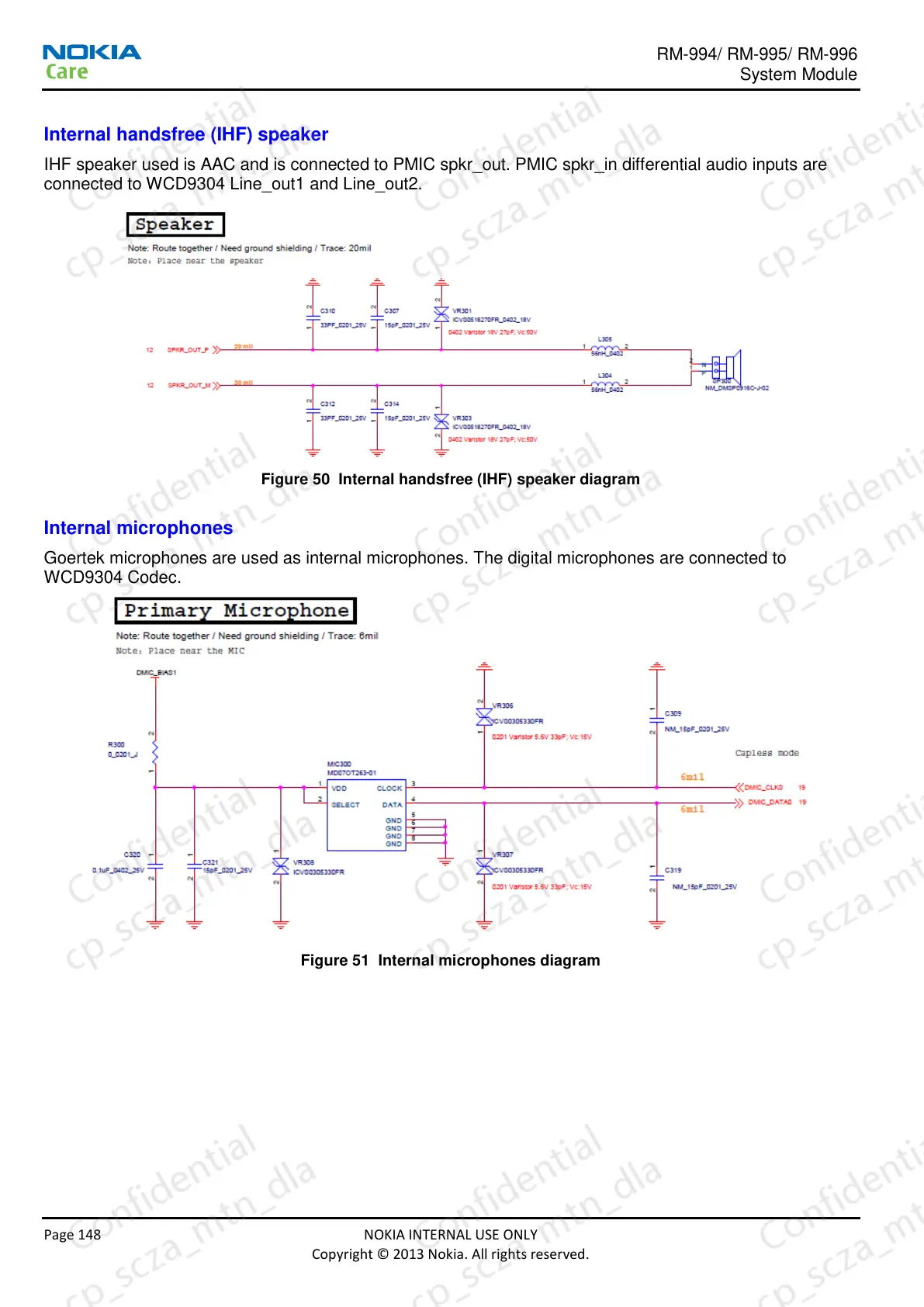

Internal handsfree (IHF) speaker
IHF speaker used is AAC and is connected to PMIC spkr_out. PMIC spkr_in differential audio inputs are
connected to WCD9304 Line_out1 and Line_out2.
Figure 50 Internal handsfree (IHF) speaker diagram
Internal microphones
Goertek microphones are used as internal microphones. The digital microphones are connected to
WCD9304 Codec.
Figure 51 Internal microphones diagram
