Nokia Lumia 1320 - Clock Scheme; Micro SIM Interface

RM-994/ RM-995/ RM-996
System Module
NOKIA INTERNAL USE ONLY Page 135
Copyright © 2013 Nokia. All rights reserved.

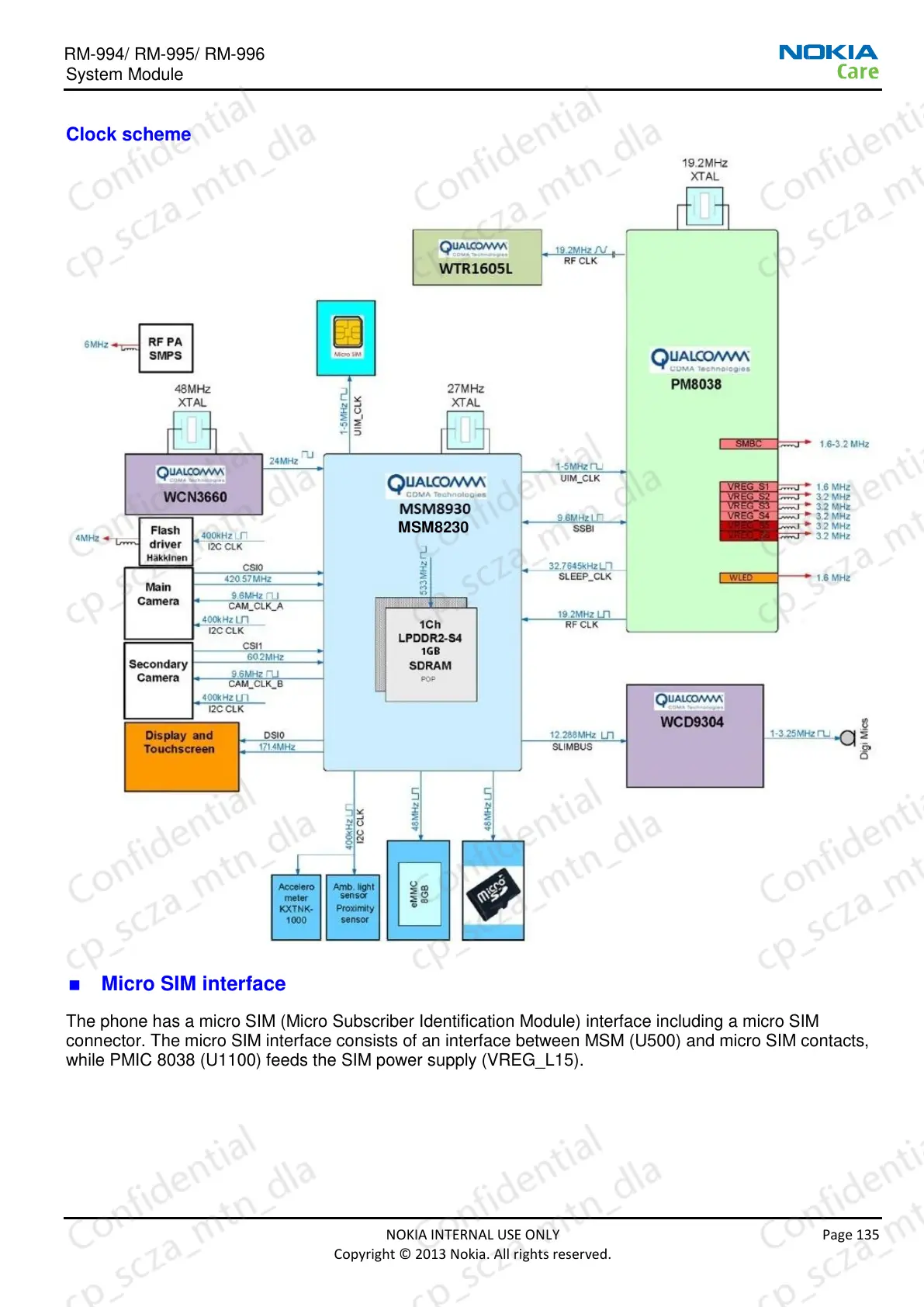

Clock scheme
 Micro SIM interface
The phone has a micro SIM (Micro Subscriber Identification Module) interface including a micro SIM
connector. The micro SIM interface consists of an interface between MSM (U500) and micro SIM contacts,
while PMIC 8038 (U1100) feeds the SIM power supply (VREG_L15).
MSM8230
