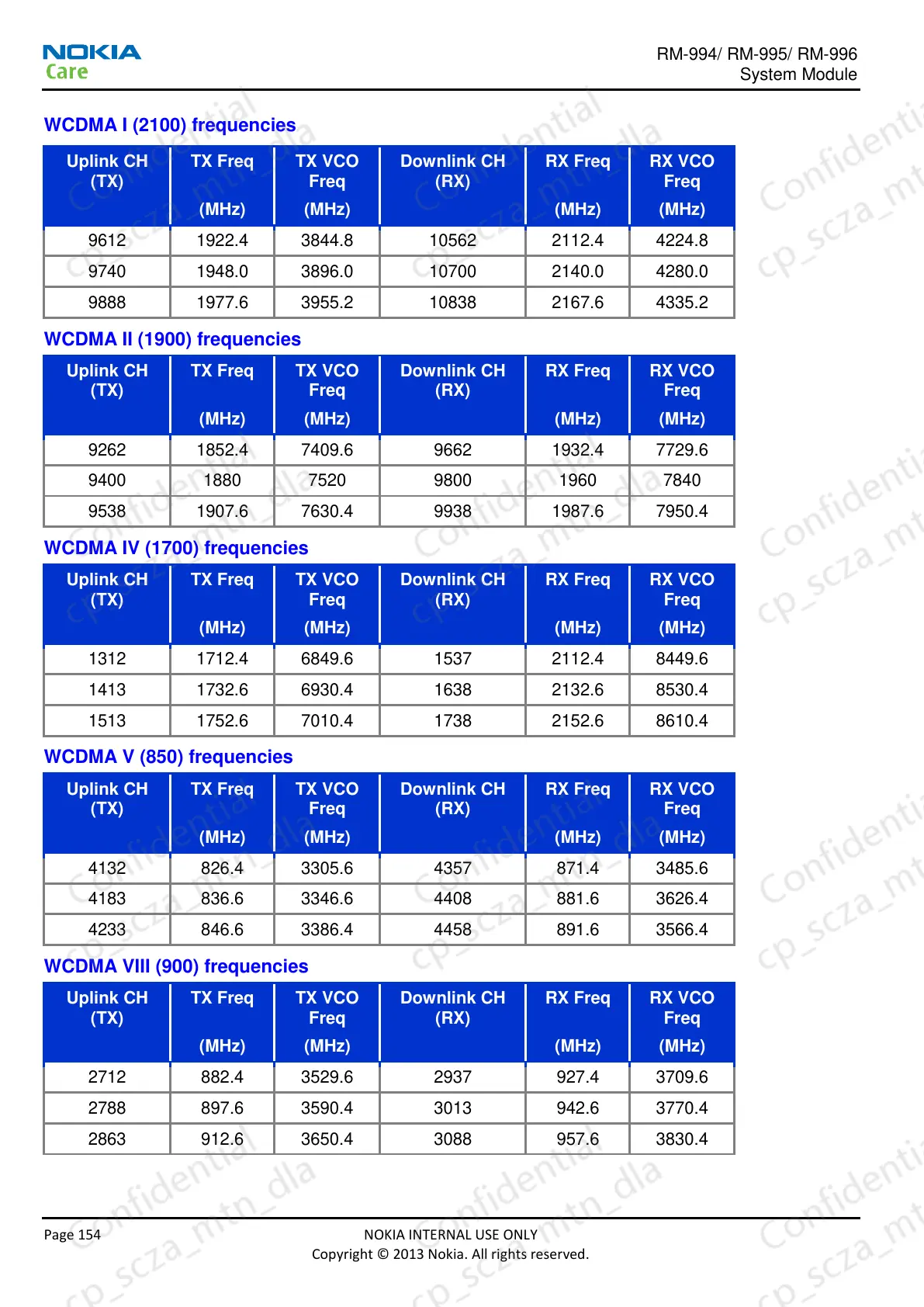

RM-994/ RM-995/ RM-996
System Module
Page 154 NOKIA INTERNAL USE ONLY
Copyright © 2013 Nokia. All rights reserved.
WCDMA I (2100) frequencies
Uplink CH
(TX)
TX Freq
TX VCO
Freq
Downlink CH
(RX)
RX Freq
RX VCO
Freq
(MHz)
(MHz)
(MHz)
(MHz)
9612
1922.4
3844.8
10562
2112.4
4224.8
9740
1948.0
3896.0
10700
2140.0
4280.0
9888
1977.6
3955.2
10838
2167.6
4335.2
WCDMA II (1900) frequencies
Uplink CH
(TX)
TX Freq
TX VCO
Freq
Downlink CH
(RX)
RX Freq
RX VCO
Freq
(MHz)
(MHz)
(MHz)
(MHz)
9262
1852.4
7409.6
9662
1932.4
7729.6
9400
1880
7520
9800
1960
7840
9538
1907.6
7630.4
9938
1987.6
7950.4
WCDMA IV (1700) frequencies
Uplink CH
(TX)
TX Freq
TX VCO
Freq
Downlink CH
(RX)
RX Freq
RX VCO
Freq
(MHz)
(MHz)
(MHz)
(MHz)
1312
1712.4
6849.6
1537
2112.4
8449.6
1413
1732.6
6930.4
1638
2132.6
8530.4
1513
1752.6
7010.4
1738
2152.6
8610.4
WCDMA V (850) frequencies
Uplink CH
(TX)
TX Freq
TX VCO
Freq
Downlink CH
(RX)
RX Freq
RX VCO
Freq
(MHz)
(MHz)
(MHz)
(MHz)
4132
826.4
3305.6
4357
871.4
3485.6
4183
836.6
3346.6
4408
881.6
3626.4
4233
846.6
3386.4
4458
891.6
3566.4
WCDMA VIII (900) frequencies
Uplink CH
(TX)
TX Freq
TX VCO
Freq
Downlink CH
(RX)
RX Freq
RX VCO
Freq
(MHz)
(MHz)
(MHz)
(MHz)
2712
882.4
3529.6
2937
927.4
3709.6
2788
897.6
3590.4
3013
942.6
3770.4
2863
912.6
3650.4
3088
957.6
3830.4
