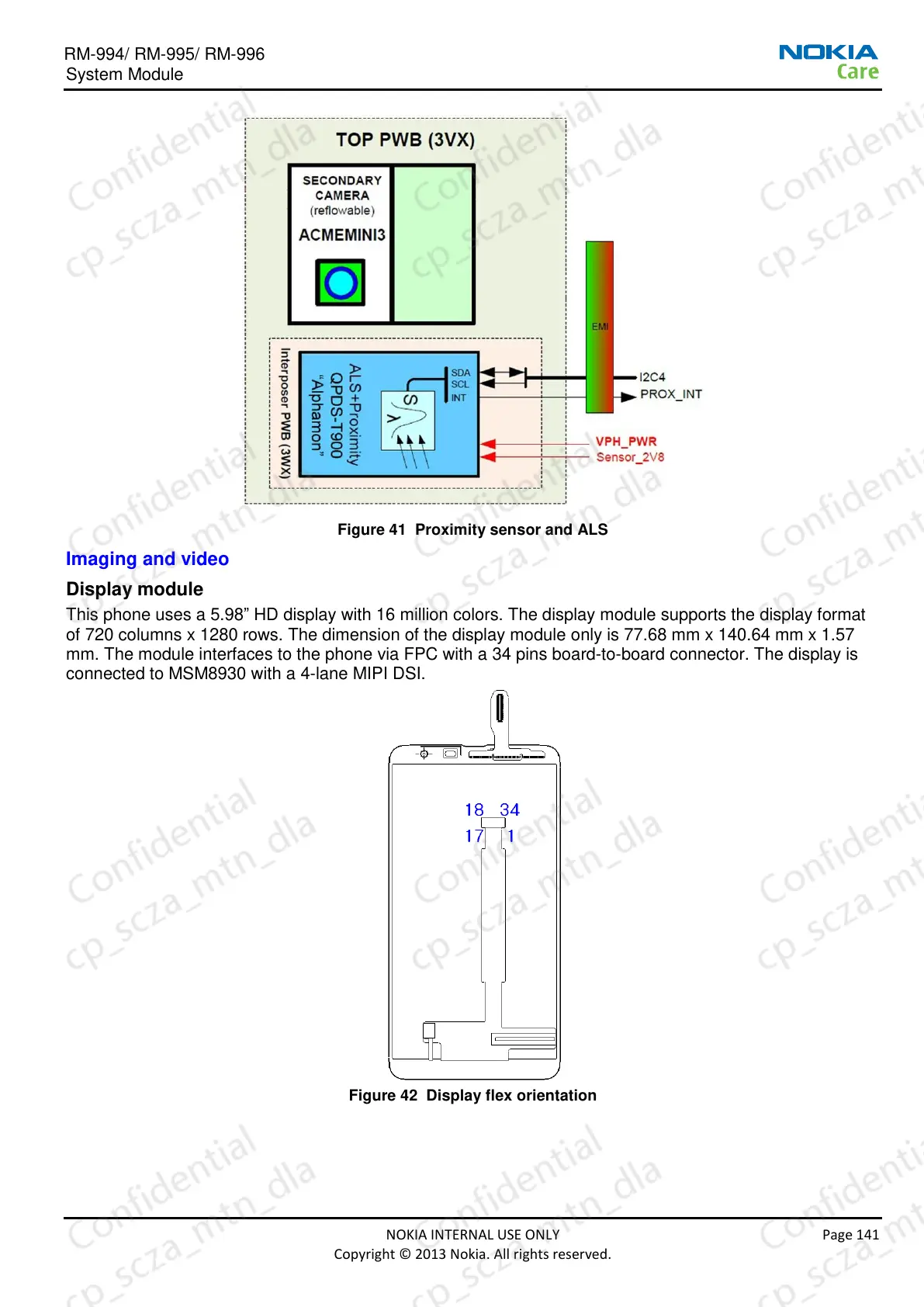

Figure 41 Proximity sensor and ALS
Imaging and video
Display module
This phone uses a 5.98” HD display with 16 million colors. The display module supports the display format
of 720 columns x 1280 rows. The dimension of the display module only is 77.68 mm x 140.64 mm x 1.57
mm. The module interfaces to the phone via FPC with a 34 pins board-to-board connector. The display is
connected to MSM8930 with a 4-lane MIPI DSI.
Figure 42 Display flex orientation
