Illumination
Backlight illumination is supported and is handled by eight white LEDs that are located on the LCM module.
These LEDs are powered by VPH_PWR and controlled by PM8038 via V_LED_N1 and V_LED_N2
System Mudues

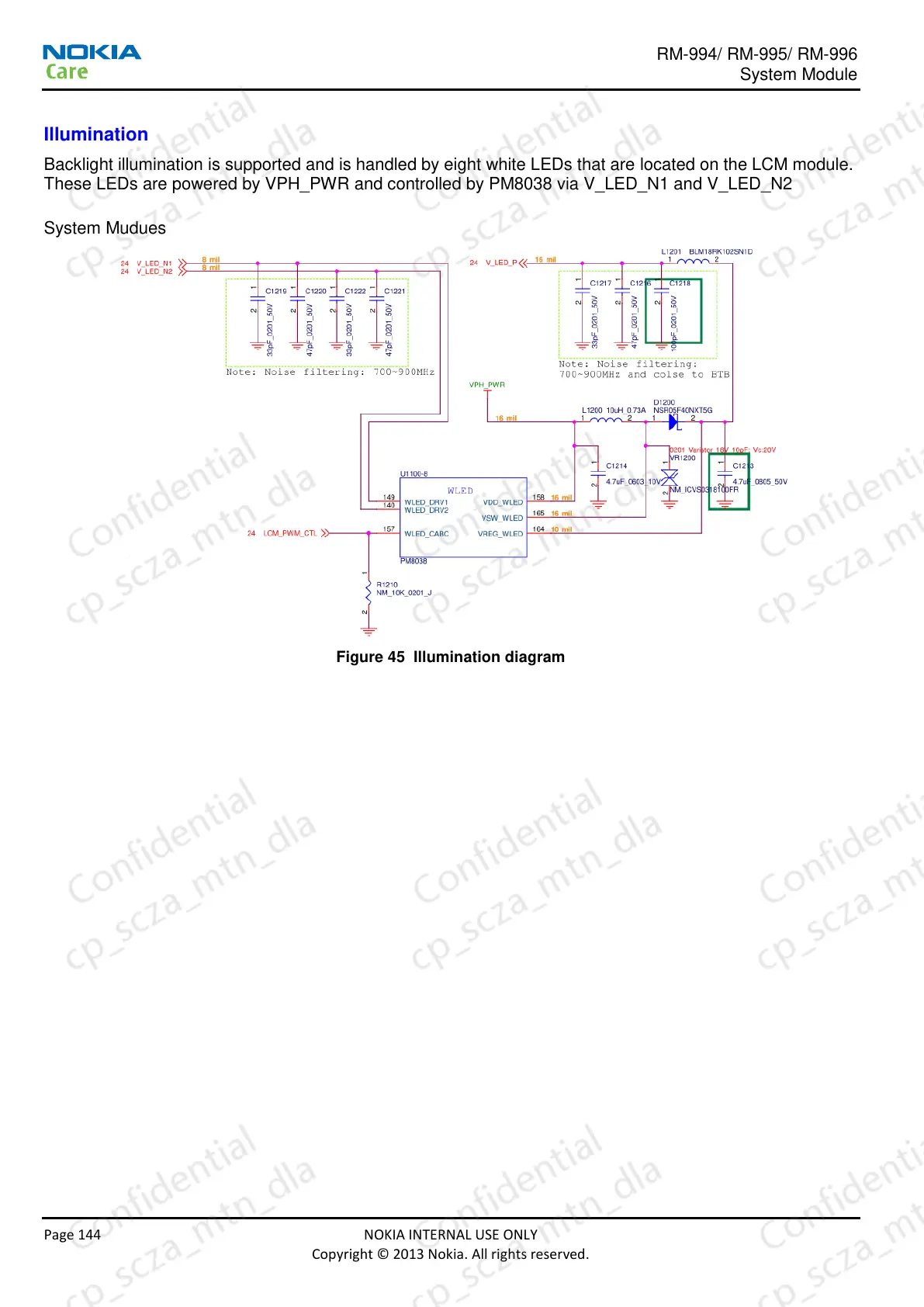

Figure 45 Illumination diagram
