Nokia Lumia 1320 Service Manual

RM-994/ RM-995/ RM-996
RF Troubleshooting Guide
Page 96 NOKIA INTERNAL USE ONLY
Copyright © 2013 Nokia. All rights reserved.

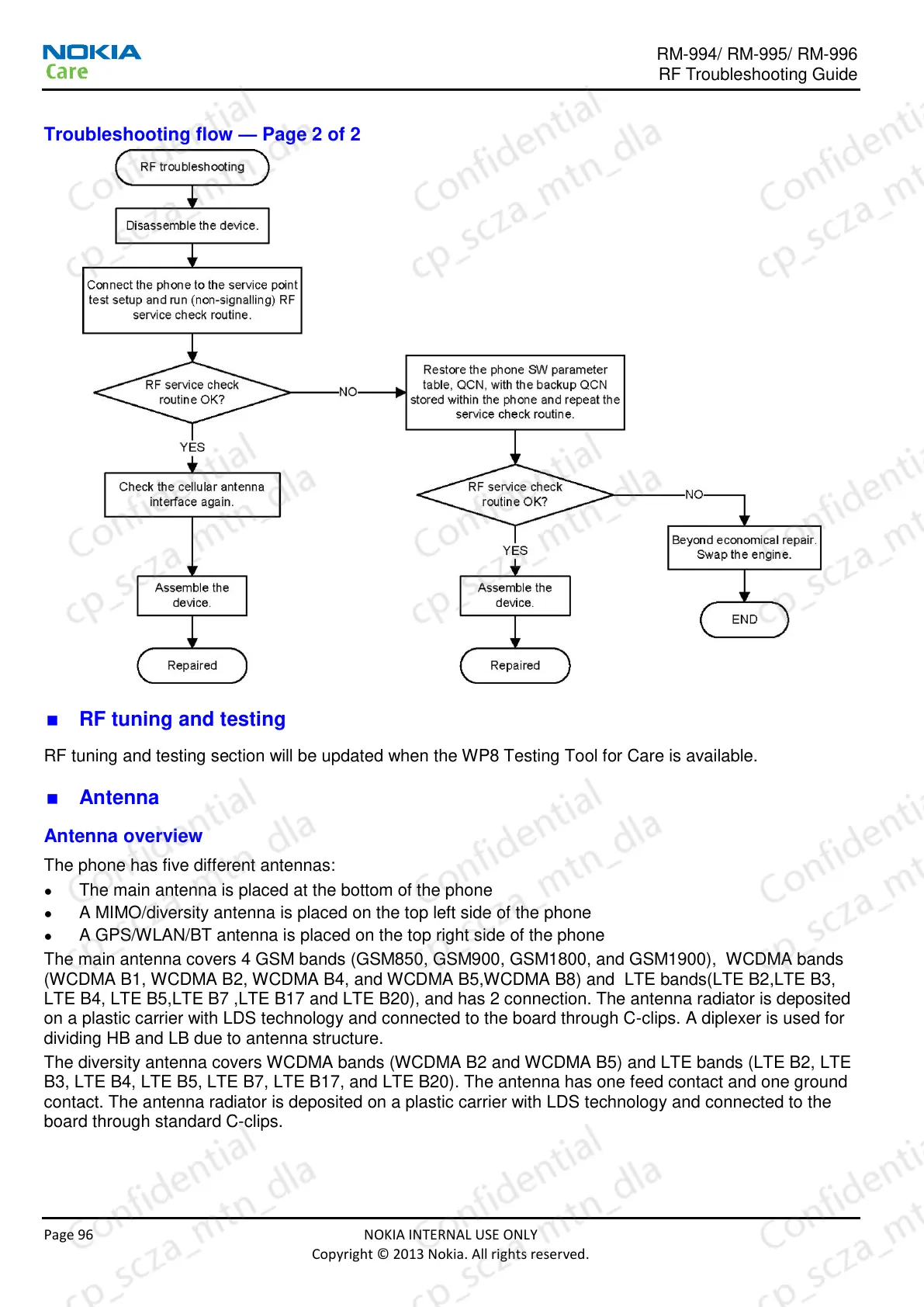

Troubleshooting flow — Page 2 of 2
 RF tuning and testing
RF tuning and testing section will be updated when the WP8 Testing Tool for Care is available.
 Antenna
Antenna overview
The phone has five different antennas:
● The main antenna is placed at the bottom of the phone
● A MIMO/diversity antenna is placed on the top left side of the phone
● A GPS/WLAN/BT antenna is placed on the top right side of the phone
The main antenna covers 4 GSM bands (GSM850, GSM900, GSM1800, and GSM1900), WCDMA bands
(WCDMA B1, WCDMA B2, WCDMA B4, and WCDMA B5,WCDMA B8) and LTE bands(LTE B2,LTE B3,
LTE B4, LTE B5,LTE B7 ,LTE B17 and LTE B20), and has 2 connection. The antenna radiator is deposited
on a plastic carrier with LDS technology and connected to the board through C-clips. A diplexer is used for
dividing HB and LB due to antenna structure.
The diversity antenna covers WCDMA bands (WCDMA B2 and WCDMA B5) and LTE bands (LTE B2, LTE
B3, LTE B4, LTE B5, LTE B7, LTE B17, and LTE B20). The antenna has one feed contact and one ground
contact. The antenna radiator is deposited on a plastic carrier with LDS technology and connected to the
board through standard C-clips.

Nokia Lumia 1320 Specifications

General

Pixel density	245 ppi
Display diagonal	6 \
Touch technology	Multi-touch
Display resolution	1280 x 720 pixels
Native aspect ratio	16:9
Display number of colors	16.78 million colors
Processor cores	2
Processor family	Qualcomm Snapdragon
Processor frequency	1.7 GHz
RAM capacity	1 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB
Internal storage capacity	8 GB
Flash type	LED
White balance	Auto, Cloudy, Daylight, Fluorescent, Incandescent
ISO sensitivity	100, 200, 400, 800, Auto
Front camera type	Single camera
Maximum frame rate	30 fps
Optical sensor size	1/4 \
Video recording modes	1080p
Resolution at capture speed	1920x1080@30fps
Rear camera resolution (numeric)	5 MP
Front camera resolution (numeric)	0.3 MP
4G standard	LTE
2G standards	GSM
3G standards	WCDMA
SIM card type	MicroSIM
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
3G bands supported	850, 900, 2100 MHz
4G bands supported	800, 1800, 2600 MHz
Bluetooth profiles	A2DP, AVRCP, HFP, OPP, PBAP
SIM card capability	-
Security algorithms	EAP-SIM, PEAP, WEP, WPA, WPA2
2G bands (primary SIM)	850, 900, 1800, 1900 MHz
Mobile network generation	4G
USB version	2.0
USB connector type	Micro-USB, Micro-USB B
Headphone connectivity	3.5 mm
Form factor	Bar
Product color	Black
Platform	Windows
Operating system installed	Windows Phone 8
Voice codecs	AMR-NB, AMR-WB, EFR
Audio formats supported	AMR-NB, MP3, WMA
Video formats supported	3G2, 3GP, AVI, M4V, MOV, MP4, WMV
Document formats supported	DOC, PDF, PPT, XLS
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Talk time (2G)	25 h
Talk time (3G)	21 h
Battery capacity	3400 mAh
Standby time (3G)	- h
Browsing time (Wi-Fi)	11.5 h
Continuous audio playback time	98 h
Continuous video playback time	9 h
Cables included	AC, DC

Weight and Dimensions

Depth	9.8 mm
Width	85.9 mm
Height	164.2 mm
Weight	220 g
