RM-994/ RM-995/ RM-996
BB Troubleshooting Guide
Page 46 NOKIA INTERNAL USE ONLY
Copyright © 2013 Nokia. All rights reserved.

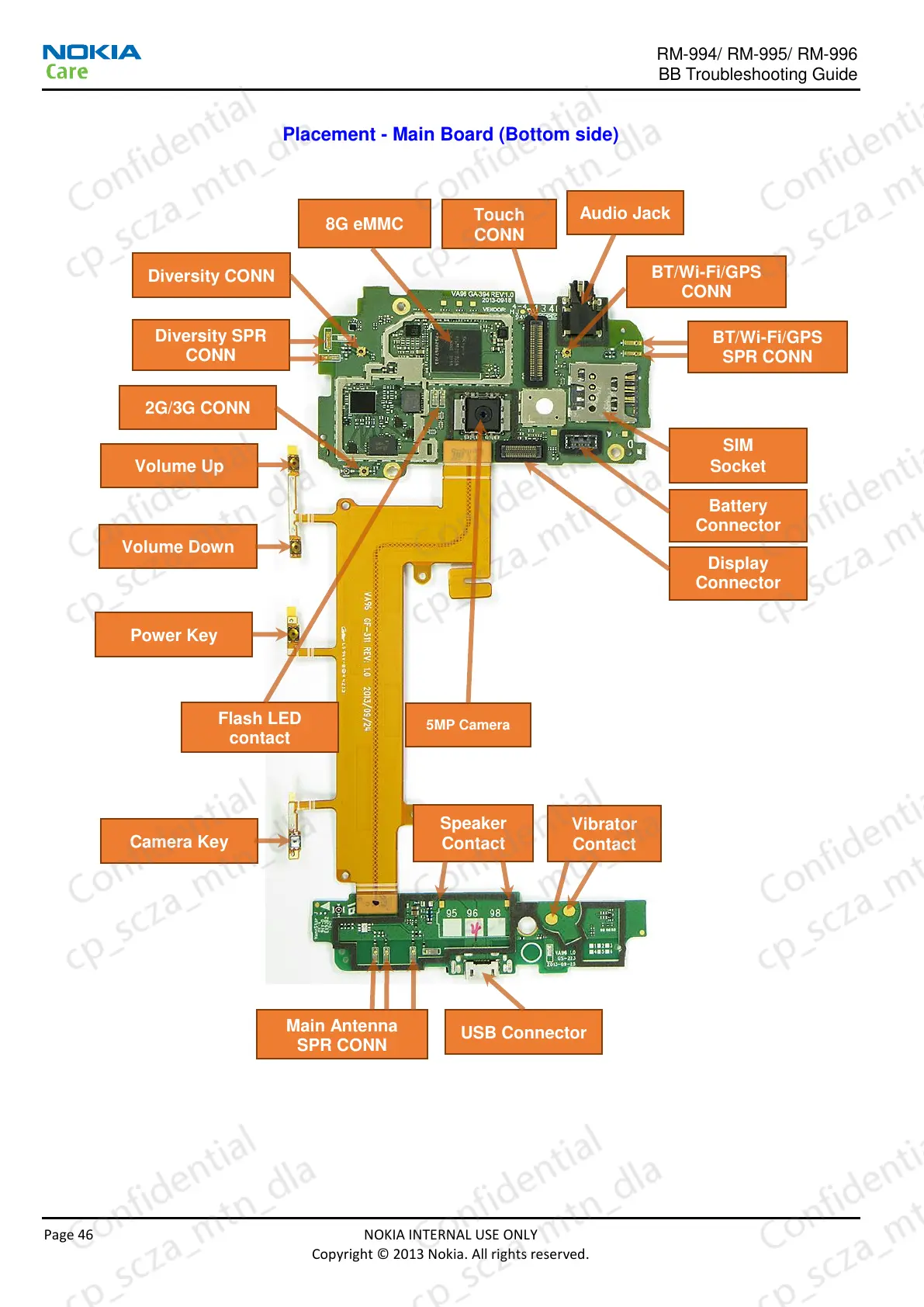

Placement - Main Board (Bottom side)
Diversity CONN
Diversity SPR
CONN
Volume Up
Volume Down
Power Key
Camera Key
Main Antenna
SPR CONN
Speaker
Contact
Vibrator
Contact
USB Connector
Display
Connector
Battery
Connector
SIM
Socket
BT/Wi-Fi/GPS
SPR CONN
BT/Wi-Fi/GPS
CONN
Audio Jack
Touch
CONN
8G eMMC
2G/3G CONN
Flash LED
contact
5MP Camera
