RM-994/ RM-995/ RM-996
System Module
Page 138 NOKIA INTERNAL USE ONLY
Copyright © 2013 Nokia. All rights reserved.

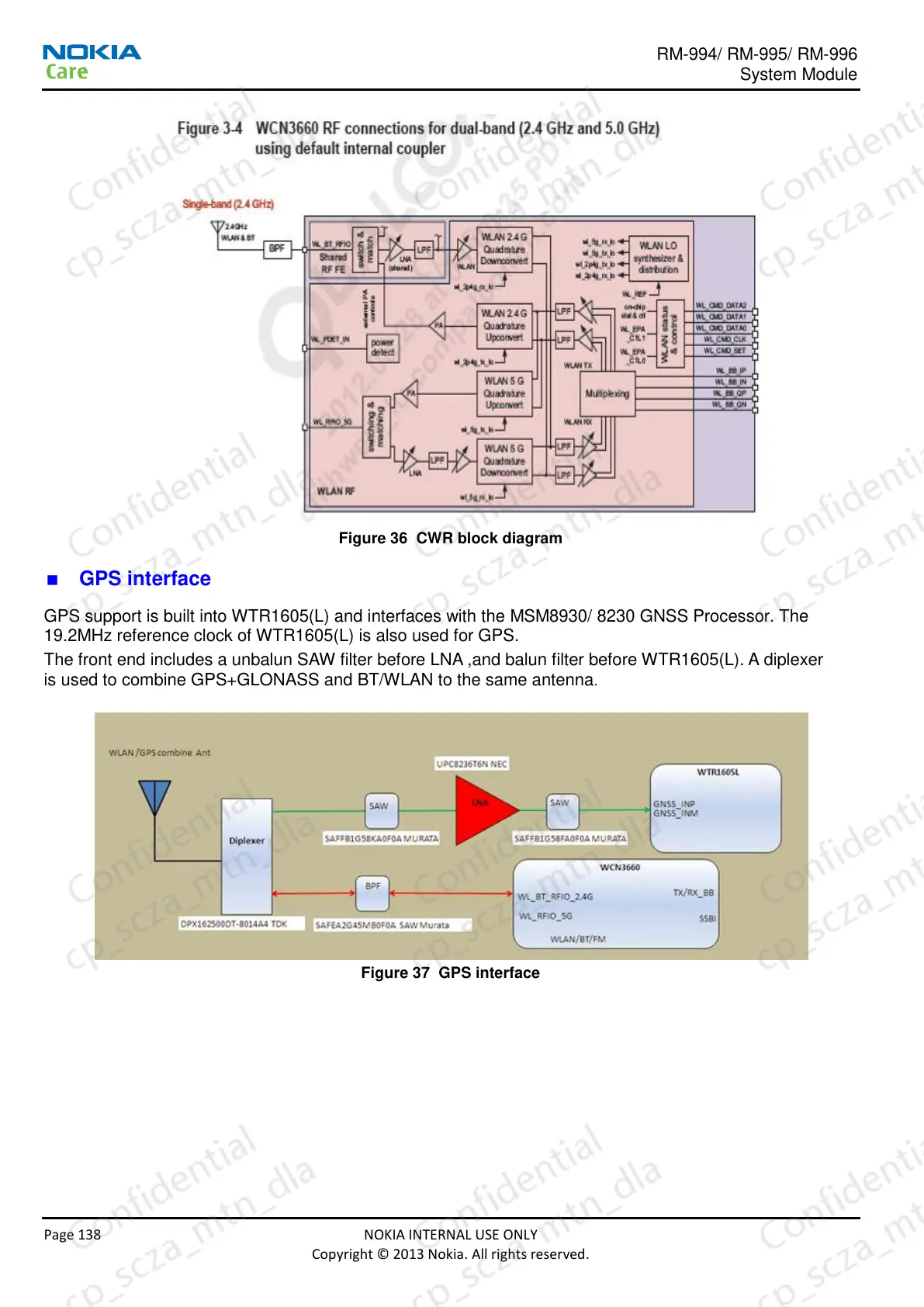

Figure 36 CWR block diagram
 GPS interface
GPS support is built into WTR1605(L) and interfaces with the MSM8930/ 8230 GNSS Processor. The
19.2MHz reference clock of WTR1605(L) is also used for GPS.
The front end includes a unbalun SAW filter before LNA ,and balun filter before WTR1605(L). A diplexer
is used to combine GPS+GLONASS and BT/WLAN to the same antenna.
Figure 37 GPS interface
