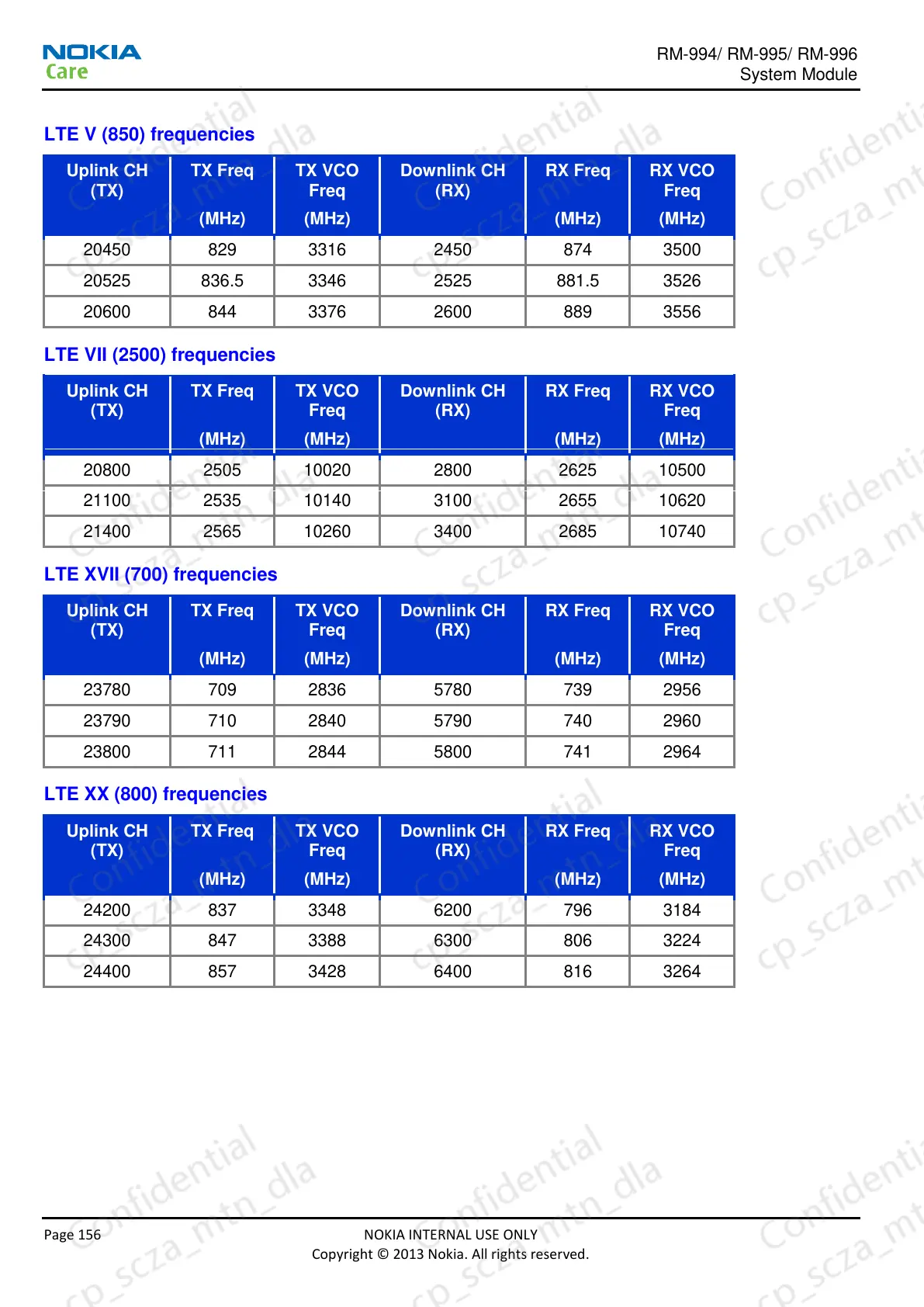

Nokia Lumia 1320 - LTE V (850) Frequencies; LTE VII (2500) Frequencies; LTE XVII (700) Frequencies; LTE XX (800) Frequencies

RM-994/ RM-995/ RM-996
System Module
Page 156 NOKIA INTERNAL USE ONLY
Copyright © 2013 Nokia. All rights reserved.
LTE V (850) frequencies
Uplink CH
(TX)
TX Freq
TX VCO
Freq
Downlink CH
(RX)
RX Freq
RX VCO
Freq
(MHz)
(MHz)
(MHz)
(MHz)
20450
829
3316
2450
874
3500
20525
836.5
3346
2525
881.5
3526
20600
844
3376
2600
889
3556
LTE VII (2500) frequencies
Uplink CH
(TX)
TX Freq
TX VCO
Freq
Downlink CH
(RX)
RX Freq
RX VCO
Freq
(MHz)
(MHz)
(MHz)
(MHz)
20800
2505
10020
2800
2625
10500
21100
2535
10140
3100
2655
10620
21400
2565
10260
3400
2685
10740
LTE XVII (700) frequencies
Uplink CH
(TX)
TX Freq
TX VCO
Freq
Downlink CH
(RX)
RX Freq
RX VCO
Freq
(MHz)
(MHz)
(MHz)
(MHz)
23780
709
2836
5780
739
2956
23790
710
2840
5790
740
2960
23800
711
2844
5800
741
2964
LTE XX (800) frequencies
Uplink CH
(TX)
TX Freq
TX VCO
Freq
Downlink CH
(RX)
RX Freq
RX VCO
Freq
(MHz)
(MHz)
(MHz)
(MHz)
24200
837
3348
6200
796
3184
24300
847
3388
6300
806
3224
24400
857
3428
6400
816
3264
