Nokia Lumia 1320 Service Manual

RM-994/ RM-995/ RM-996
General Information
NOKIA INTERNAL USE ONLY Page 21
Copyright © 2013 Nokia. All rights reserved.

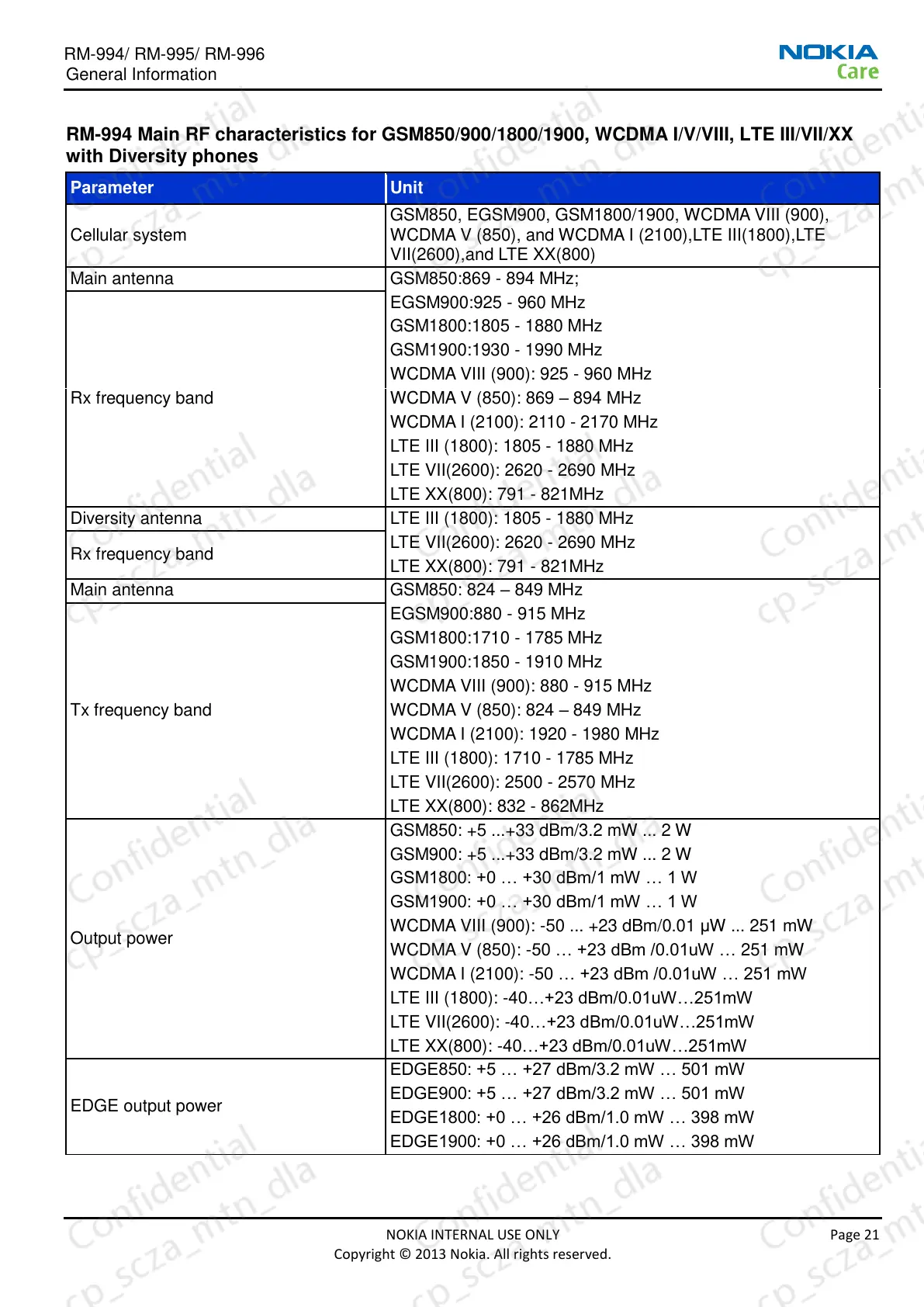

RM-994 Main RF characteristics for GSM850/900/1800/1900, WCDMA I/V/VIII, LTE III/VII/XX
with Diversity phones
Parameter
Unit
Cellular system
GSM850, EGSM900, GSM1800/1900, WCDMA VIII (900),
WCDMA V (850), and WCDMA I (2100),LTE III(1800),LTE
VII(2600),and LTE XX(800)
Main antenna
GSM850:869 - 894 MHz;
Rx frequency band
EGSM900:925 - 960 MHz
GSM1800:1805 - 1880 MHz
GSM1900:1930 - 1990 MHz
WCDMA VIII (900): 925 - 960 MHz
WCDMA V (850): 869 – 894 MHz
WCDMA I (2100): 2110 - 2170 MHz
LTE III (1800): 1805 - 1880 MHz
LTE VII(2600): 2620 - 2690 MHz
LTE XX(800): 791 - 821MHz
Diversity antenna
LTE III (1800): 1805 - 1880 MHz
Rx frequency band
LTE VII(2600): 2620 - 2690 MHz
LTE XX(800): 791 - 821MHz
Main antenna
GSM850: 824 – 849 MHz
Tx frequency band
EGSM900:880 - 915 MHz
GSM1800:1710 - 1785 MHz
GSM1900:1850 - 1910 MHz
WCDMA VIII (900): 880 - 915 MHz
WCDMA V (850): 824 – 849 MHz
WCDMA I (2100): 1920 - 1980 MHz
LTE III (1800): 1710 - 1785 MHz
LTE VII(2600): 2500 - 2570 MHz
LTE XX(800): 832 - 862MHz
Output power
GSM850: +5 ...+33 dBm/3.2 mW ... 2 W
GSM900: +5 ...+33 dBm/3.2 mW ... 2 W
GSM1800: +0 … +30 dBm/1 mW … 1 W
GSM1900: +0 … +30 dBm/1 mW … 1 W
WCDMA VIII (900): -50 ... +23 dBm/0.01 μW ... 251 mW
WCDMA V (850): -50 … +23 dBm /0.01uW … 251 mW
WCDMA I (2100): -50 … +23 dBm /0.01uW … 251 mW
LTE III (1800): -40…+23 dBm/0.01uW…251mW
LTE VII(2600): -40…+23 dBm/0.01uW…251mW
LTE XX(800): -40…+23 dBm/0.01uW…251mW
EDGE output power
EDGE850: +5 … +27 dBm/3.2 mW … 501 mW
EDGE900: +5 … +27 dBm/3.2 mW … 501 mW
EDGE1800: +0 … +26 dBm/1.0 mW … 398 mW
EDGE1900: +0 … +26 dBm/1.0 mW … 398 mW

Nokia Lumia 1320 Specifications

General

Pixel density	245 ppi
Display diagonal	6 \
Touch technology	Multi-touch
Display resolution	1280 x 720 pixels
Native aspect ratio	16:9
Display number of colors	16.78 million colors
Processor cores	2
Processor family	Qualcomm Snapdragon
Processor frequency	1.7 GHz
RAM capacity	1 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB
Internal storage capacity	8 GB
Flash type	LED
White balance	Auto, Cloudy, Daylight, Fluorescent, Incandescent
ISO sensitivity	100, 200, 400, 800, Auto
Front camera type	Single camera
Maximum frame rate	30 fps
Optical sensor size	1/4 \
Video recording modes	1080p
Resolution at capture speed	1920x1080@30fps
Rear camera resolution (numeric)	5 MP
Front camera resolution (numeric)	0.3 MP
4G standard	LTE
2G standards	GSM
3G standards	WCDMA
SIM card type	MicroSIM
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
3G bands supported	850, 900, 2100 MHz
4G bands supported	800, 1800, 2600 MHz
Bluetooth profiles	A2DP, AVRCP, HFP, OPP, PBAP
SIM card capability	-
Security algorithms	EAP-SIM, PEAP, WEP, WPA, WPA2
2G bands (primary SIM)	850, 900, 1800, 1900 MHz
Mobile network generation	4G
USB version	2.0
USB connector type	Micro-USB, Micro-USB B
Headphone connectivity	3.5 mm
Form factor	Bar
Product color	Black
Platform	Windows
Operating system installed	Windows Phone 8
Voice codecs	AMR-NB, AMR-WB, EFR
Audio formats supported	AMR-NB, MP3, WMA
Video formats supported	3G2, 3GP, AVI, M4V, MOV, MP4, WMV
Document formats supported	DOC, PDF, PPT, XLS
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Talk time (2G)	25 h
Talk time (3G)	21 h
Battery capacity	3400 mAh
Standby time (3G)	- h
Browsing time (Wi-Fi)	11.5 h
Continuous audio playback time	98 h
Continuous video playback time	9 h
Cables included	AC, DC

Weight and Dimensions

Depth	9.8 mm
Width	85.9 mm
Height	164.2 mm
Weight	220 g
