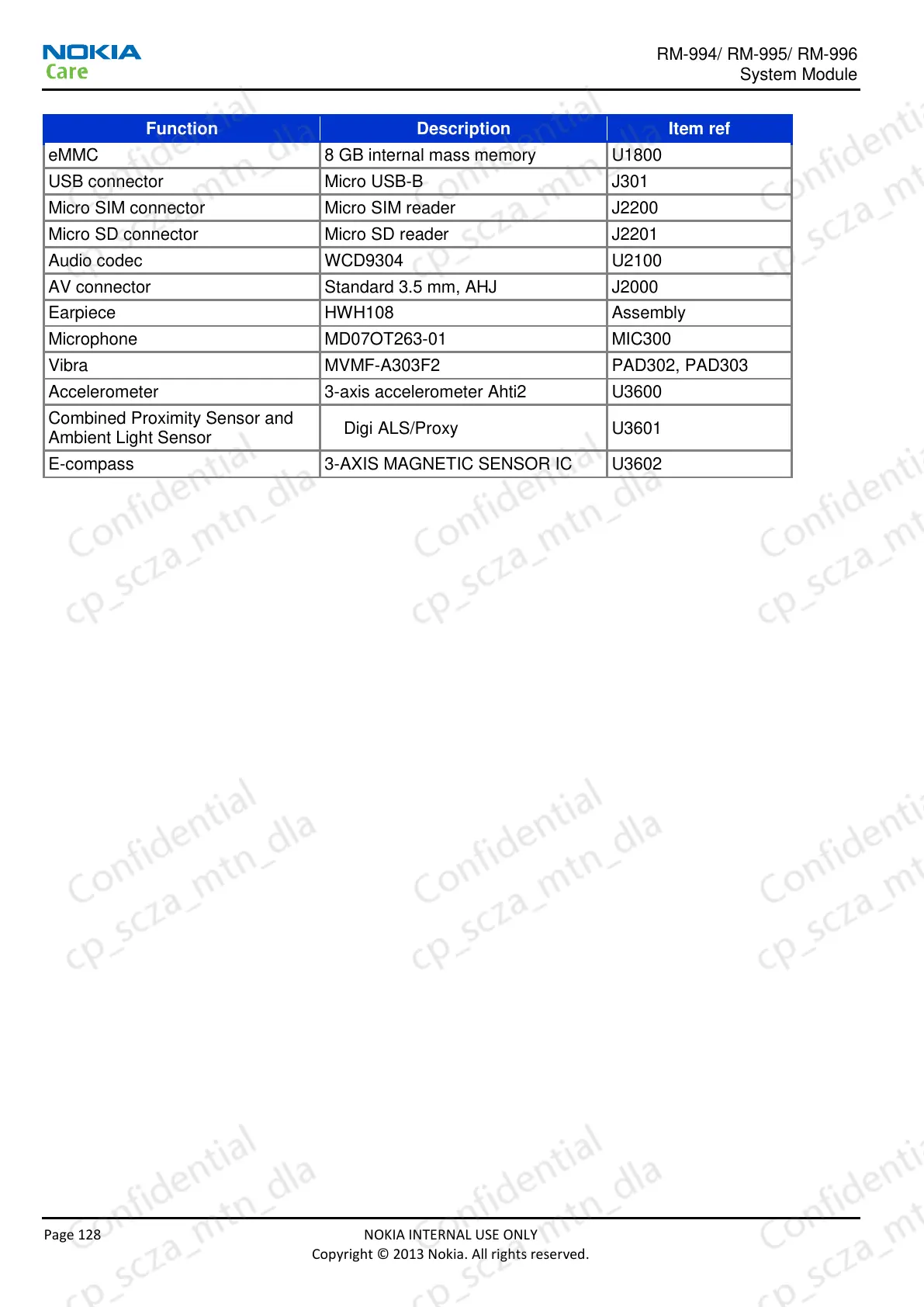

Nokia Lumia 1320 - Page 129

RM-994/ RM-995/ RM-996
System Module
Page 128 NOKIA INTERNAL USE ONLY
Copyright © 2013 Nokia. All rights reserved.
Function
Description
Item ref
eMMC
8 GB internal mass memory
U1800
USB connector
Micro USB-B
J301
Micro SIM connector
Micro SIM reader
J2200
Micro SD connector
Micro SD reader
J2201
Audio codec
WCD9304
U2100
AV connector
Standard 3.5 mm, AHJ
J2000
Earpiece
HWH108
Assembly
Microphone
MD07OT263-01
MIC300
Vibra
MVMF-A303F2
PAD302, PAD303
Accelerometer
3-axis accelerometer Ahti2
U3600
Combined Proximity Sensor and
Ambient Light Sensor
Digi ALS/Proxy
U3601
E-compass
3-AXIS MAGNETIC SENSOR IC
U3602
