Nokia Lumia 1320 Service Manual

RM-994/ RM-995/ RM-996
General Information
Page 18 NOKIA INTERNAL USE ONLY
Copyright © 2013 Nokia. All rights reserved.

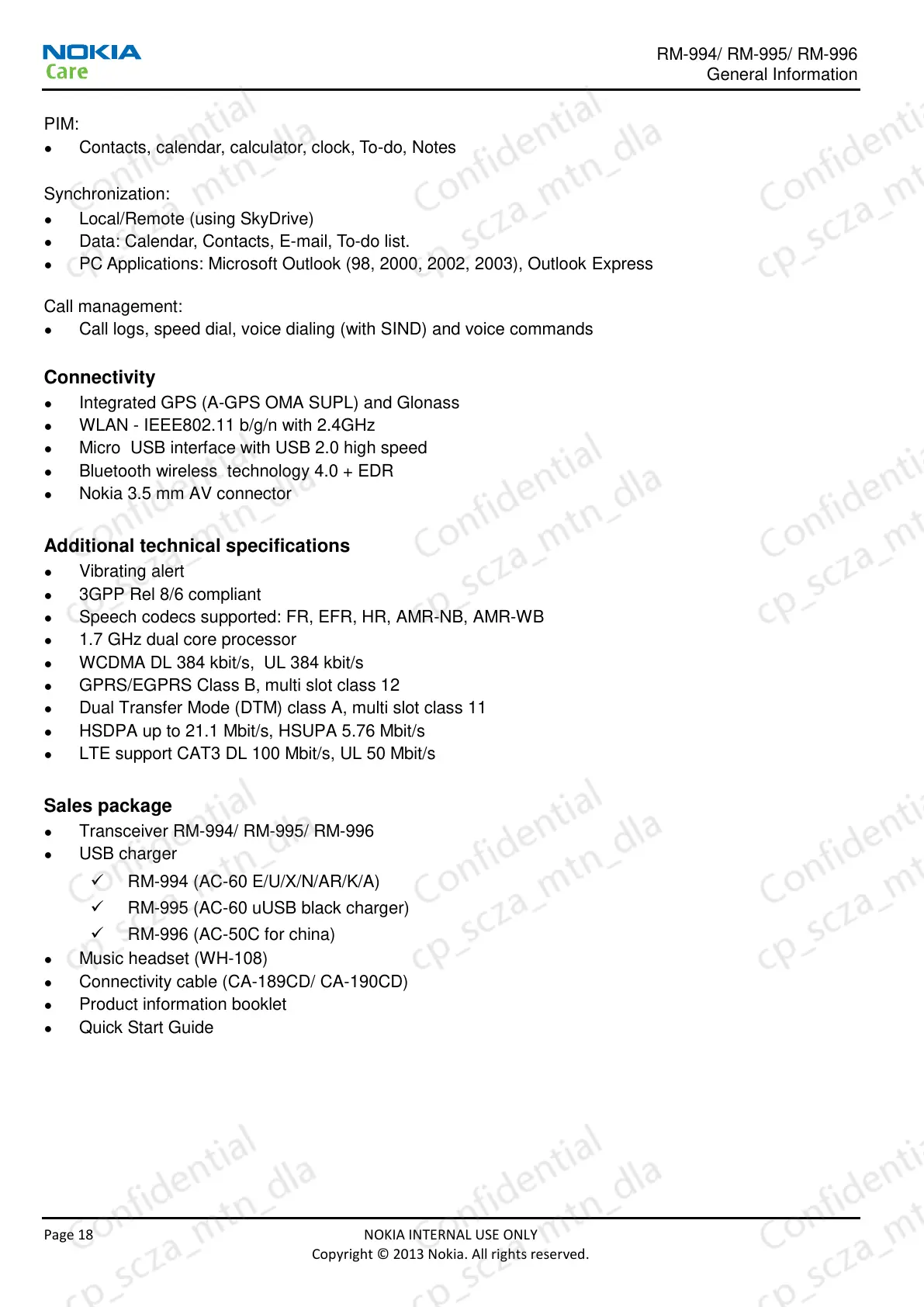

PIM:
● Contacts, calendar, calculator, clock, To-do, Notes
Synchronization:
● Local/Remote (using SkyDrive)
● Data: Calendar, Contacts, E-mail, To-do list.
● PC Applications: Microsoft Outlook (98, 2000, 2002, 2003), Outlook Express
Call management:
● Call logs, speed dial, voice dialing (with SIND) and voice commands
Connectivity
● Integrated GPS (A-GPS OMA SUPL) and Glonass
● WLAN - IEEE802.11 b/g/n with 2.4GHz
● Micro USB interface with USB 2.0 high speed
● Bluetooth wireless technology 4.0 + EDR
● Nokia 3.5 mm AV connector
Additional technical specifications
● Vibrating alert
● 3GPP Rel 8/6 compliant
● Speech codecs supported: FR, EFR, HR, AMR-NB, AMR-WB
● 1.7 GHz dual core processor
● WCDMA DL 384 kbit/s, UL 384 kbit/s
● GPRS/EGPRS Class B, multi slot class 12
● Dual Transfer Mode (DTM) class A, multi slot class 11
● HSDPA up to 21.1 Mbit/s, HSUPA 5.76 Mbit/s
● LTE support CAT3 DL 100 Mbit/s, UL 50 Mbit/s
Sales package
● Transceiver RM-994/ RM-995/ RM-996
● USB charger
 RM-994 (AC-60 E/U/X/N/AR/K/A)
 RM-995 (AC-60 uUSB black charger)
 RM-996 (AC-50C for china)
● Music headset (WH-108)
● Connectivity cable (CA-189CD/ CA-190CD)
● Product information booklet
● Quick Start Guide

Nokia Lumia 1320 Specifications

General

Pixel density	245 ppi
Display diagonal	6 \
Touch technology	Multi-touch
Display resolution	1280 x 720 pixels
Native aspect ratio	16:9
Display number of colors	16.78 million colors
Processor cores	2
Processor family	Qualcomm Snapdragon
Processor frequency	1.7 GHz
RAM capacity	1 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB
Internal storage capacity	8 GB
Flash type	LED
White balance	Auto, Cloudy, Daylight, Fluorescent, Incandescent
ISO sensitivity	100, 200, 400, 800, Auto
Front camera type	Single camera
Maximum frame rate	30 fps
Optical sensor size	1/4 \
Video recording modes	1080p
Resolution at capture speed	1920x1080@30fps
Rear camera resolution (numeric)	5 MP
Front camera resolution (numeric)	0.3 MP
4G standard	LTE
2G standards	GSM
3G standards	WCDMA
SIM card type	MicroSIM
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
3G bands supported	850, 900, 2100 MHz
4G bands supported	800, 1800, 2600 MHz
Bluetooth profiles	A2DP, AVRCP, HFP, OPP, PBAP
SIM card capability	-
Security algorithms	EAP-SIM, PEAP, WEP, WPA, WPA2
2G bands (primary SIM)	850, 900, 1800, 1900 MHz
Mobile network generation	4G
USB version	2.0
USB connector type	Micro-USB, Micro-USB B
Headphone connectivity	3.5 mm
Form factor	Bar
Product color	Black
Platform	Windows
Operating system installed	Windows Phone 8
Voice codecs	AMR-NB, AMR-WB, EFR
Audio formats supported	AMR-NB, MP3, WMA
Video formats supported	3G2, 3GP, AVI, M4V, MOV, MP4, WMV
Document formats supported	DOC, PDF, PPT, XLS
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Talk time (2G)	25 h
Talk time (3G)	21 h
Battery capacity	3400 mAh
Standby time (3G)	- h
Browsing time (Wi-Fi)	11.5 h
Continuous audio playback time	98 h
Continuous video playback time	9 h
Cables included	AC, DC

Weight and Dimensions

Depth	9.8 mm
Width	85.9 mm
Height	164.2 mm
Weight	220 g
