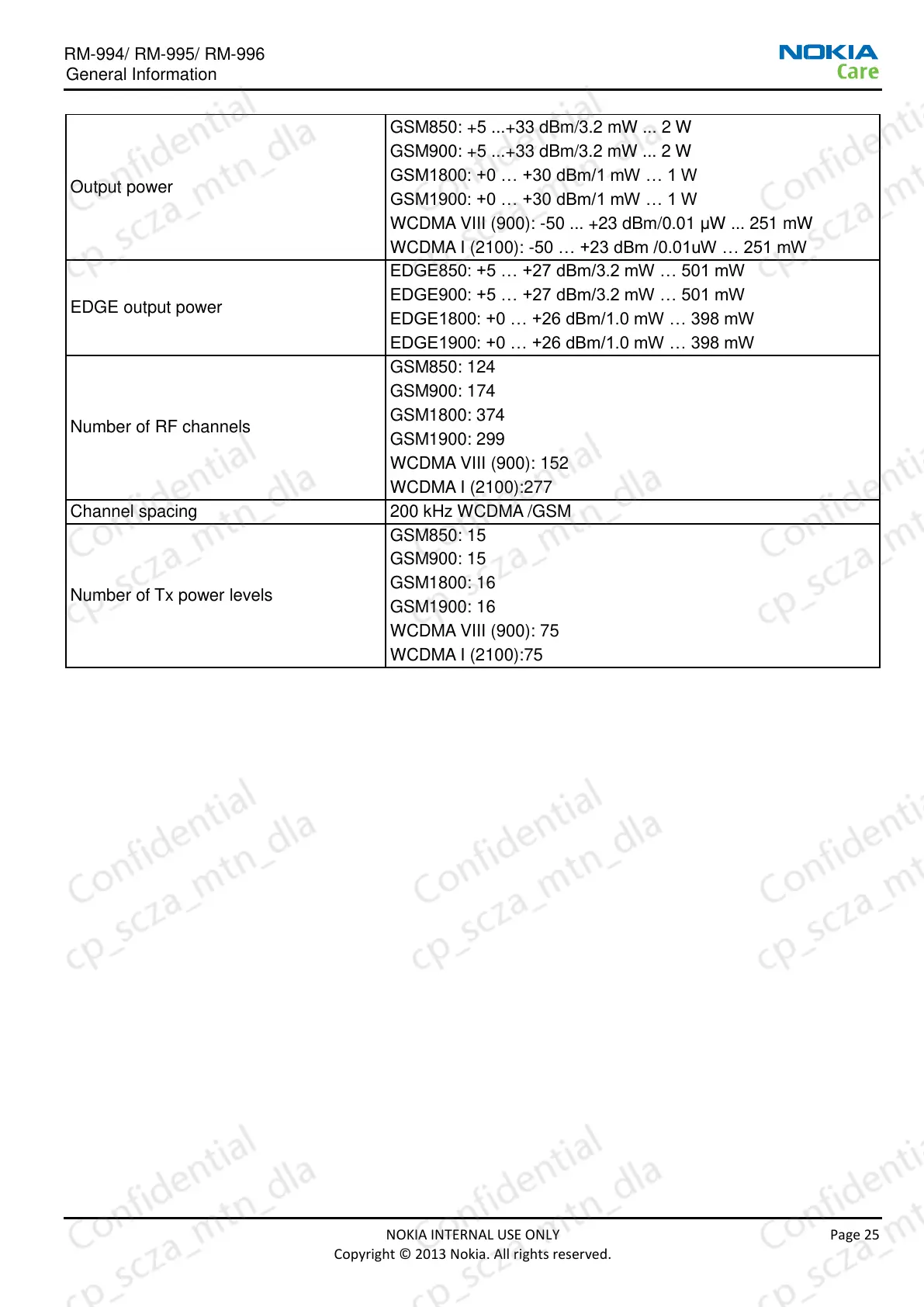

Nokia Lumia 1320 - Page 26

RM-994/ RM-995/ RM-996
General Information
NOKIA INTERNAL USE ONLY Page 25
Copyright © 2013 Nokia. All rights reserved.
Output power
GSM850: +5 ...+33 dBm/3.2 mW ... 2 W
GSM900: +5 ...+33 dBm/3.2 mW ... 2 W
GSM1800: +0 … +30 dBm/1 mW … 1 W
GSM1900: +0 … +30 dBm/1 mW … 1 W
WCDMA VIII (900): -50 ... +23 dBm/0.01 μW ... 251 mW
WCDMA I (2100): -50 … +23 dBm /0.01uW … 251 mW
EDGE output power
EDGE850: +5 … +27 dBm/3.2 mW … 501 mW
EDGE900: +5 … +27 dBm/3.2 mW … 501 mW
EDGE1800: +0 … +26 dBm/1.0 mW … 398 mW
EDGE1900: +0 … +26 dBm/1.0 mW … 398 mW
Number of RF channels
GSM850: 124
GSM900: 174
GSM1800: 374
GSM1900: 299
WCDMA VIII (900): 152
WCDMA I (2100):277
Channel spacing
200 kHz WCDMA /GSM
Number of Tx power levels
GSM850: 15
GSM900: 15
GSM1800: 16
GSM1900: 16
WCDMA VIII (900): 75
WCDMA I (2100):75
