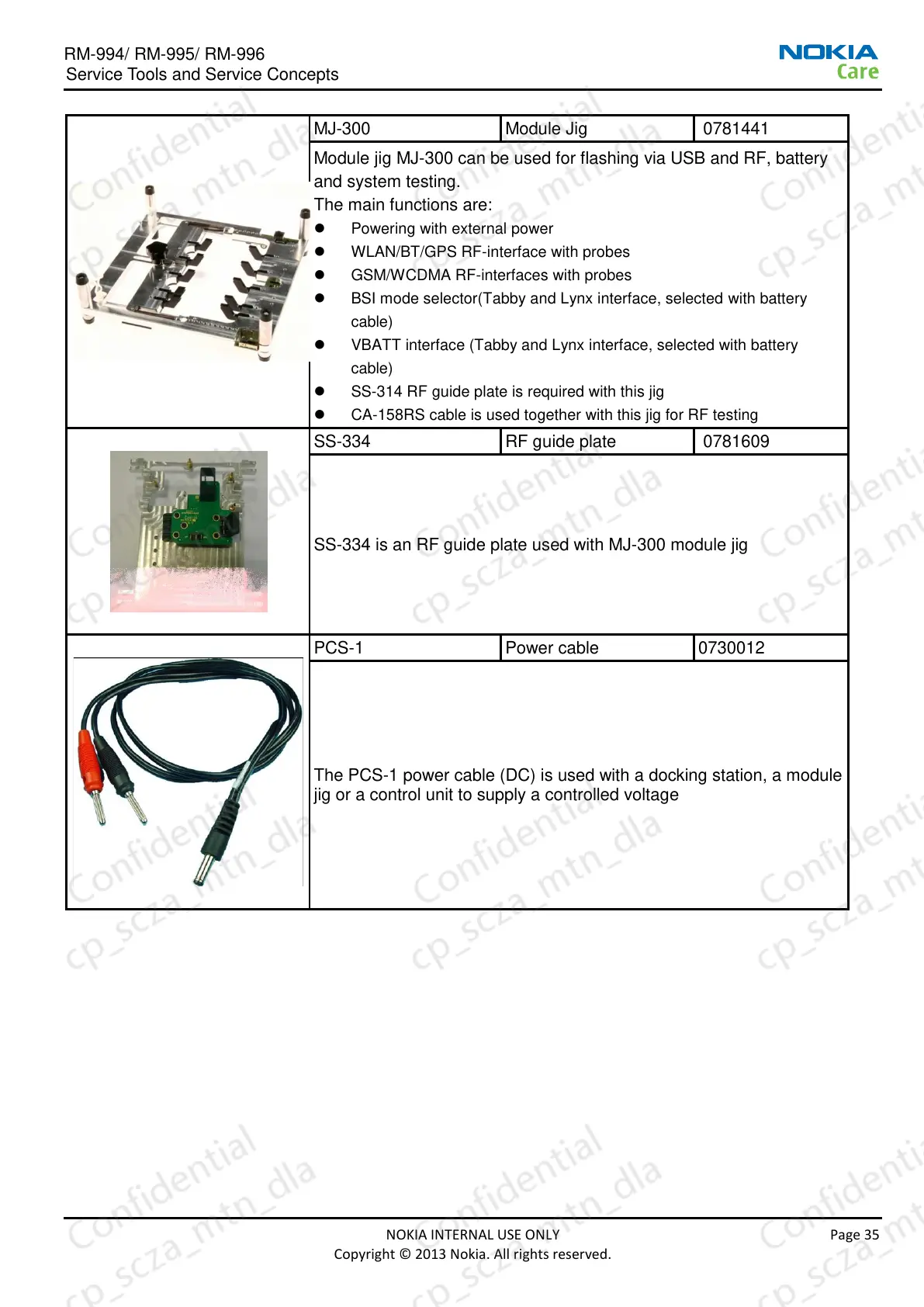

RM-994/ RM-995/ RM-996
Service Tools and Service Concepts
NOKIA INTERNAL USE ONLY Page 35
Copyright © 2013 Nokia. All rights reserved.
MJ-300
Module Jig
0781441
Module jig MJ-300 can be used for flashing via USB and RF, battery
and system testing.
The main functions are:
 Powering with external power
 WLAN/BT/GPS RF-interface with probes
 GSM/WCDMA RF-interfaces with probes
 BSI mode selector(Tabby and Lynx interface, selected with battery
cable)
 VBATT interface (Tabby and Lynx interface, selected with battery
cable)
 SS-314 RF guide plate is required with this jig
 CA-158RS cable is used together with this jig for RF testing
SS-334
RF guide plate
0781609
SS-334 is an RF guide plate used with MJ-300 module jig
PCS-1
Power cable
0730012
The PCS-1 power cable (DC) is used with a docking station, a module
jig or a control unit to supply a controlled voltage
