4
Hardware description
The nRF5340 DK (PCA10095) features an onboard programming and debugging solution.
In addition to radio communication, the SoC can communicate with a computer through USB and two
virtual serial ports provided by the interface MCU.
4.1 Hardware drawings

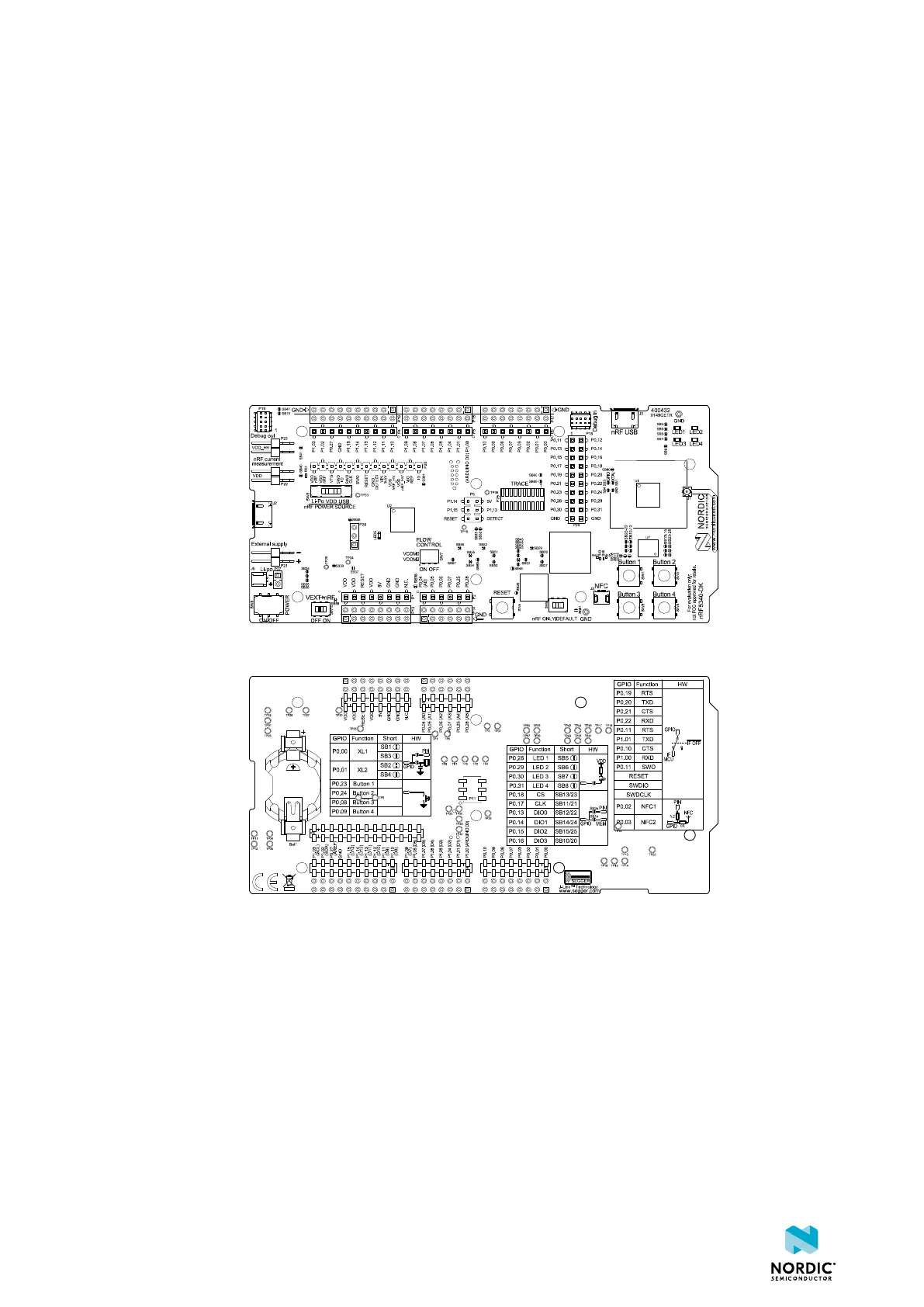

nRF5340 DK hardware drawings show both sides of the PCA10095.
Figure 3: nRF5340 DK front view
Figure 4: nRF5340 DK back view
4.2 Block diagram
The block diagram illustrates the nRF5340 DK functional architecture.
4406_638
11
