Power On the System
After the system is fully installed, including the dispensing system components, switch on the system to verify the
installation.
1. Make sure the following installation tasks are complete:
• All applicable system components are installed (refer to “Installation” on page14).
• The input / output safety plug is installed (if applicable).
• The Teach Pendant cable is connected to the Teach Pendant port on the front of the robot.
• The EMERGENCY STOP button on the front panel of the robot is not depressed.
2. Switch on the robot.
The robot moves to the factory-set home position and the system is
ready.
3. Enable the dispensing system, including the valve controller. Refer to
the dispensing equipment manuals as needed.
4. Press F1 > TEACH/RUN to enter the Teach Mode.
NOTE: The Teach Pendant cable should already be connected to the
Teach Pendant port on the front of the robot.
5. Refer to the following sections to set up the system and create
programs for your applications:
• “Concepts” on page18
• “Overview of the Teach Pendant” on page20
• “Setup” on page32
• “Programming” on page44

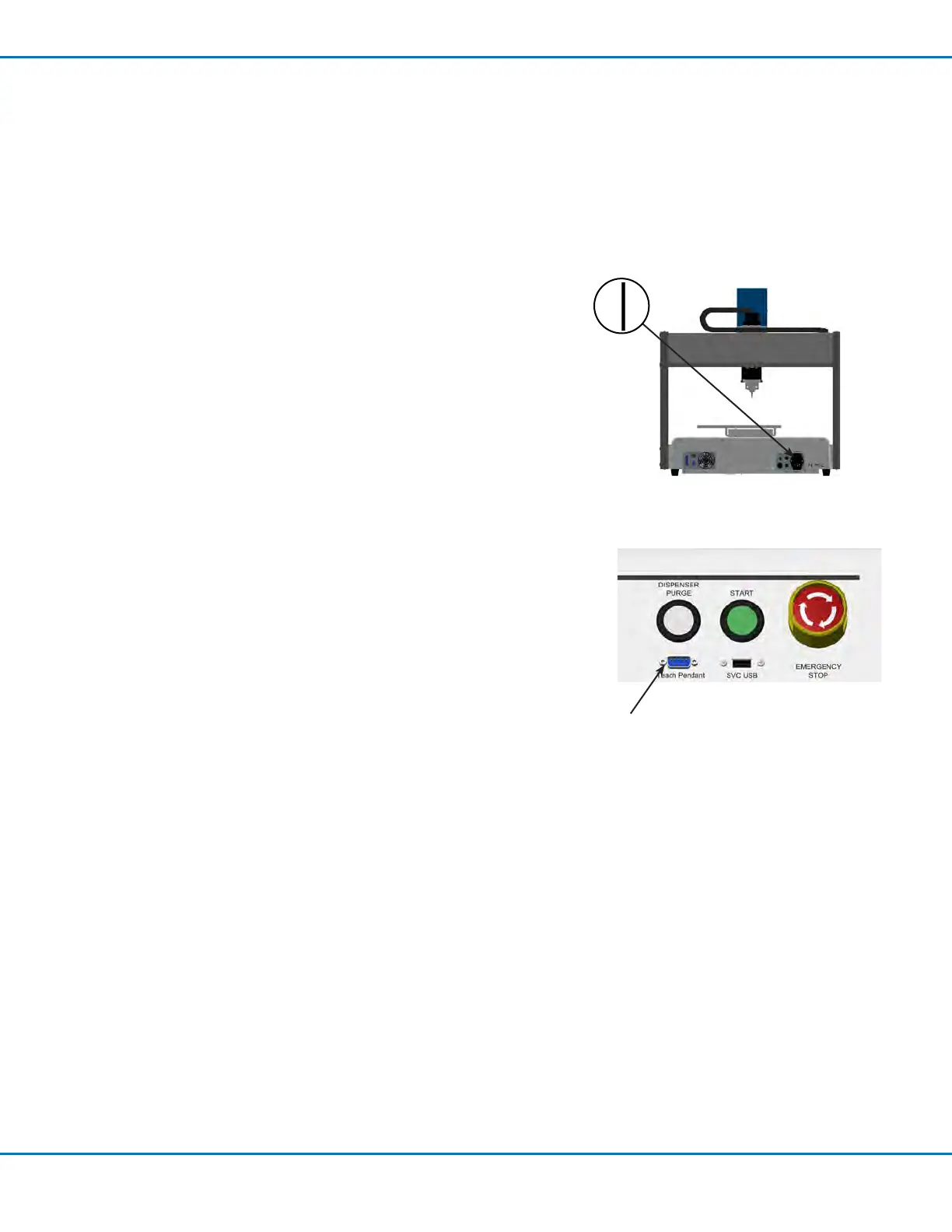

Teach Pendant port
