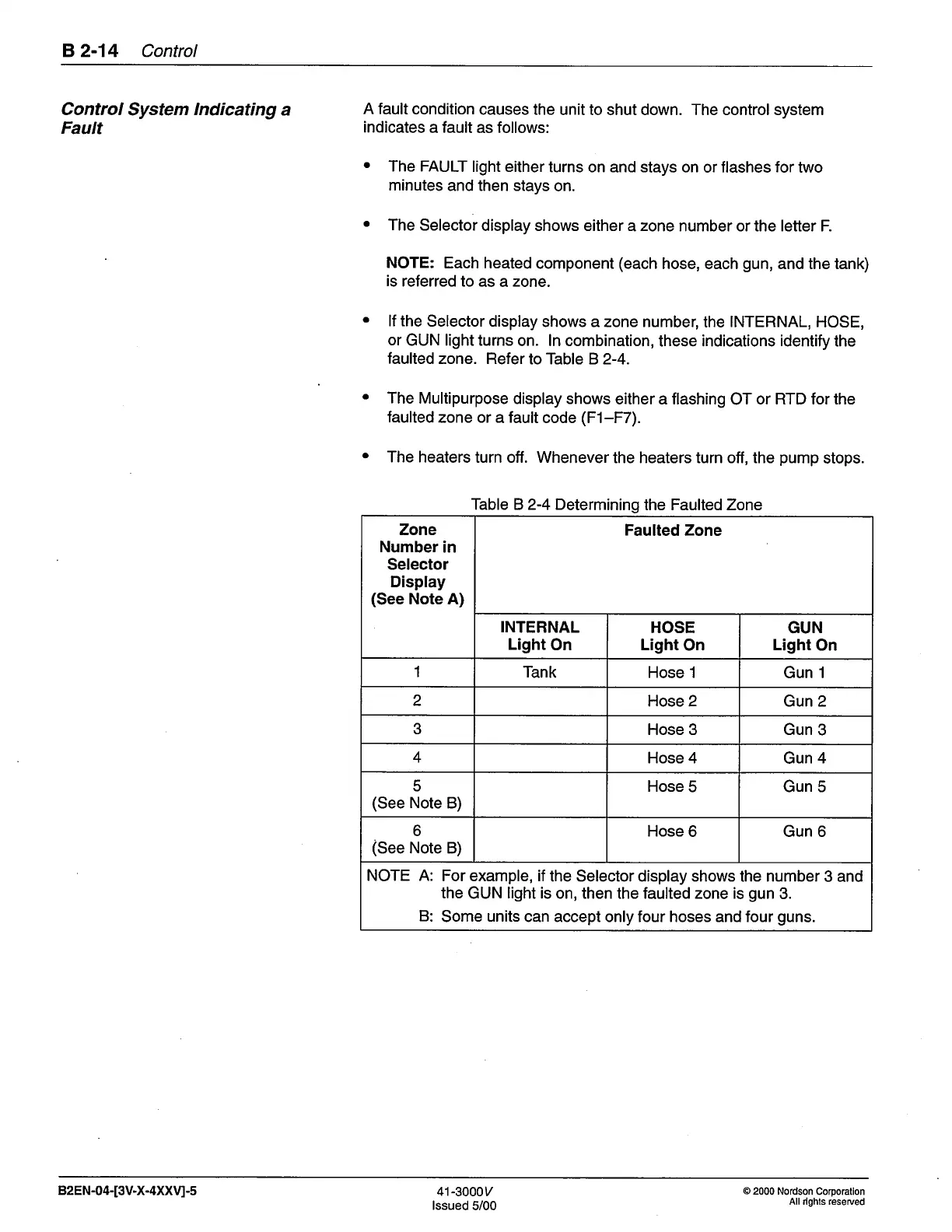

Nordson 3100V Series Customer Product Manual

B 2-'14 Control
Control
System
lndicating
a
Fault
A fault
condition
causes the
unit to shut down. The control system
indicates
a fault as follows:
The FAUIT
light either
turns on
and
stays
on or flashes
for
two
minutes
and then stays
on.
The
Selector
display shows either
a
zone
number or the letter F.
NOTE:
Each heated
component
(each
hose, each
gun,
and the tank)
is
referred to as a zone.
lf the
Selector display
shows a zone number,
the
INTERNAL,
HOSE,
or
GUN light turns
on. ln combination,
these indications
identify
the
faulted
zone. Refer
to Table B 2-4.
The
Multipurpose
display shows
either a flashing
OT
or RTD for the
faulted
zone or
a
fault
code
(F1-F7).
a
a
a
a
a
The heaters
turn off. Whenever
the heaters turn off, the
pump
stops.
Table B 2-4 Determining
the Faulted Zone
Zone
Number
in
Selector
Display
(See
Note A)
Faulted
Zone
INTERNAL
Light
On
HOSE
Light
On
GUN
Light
On
1
Tank
Hose 1
Gun 1
2
Hose 2 Gun 2
3
Hose 3 Gun
3
4
Hose 4
Gun
4
5
(See
Note
B)
Hose 5 Gun 5
6
(See
Note B)
Hose
6
Gun 6
NOTE A:
For example, if
the Selector display shows
the
number
3 and
the
GUN
light
is on, then the faulted zone is
gun
3.
B:
Some
units
can accept only four hoses and four
guns.
82EN-04-[3V-X-4XXVI-s
41-3000y
lssued
5/00
o
2000 Nordson
Corporatlon
All rights reserved
