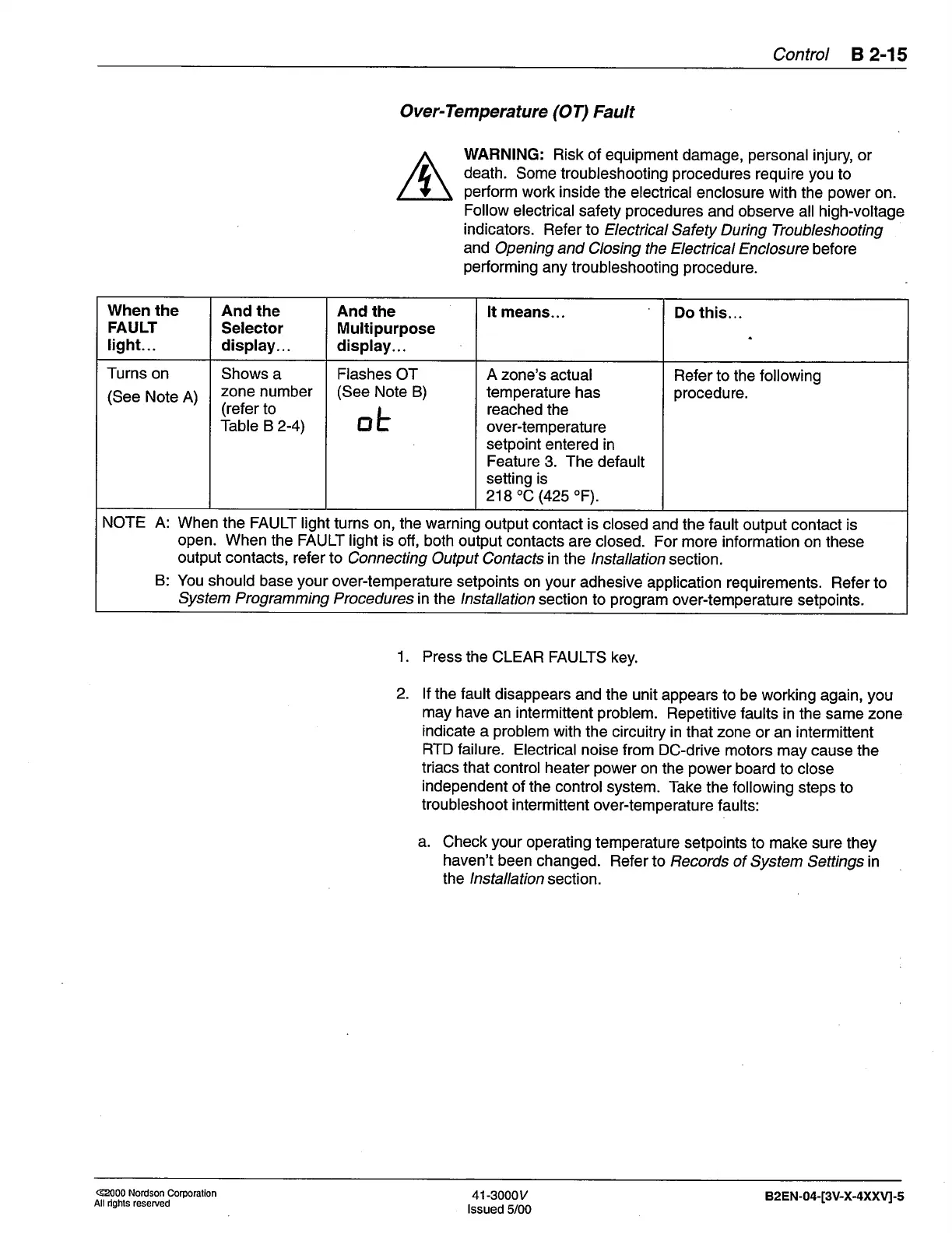

Nordson 3100V Series Customer Product Manual

Control
B 2-15
Over-Tem
perature
(OT)
Fau lt
WARNING:
Risk
of equipment
damage,
personal
injury
or
death.
Some troubleshooting
procedures
require
you
to
perform
work inside
the electrical
enclosure with the
power
on.
Follow
electrical
safety
procedures
and observe
all
high-voltage
indicators.
Refer to Electrical
Safety
During
Troubleshooting
and
Opening and Closing
the Electrical Enclosure
before
performing
any troubleshooting
procedure.
1. Press
the
CLEAR FAULTS key.
2. lf
the fault
disappears
and the unit
appears to be working
again,
you
may
have an intermittent
problem.
Repetitive faults
in the same zone
indicate
a
problem
with
the circuitry
in that zone
or an intermittent
RTD failure.
Electrical
noise from DC-drive
motors may cause
the
triacs that
control heater
power
on the
power
board
to close
independent
of the control
system. Take
the following
steps to
troubleshoot
i ntermittent
over-temperatu re faults:
a.
Check
your
operating
temperature
setpoints
to make sure they
haven't been
changed.
Refer to Records
of
System Setlings
in
lhe I nstal lation
section.
When
the
FAULT
light...
And the
Selector
display..
And
the
Multipurpose
display...
It means...
Do this
Turns on
(See
Note
A)
Shows
a
zone
number
(refer
to
Table B 2-4)
Flashes
OT
(See
Note B)
trh
A zone's
actual
temperature
has
reached
the
over-temperature
setpoint
entered in
Feature
3.
The
default
setting is
218
oC
(425"F).
Refer
to the following
procedure.
NOTE A: When
the FAULT light
turns on, the warning
output
contact is closed
and the fault
output contact is
open. When
the FAULT light
is off, both output
contacts
are closed. For
more information
on these
output contacts,
refer to
Connecting Output
Contactsinlhe lnstallafion
section.
B:
You should
base
your
over-temperature
setpoints on
your
adhesive
application requirements.
Refer to
System Programming
Proceduresinlhe
lnstallation
section
to
program
over-temperature setpoints.
@000 Nordson
Corporalion
All rights reserued
41-3000y
lssued S/fi)
82EN-04-[3V-X-4XXVI-5
