Nordson 3100V Series Customer Product Manual

B 2-4O Control
Control Assembly Removal
@ontd.)
WARNING:
Risk of equipment
damage or
personal
injury.
Support the control-end frame
before disconnecting the
support
strap
or
removing
the hinge
pins.
7.
Support the control-end frame
and disconnect the support
strap.
8. See Figure B 2-12.
Cut the
push
nuts from
the hinge
pins
and
discard
both the nuts
and
pins.
Remove the control assembly.
B
41300924

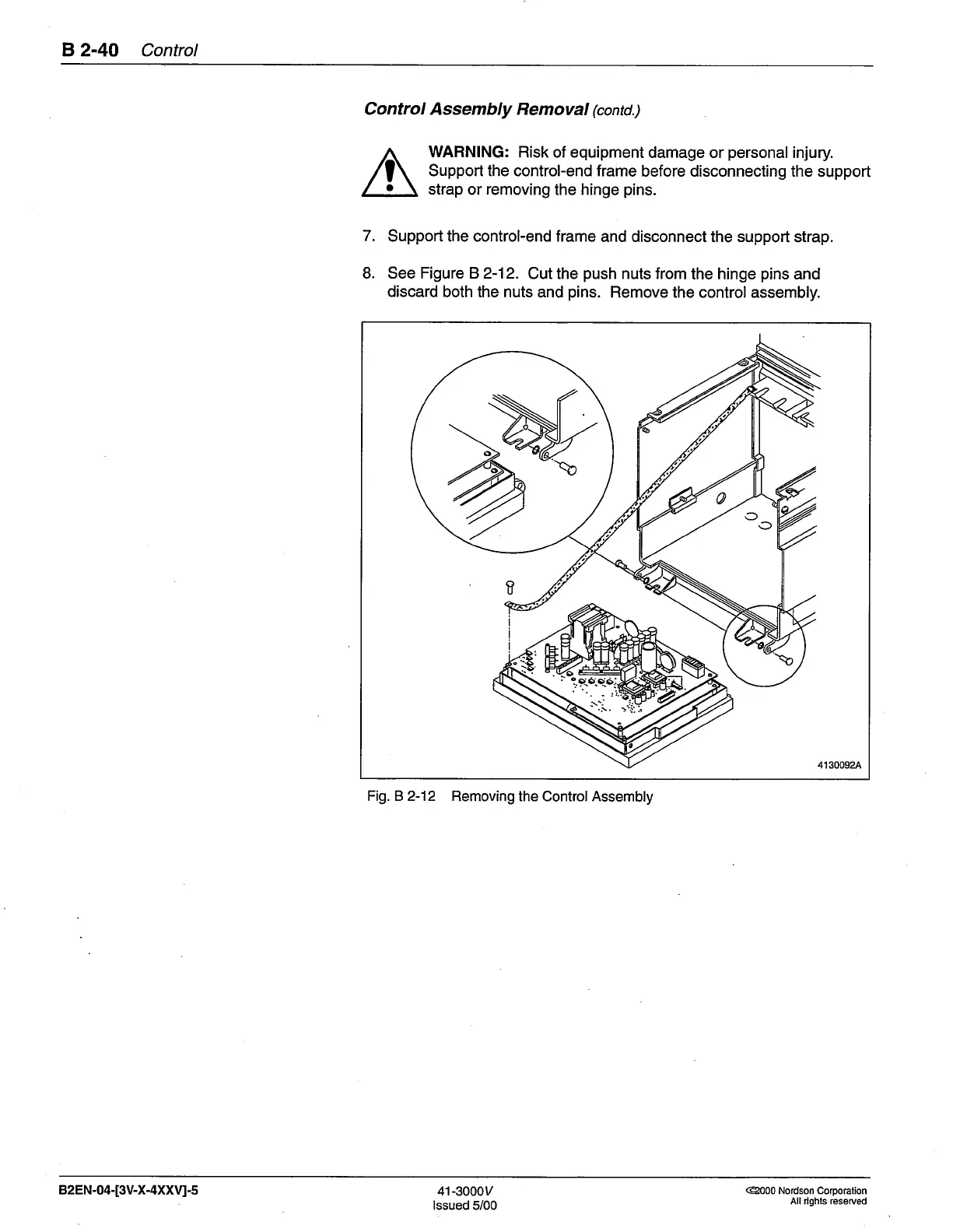

Fig. B 2-12
Removing the Control Assembly
82EN-04-[3V-X4XXVI-s
41-3000v
lssued 5/00
@000 Nordson Corporation
All riqhts reserved
