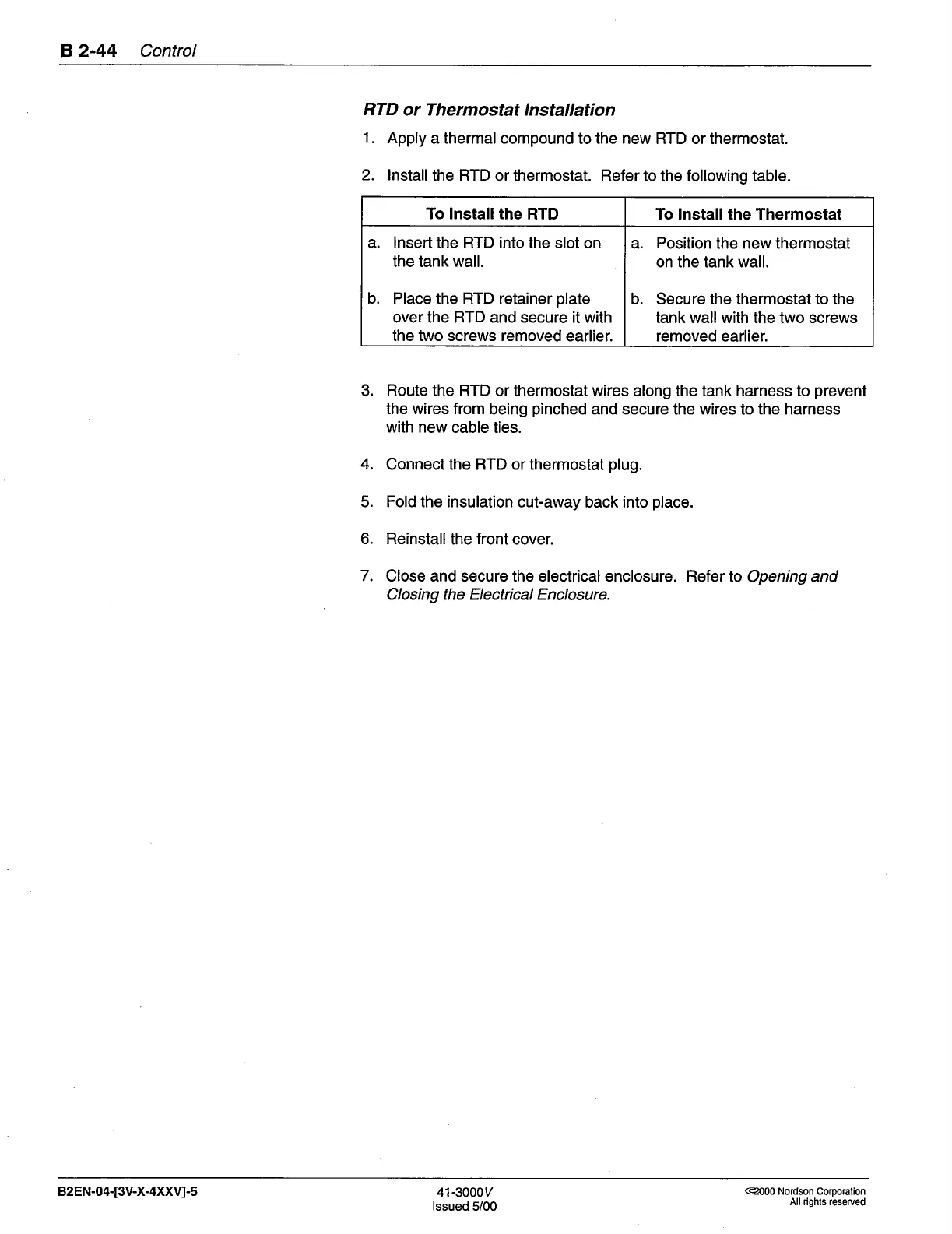

B
2-44 Control
RTD
or Thermostat lnstallation
1. Apply
a thermal compound
to the new FITD or thermostat.
2. lnstall
the RTD
or thermostat. Refer to the following table.
3. Route the RTD
or thermostat wires
along the tank harness
to
prevent
the wires from
being
pinched
and secure
the
wires
to
the harness
with new
cable ties.
4.
Connect the RTD or thermostat
plug.
5. Fold the insulation
cut-away back into
place.
6. Reinstall the front cover.
7.
Close and secure the electrical enclosure.
Refer to Opening and
Closing the Electrical Enclosure.
To lnstallthe
RTD To lnstall the Thermostat
a. lnsert
the RTD into the slot on
the tank wall.
b. Place
the RTD retainer
plate
over the RTD and secure it with
the two screws removed
earlier.
a.
Position
the new thermostat
on the tank wall.
b. Secure the thermostat to the
tank wall with the two screws
removed
earlier.
82EN-04-[3V-X-4XXVJ-5
41-3000v
lssued 5/00
@000 Nordson Corporation
All rights reserved
