Control
B 2-43
To Remove the
RTD To Remove the Thermostat
a.
Flemove
the two screws that
attach
the
RTD
retainer
plate
to
the tank and remove the
plate.
Save
the screws
and the
plate.
b. Pull the RTD out
of the slot in
the
tank
wall.
c. Discard the RTD.
a. Remove the two screws that
attach the thermostat to the
tank.
Save
the screws.
b. Remove the thermostat
and
protective
rubber
boot.
c. Discard
the thermostat.
7.
Remove the RTD or thermostat
from the tank. Refer to the following
table.
\s
41309294

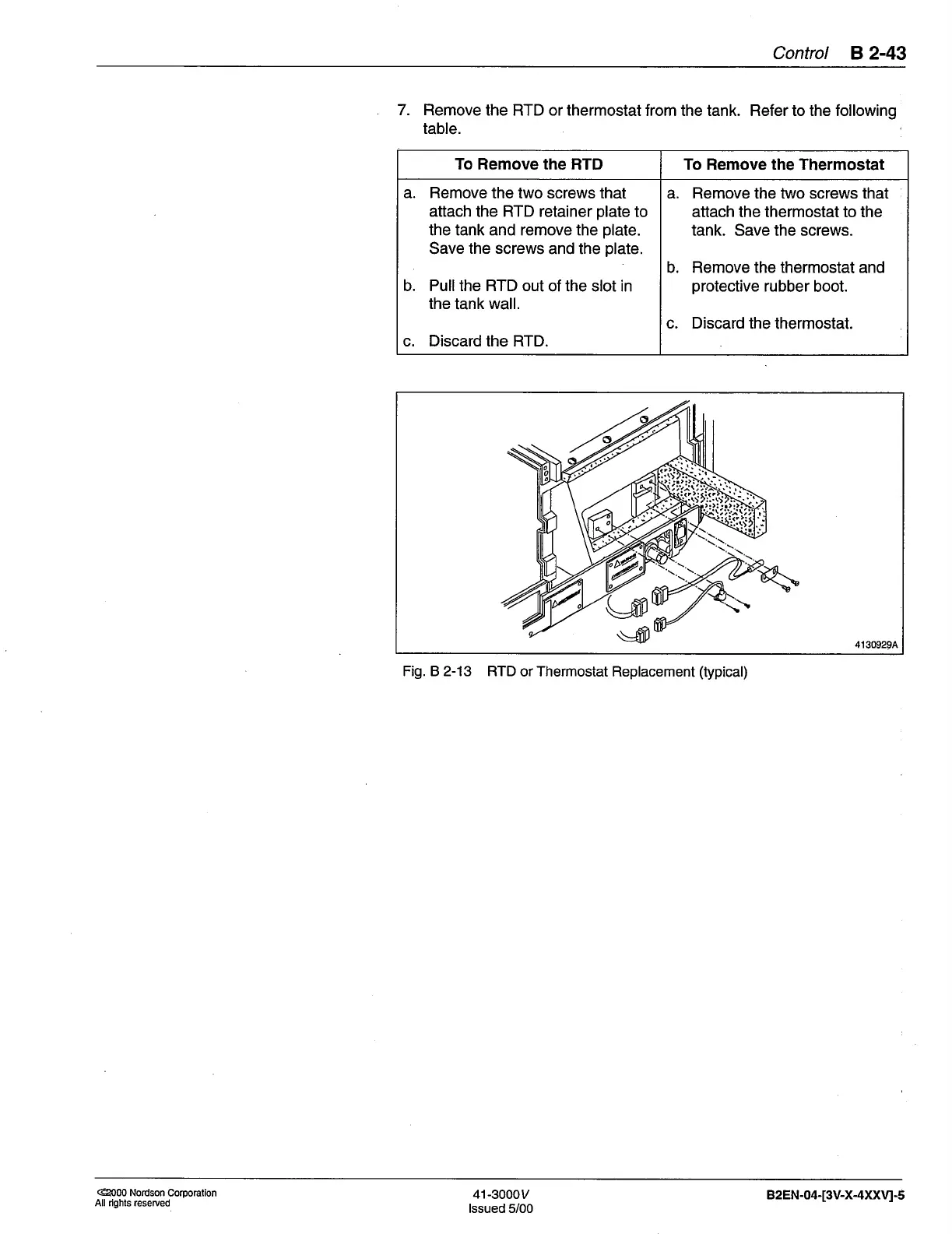

Fig. B 2-13 RTD
orThermostat Replacement
(typical)
e000 Nodson
Corporalion
All rights reserved
41-3000y
lssued 5/00
82 EN-04-[3V-X-4XXVI-5
